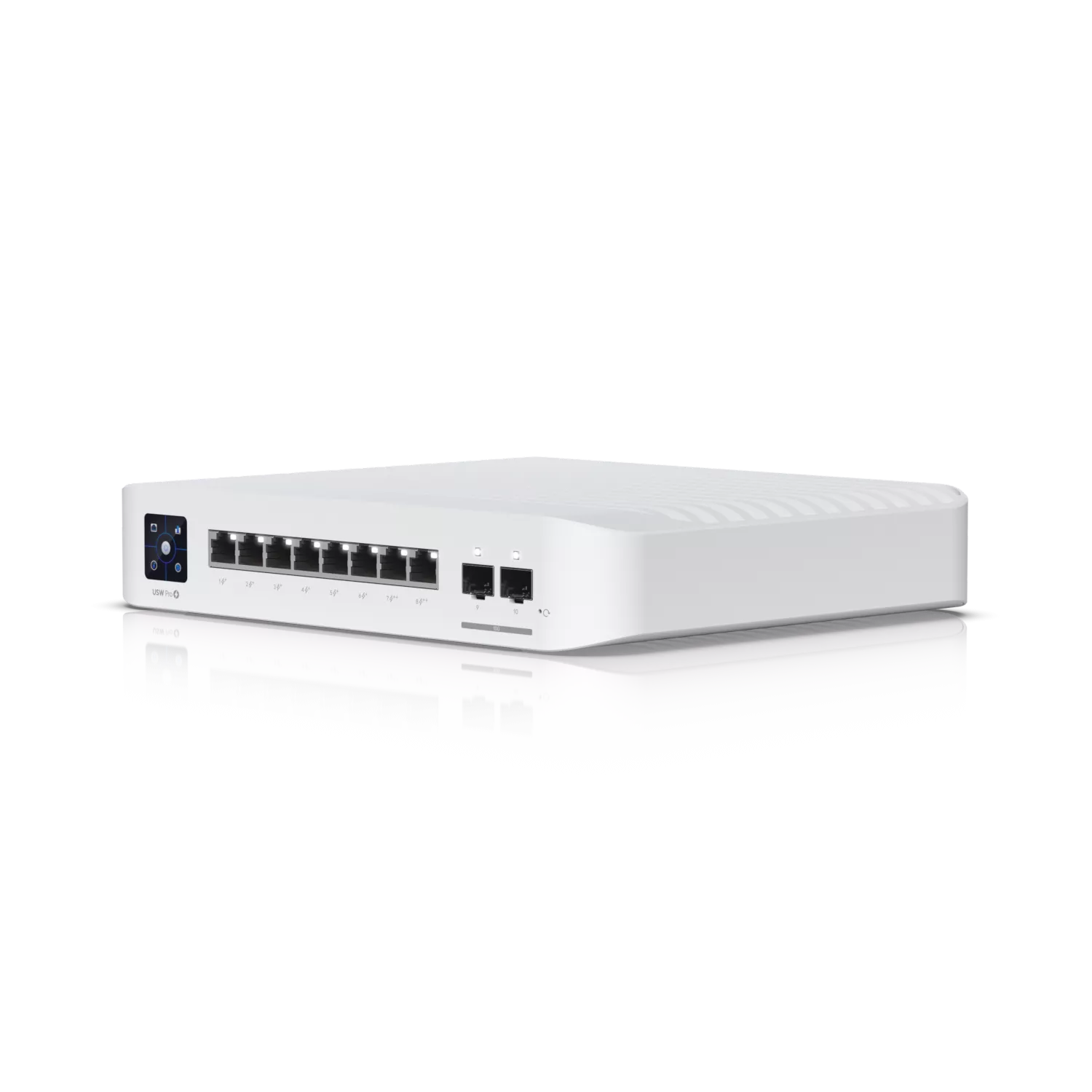

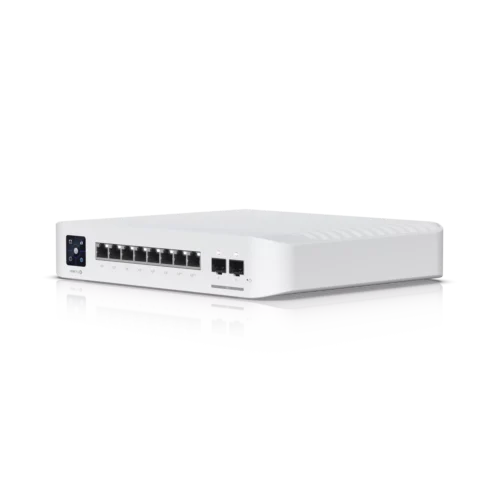

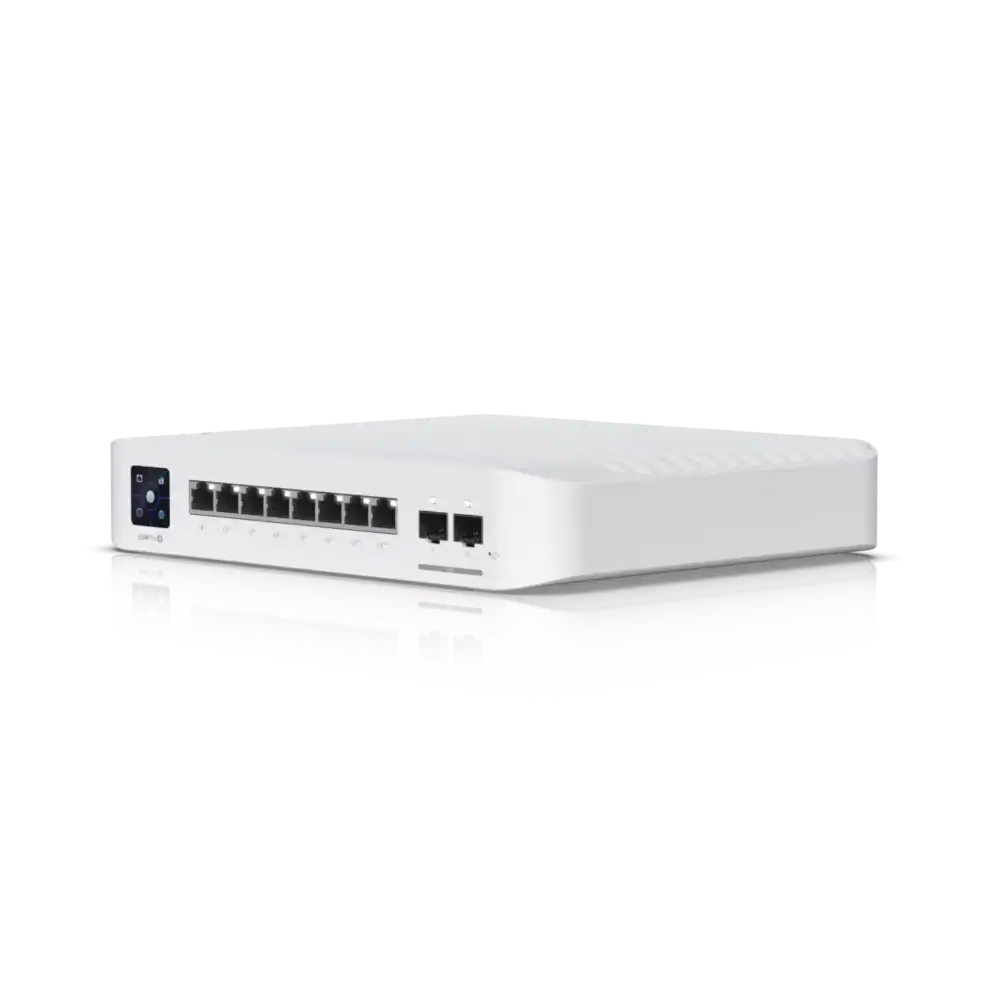

The Ubiquiti UniFi Switch Pro 8 PoE USW-Pro-8-PoE is a compact Layer 3 managed switch for small to medium-sized networks. It features eight Gigabit Ethernet ports, with six supporting PoE+ (up to 30W) and two supporting PoE++ (up to 60W), backed by a 120W total PoE budget. Two 10G SFP+ ports provide high-speed fibre uplinks. With a 56 Gbps switching capacity and 28 Gbps non-blocking throughput, it handles data efficiently. The 1U rack-mountable unit includes a 1.3-inch touchscreen, universal AC power input, and optional DC backup via UniFi SmartPower RPS (sold separately). Managed through the UniFi Network application version 7.5.176 or later. CE, FCC, and IC certified.
Key features:
Eight Gigabit Ethernet ports, including PoE+ and PoE++
120W total PoE power budget
Two 10G SFP+ ports for high-speed fibre uplinks
56 Gbps switching capacity and 28 Gbps non-blocking throughput
1U rack-mountable with 1.3-inch touchscreen
Universal 100–240V AC power input
Optional DC backup via UniFi SmartPower RPS
Managed via UniFi Network application version 7.5.176 or later
CE, FCC, and IC certified
| Dimensions | 200 x 248 x 44 mm |

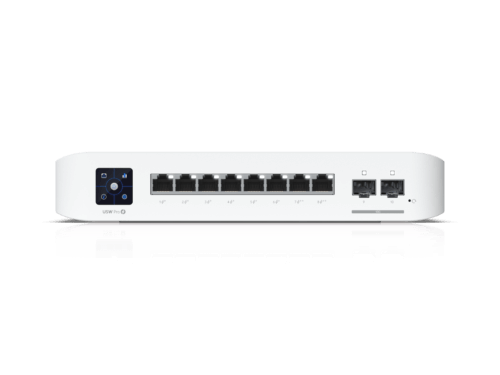

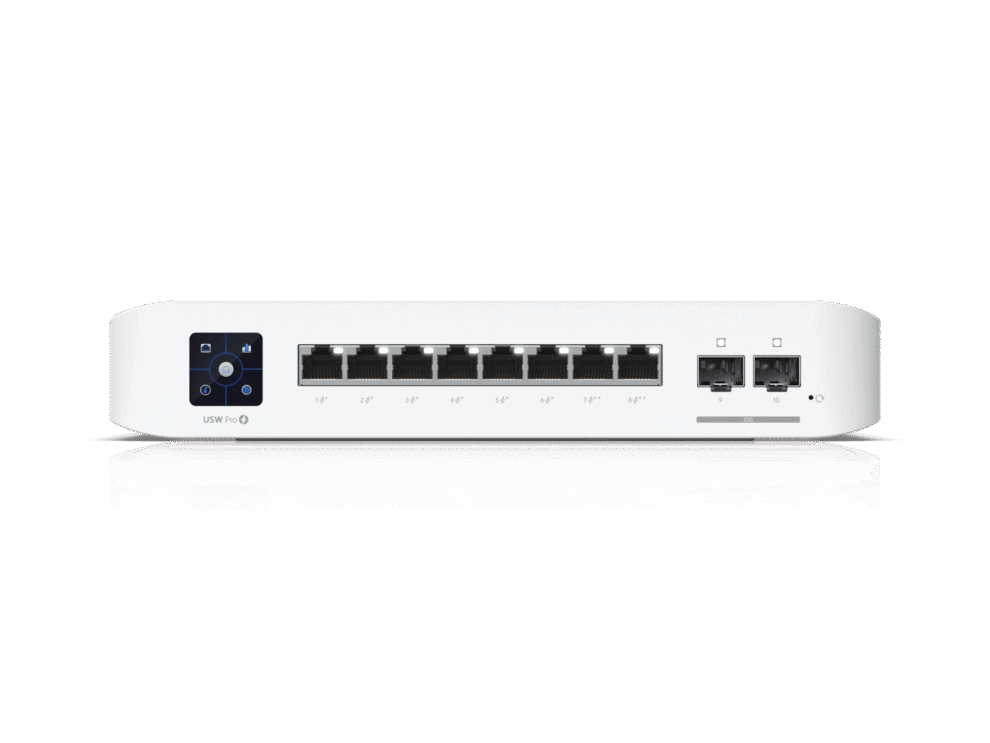

| Port Layout | 1 GbE RJ45 – 8 (6 PoE+; 2 PoE++)(1G/100M/10M) |
| 10G SFP+ – 2 (10G/1G) | |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 120W |
| Layer 3 | ✓ |
| Form Factor | Compact desktop, wall |
| Performace | |
| Switching Capacity | 56 Gbps |
| Total Non-Blocking Throughput | 28 Gbps |
| Forwarding Rate | 42 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | ARP Entries – 6,000 |
| IPv4 Routes – 512 | |
| Packet Buffer Size | 1.5 MB |
| Hardware | |
| PoE Ports | PoE+ – 6 |
| PoE++ – 2 | |
| Max. PoE Wattage per Port by PSE | PoE – 15.4W |
| PoE+ – 32W | |
| PoE++ – 64W | |
| Max. Power Consumption | 30W (Excluding PoE Output), 150W (Including PoE Output) |

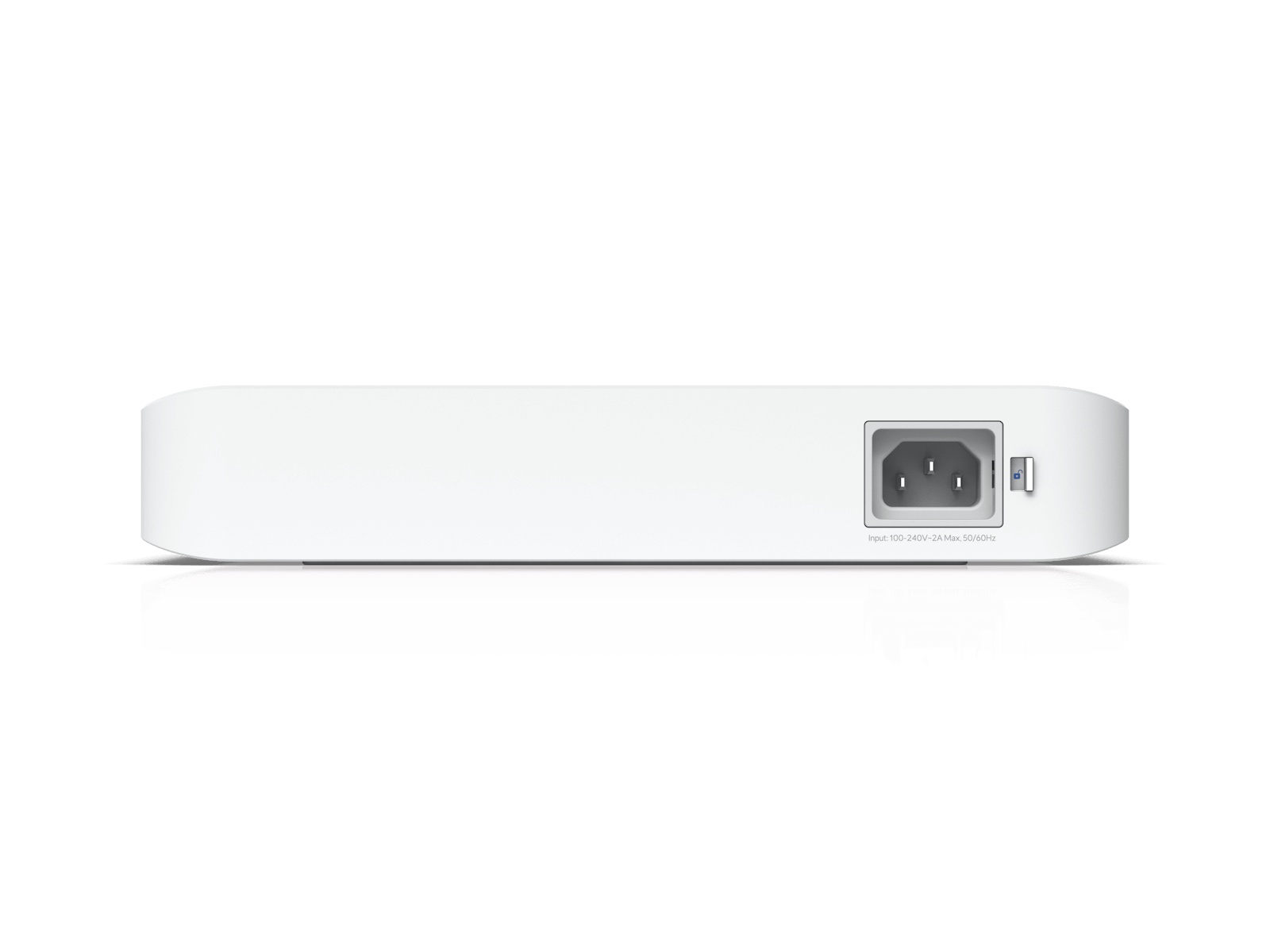

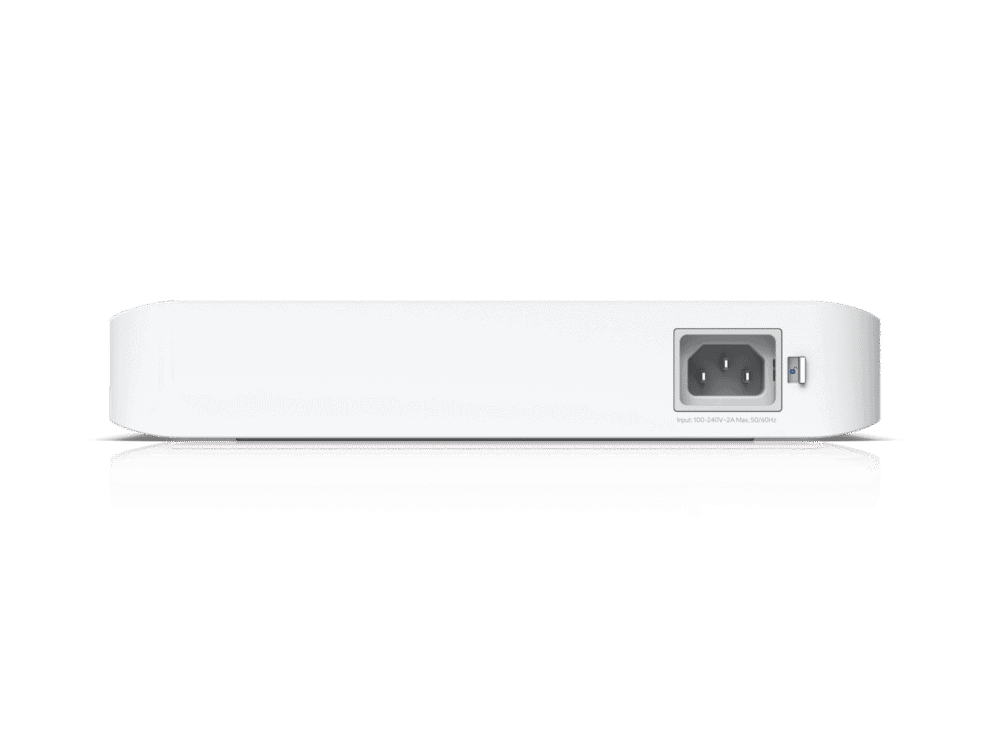

| Power Method | Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet |
