Mechanical
Dimensions

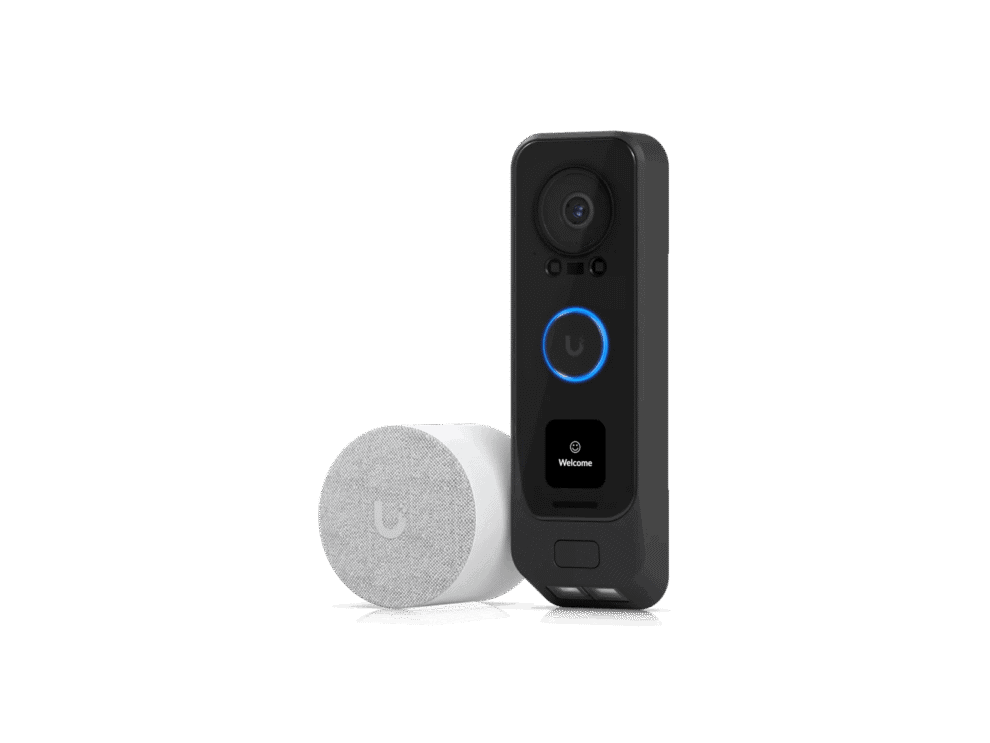

UVC-G4 Doorbell Pro
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4″)
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7″)
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1″)
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1″)
UP-Chime PoE
Device: Ø62 x 54 mm (Ø2.5 x 2.1″)
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5″)
On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8″)
Weight
UVC-G4 Doorbell Pro
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)
UP-Chime PoE
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz)
Enclosure material: Aluminum alloy, polycarbonate
Mount material: Wall mount: aluminum alloy
Wedge: polycarbonate
On-wall mount: polycarbonate
Chime mout: polycarbonate, zinc alloy
Optics
Sensor: Main camera: 5MP CMOS
Package camera: 8MP CMOS
Lens: Fixed focal length
View angle: Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode: Built-in IR LED illumination and IR cut filter
