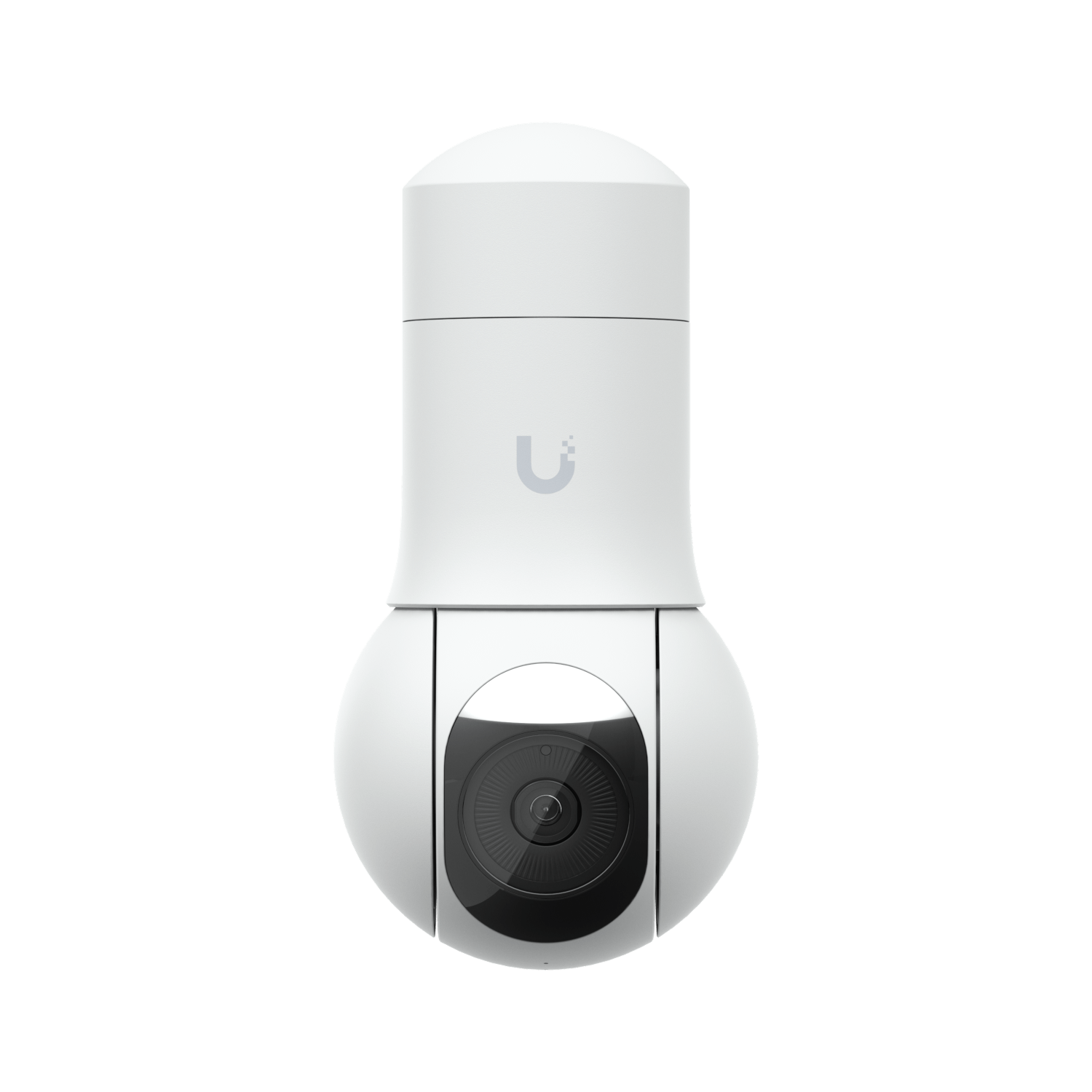

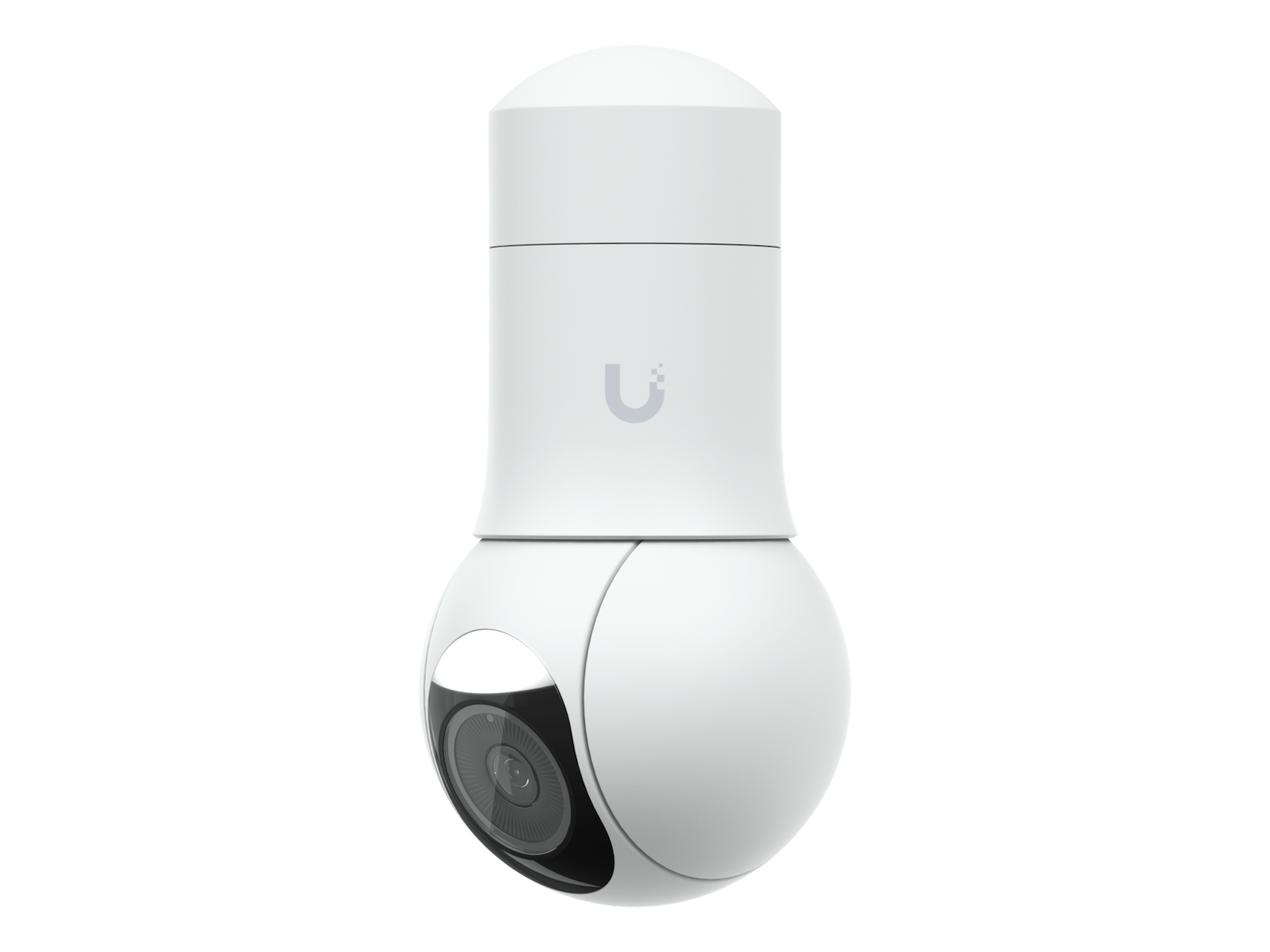

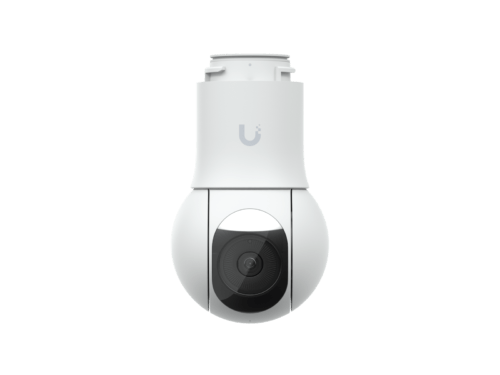

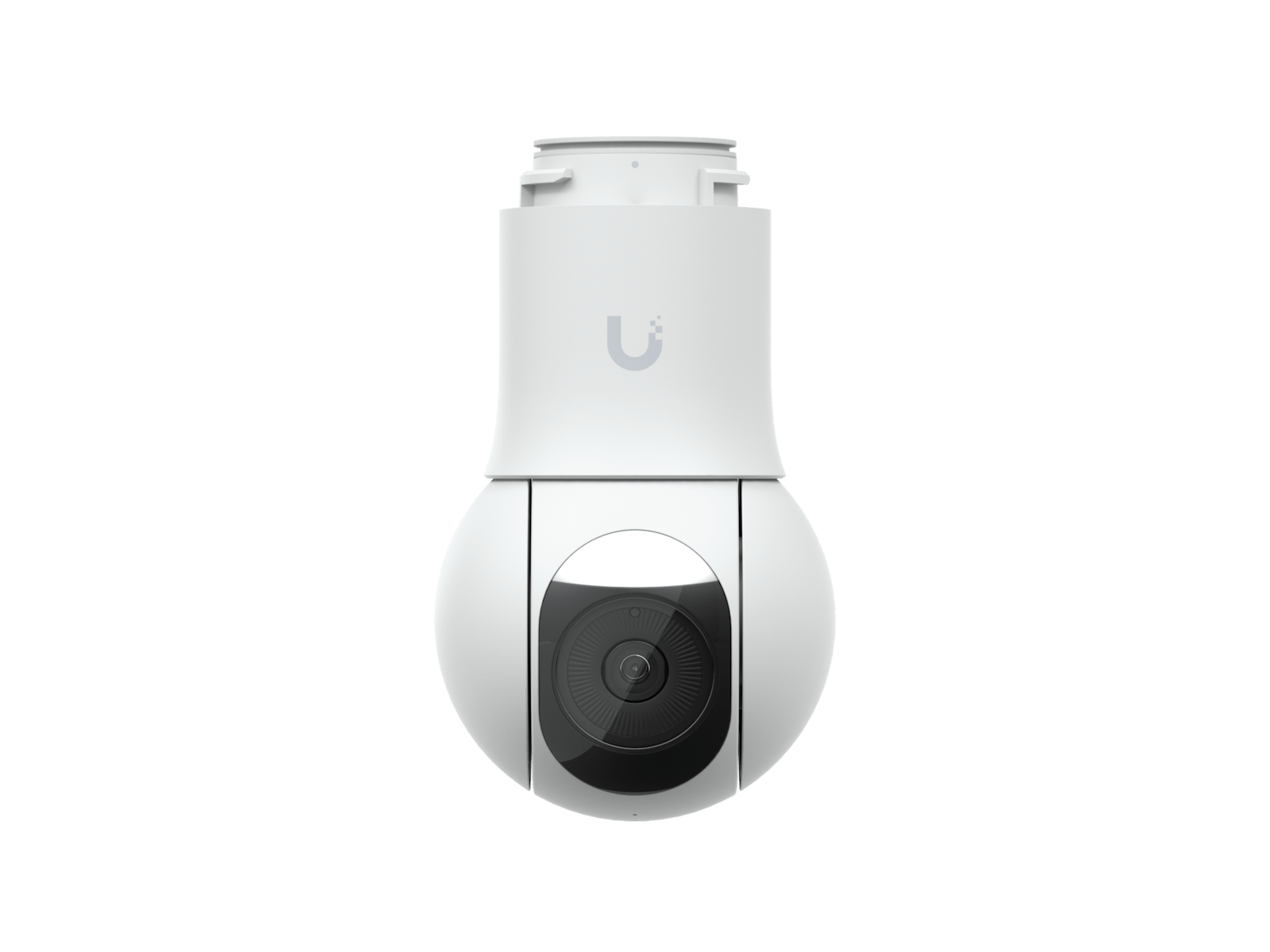

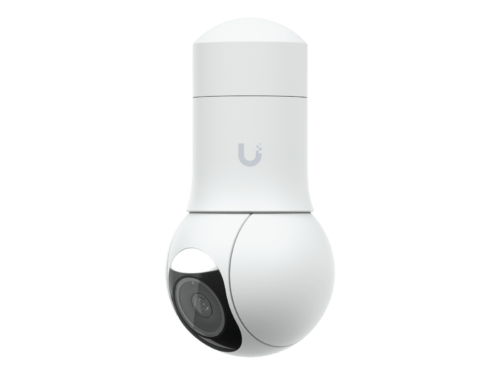

The Ubiquiti UniFi Protect G5 PTZ UVC-G5-PTZ is a high-performance, professional-grade pan-tilt-zoom (PTZ) network camera designed for advanced surveillance applications. Delivering crystal-clear 4K Ultra HD video resolution, this camera captures exceptional detail, ensuring accurate monitoring and identification. Equipped with powerful optical zoom and precise pan-tilt mechanisms, the G5 PTZ offers extensive coverage and flexible viewing angles. Integrated with the UniFi Protect ecosystem, it provides seamless management, advanced analytics, and secure recording. Features include advanced motion detection, smart AI-powered person and vehicle detection, and robust weather resistance (IP66), making it suitable for both indoor and outdoor deployments.
| Dimensions | Without mount: Ø90 x 152.5 mm, With mount: 90 x 94 x 179.5 mm |
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2x Optical |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Resolution | 2K |
| Field of View | Wide: H: 99.7°, V: 51.9°, D: 121°, Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Pan-Tilt Range | Pan: 350°, Tilt: 100° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Performance | |

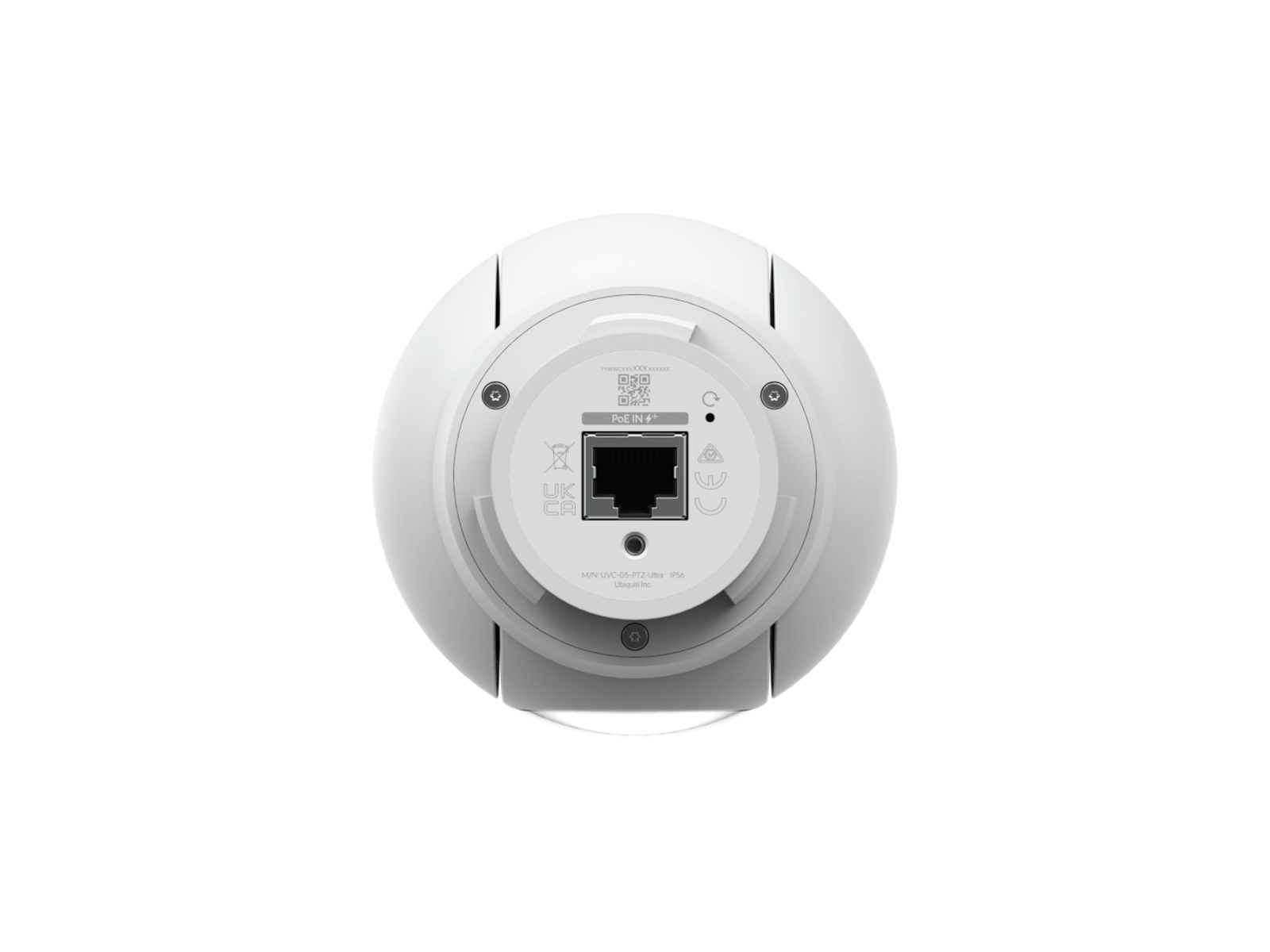

| Networking Interface | 10/100 MbE RJ45 port |
| Video | Max. Frame Rate – 30 FPS |
| Resolution – 4MP 2688 x 1512 (16:9) | |
| Optics | Sensor – 5MP 1/2.7″ CMOS |
| Lens – F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 | |
| Night Mode – Built-in IR & white LED illumination with IR cut filter | |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Pole Mount Diameter | 1.5–2″ (38–50 mm) |
| Weight | Without mount: 580 g (1.3 lb), With mount: 650 g (1.4 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate, |
| Mount Material | Wall mount: polycarbonate, Pole mount: aluminum alloy |
| Button | (1) Factory-reset |
