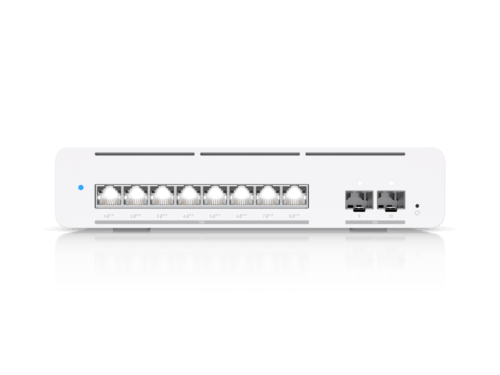

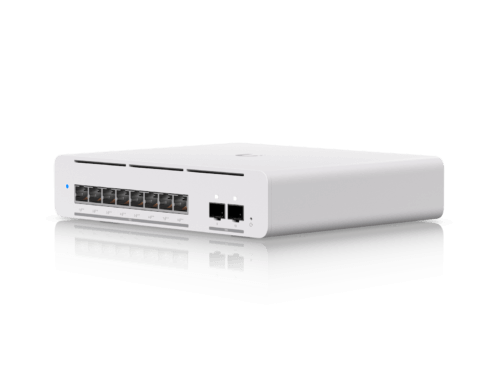

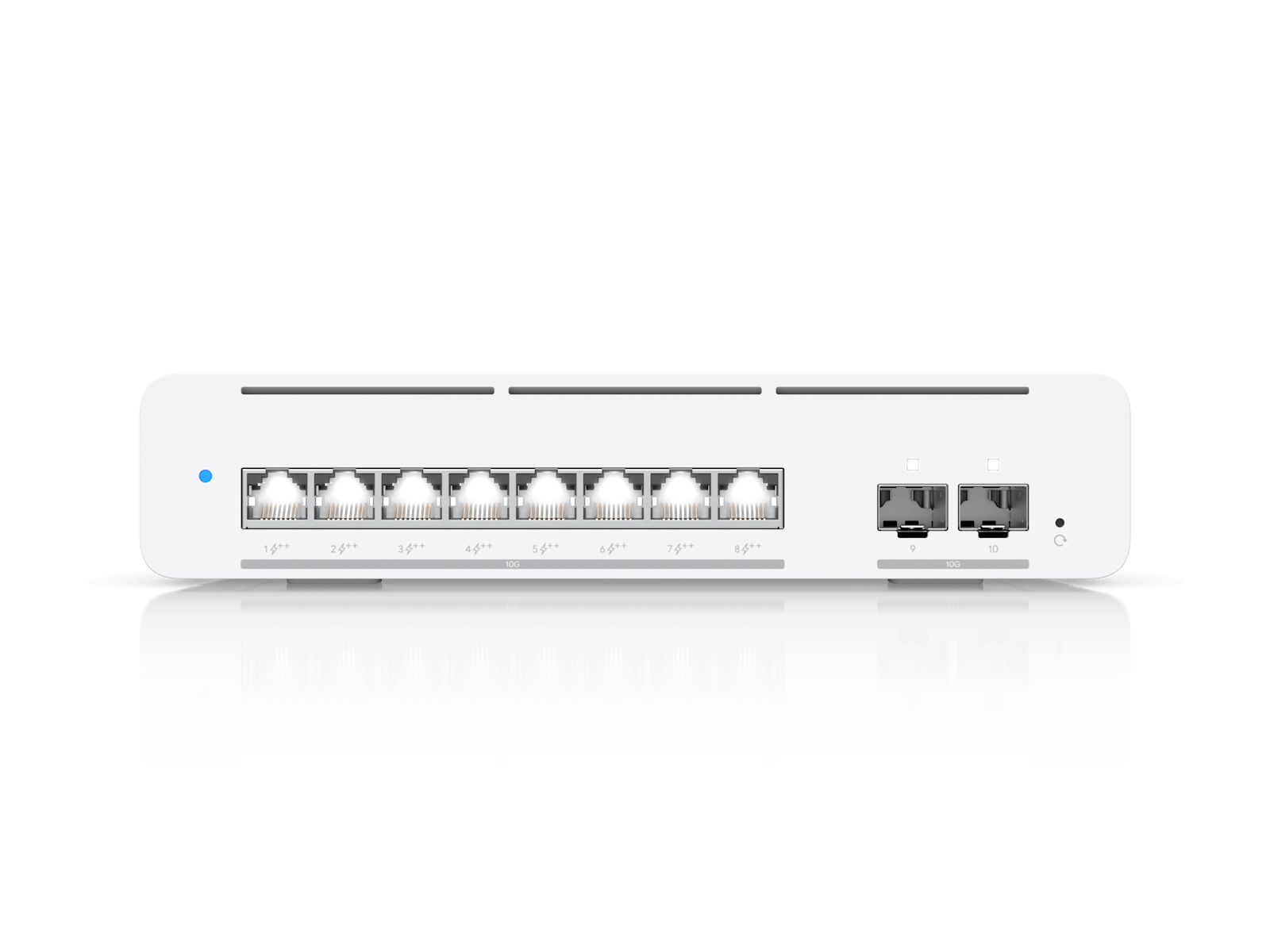

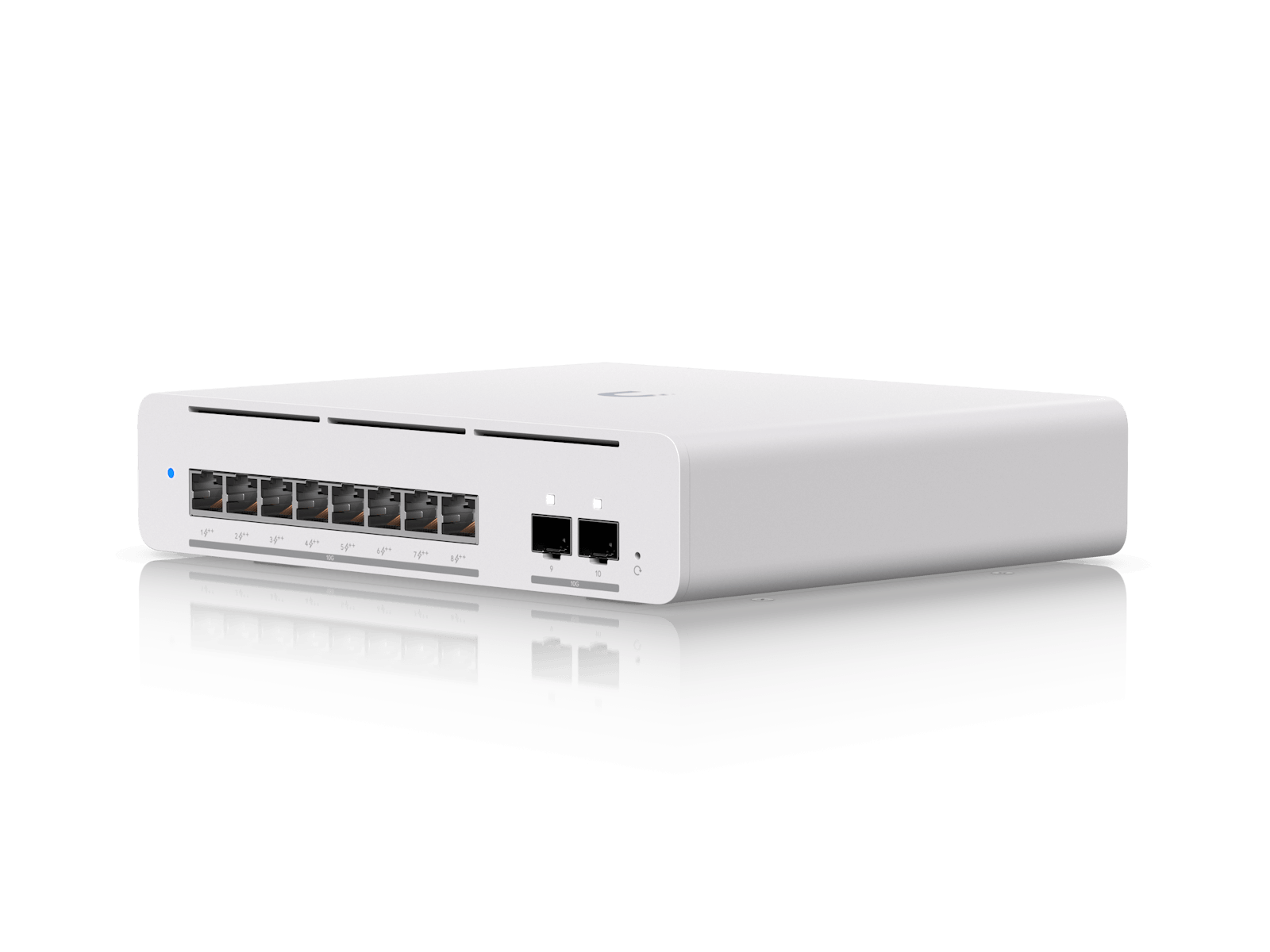

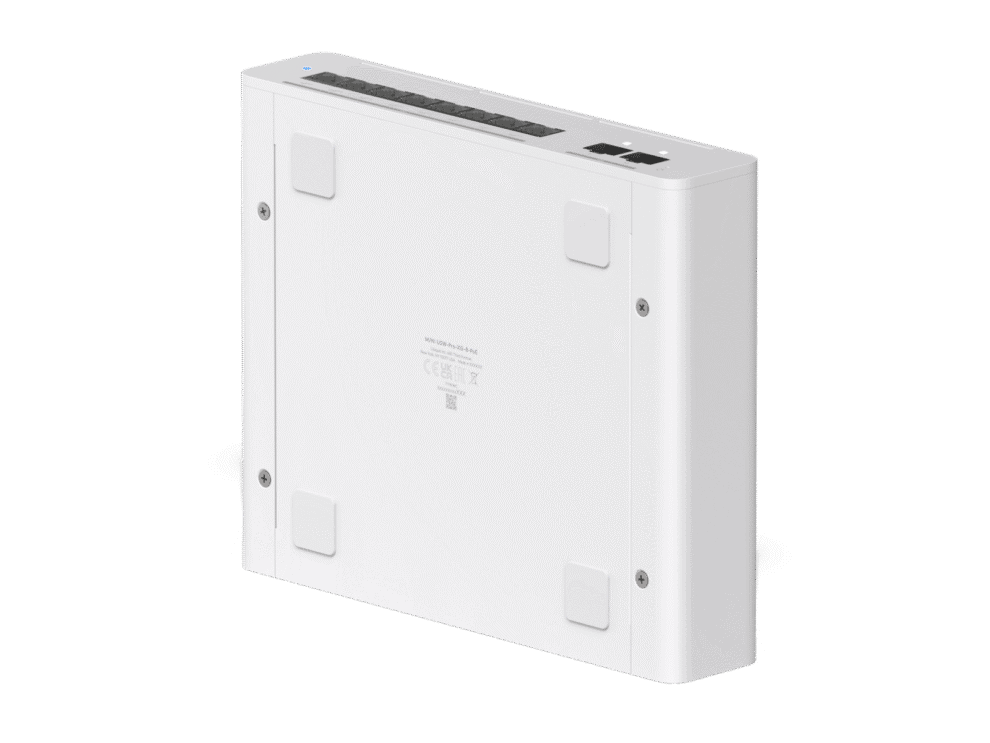

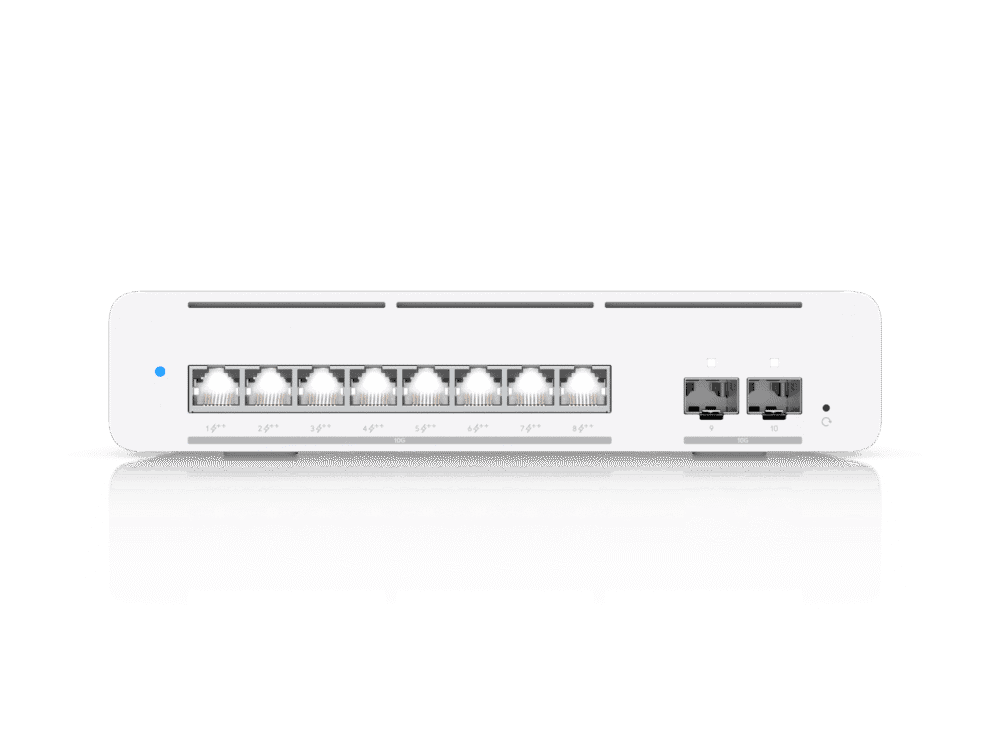

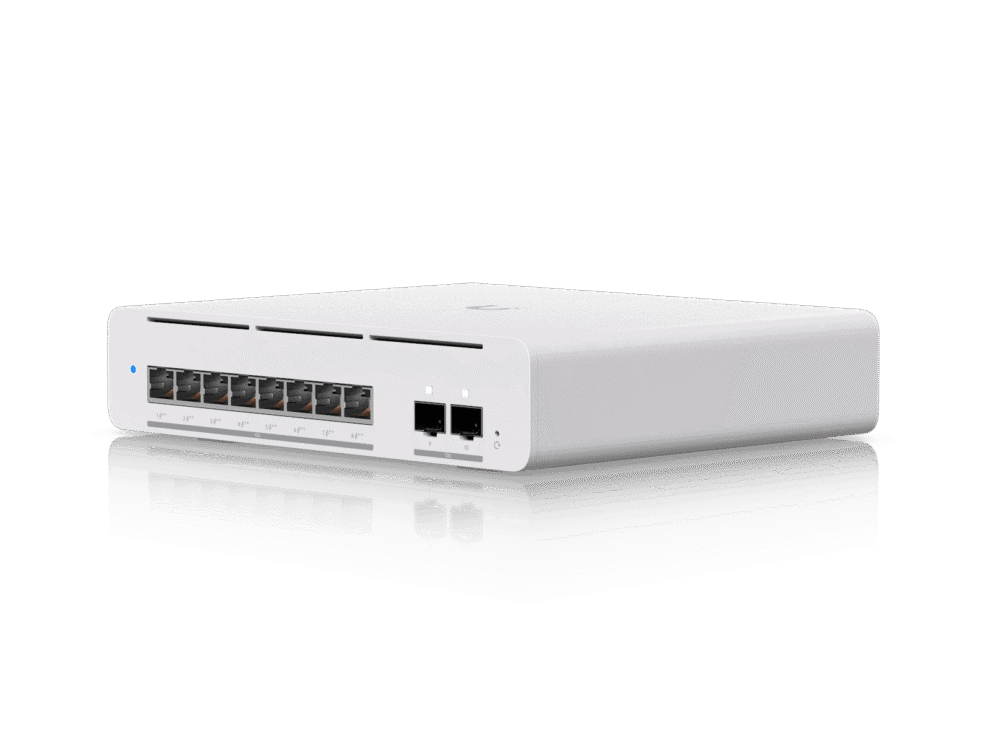

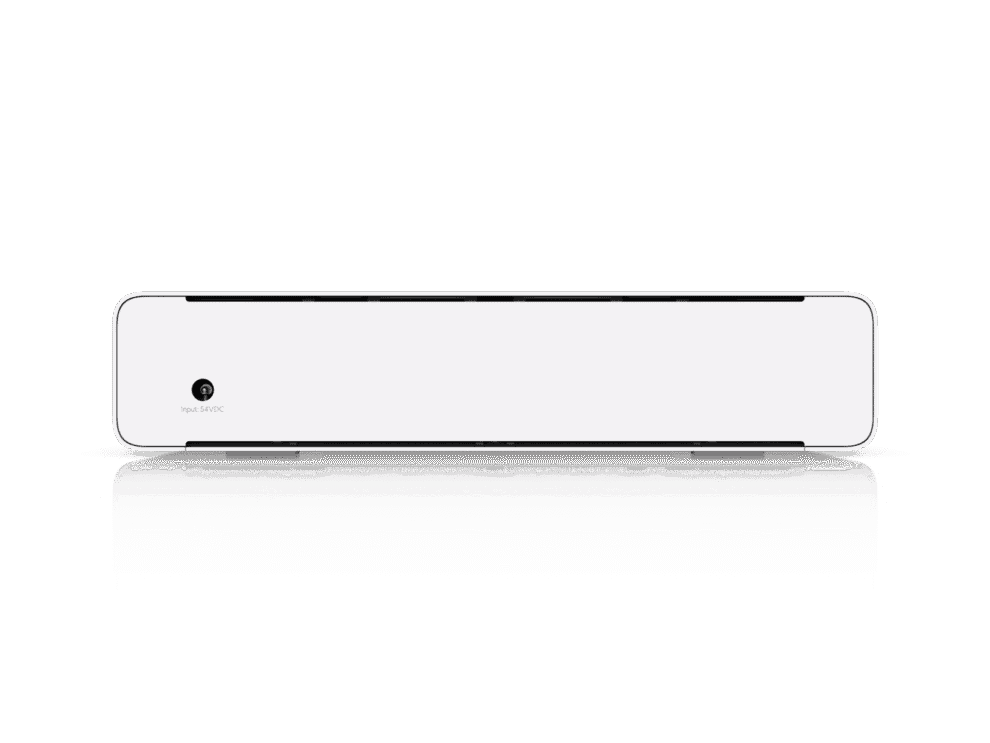

The Ubiquiti UniFi USW-Pro-XG-8-PoE is an advanced, compact Layer 3 managed switch engineered for high-performance network segments requiring robust PoE capabilities. It features 8x 10 Gigabit Ethernet (GbE) RJ45 ports, all supporting PoE+++ (up to 90W per port), for a total PoE budget of 155W. Additionally, it includes two 25G SFP28 uplink ports, providing high-bandwidth connectivity to the network core. With a substantial 260 Gbps switching capacity and 130 Gbps non-blocking throughput, this switch is ideal for powering and connecting high-demand devices such as Wi-Fi 7 access points, 10 GbE workstations, and professional AV equipment. It integrates seamlessly with the UniFi Network application for centralised management, offers advanced Layer 3 routing features, and supports DC power backup via UniFi RPS for enhanced reliability.
| Dimensions | 210.4 x 173.8 x 43.7 mm |
| Port Layout | 10 GbE RJ45 – 8 (All PoE++)(10G/5G/2.5G/1G/100M) |
| 10G SFP+ – 2 (10G/1G) | |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 155W |
| Layer 3 | ✓ |

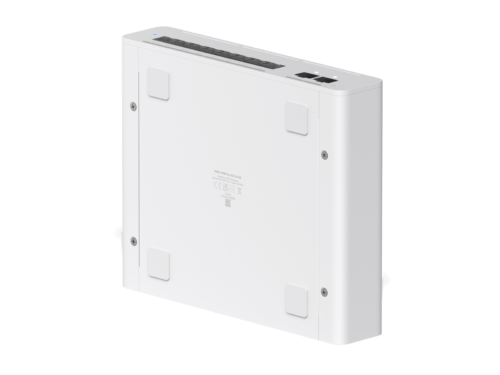

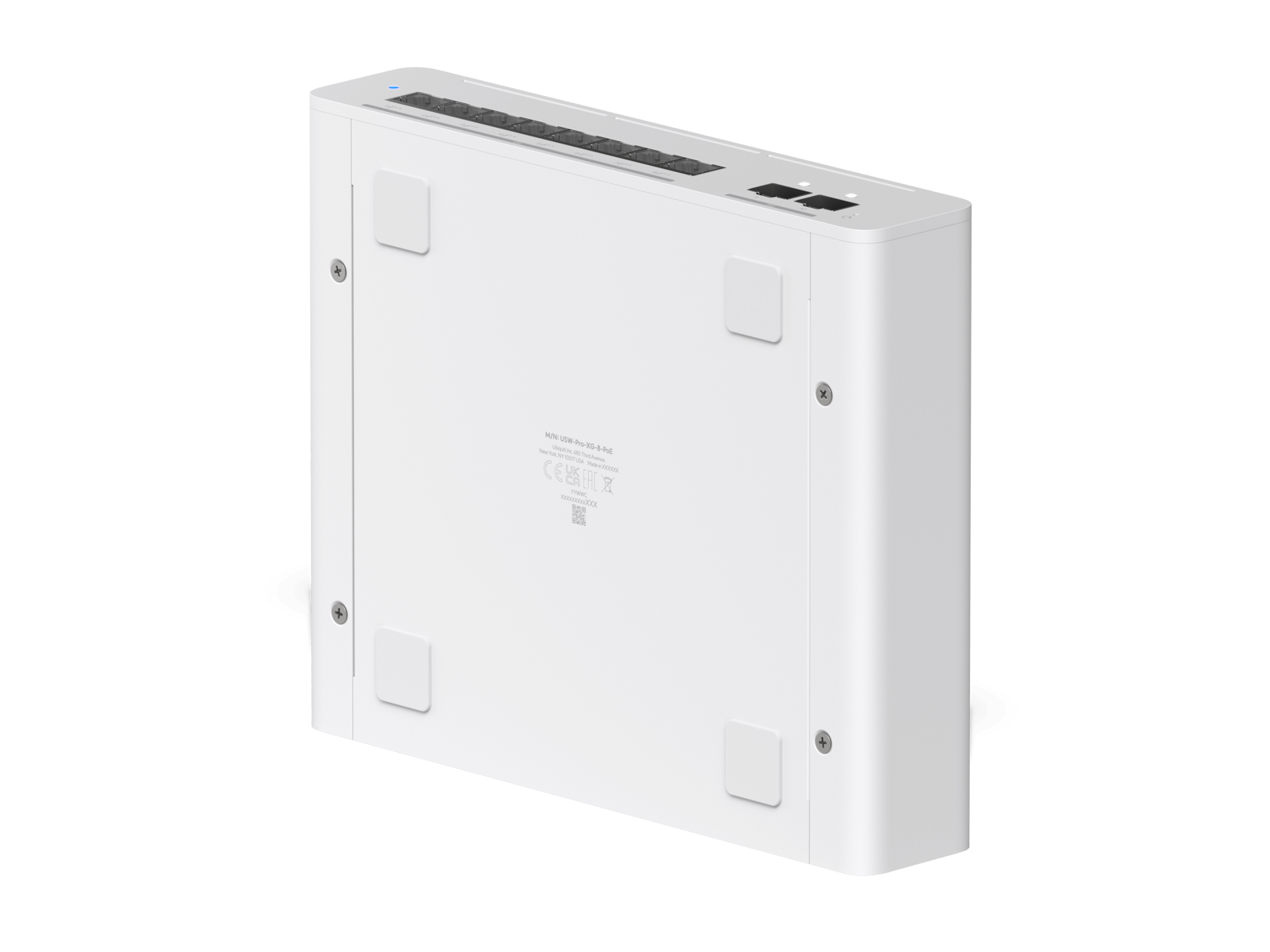

| Form Factor | Compact desktop, wall |
| Etherlighting™ | ✓ |
