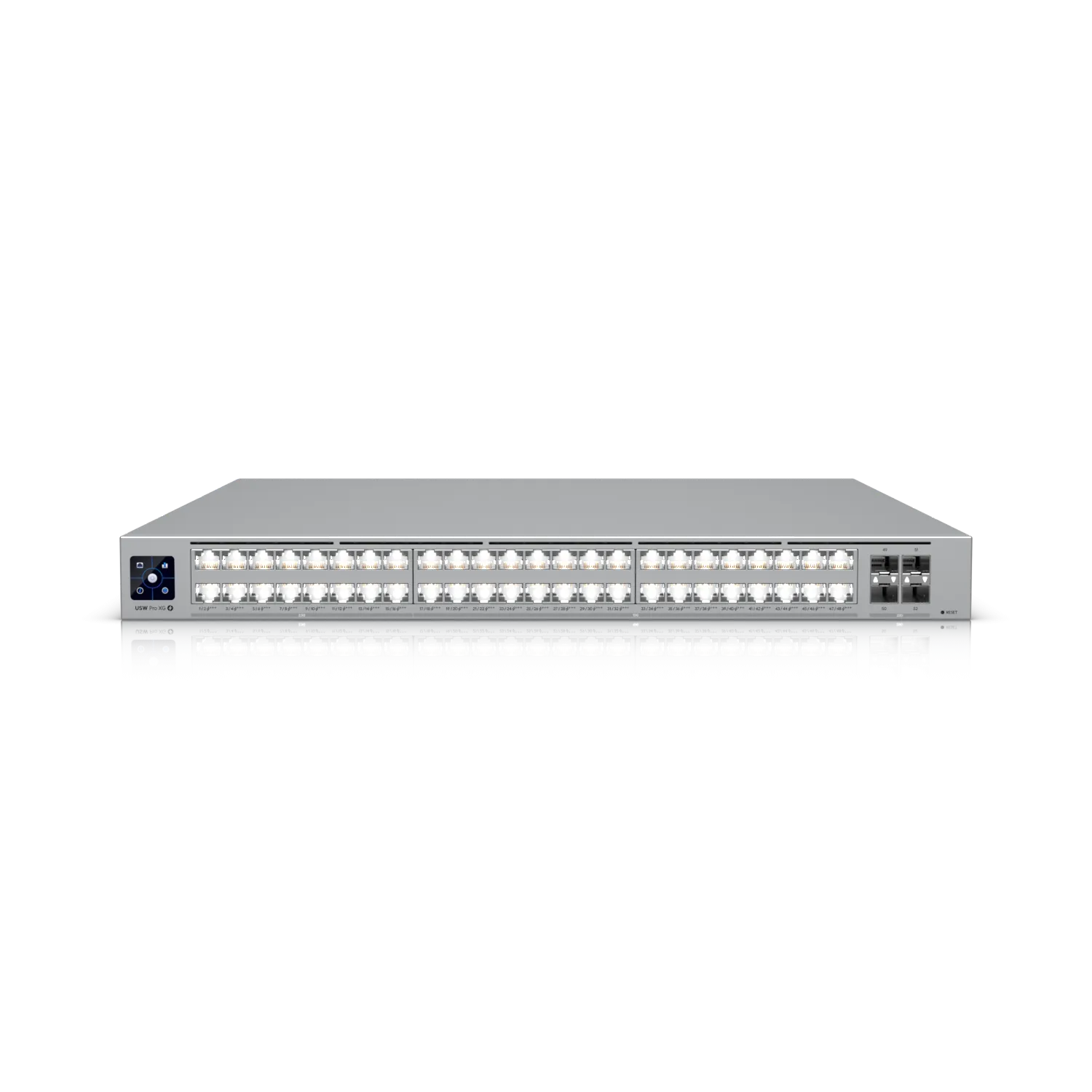

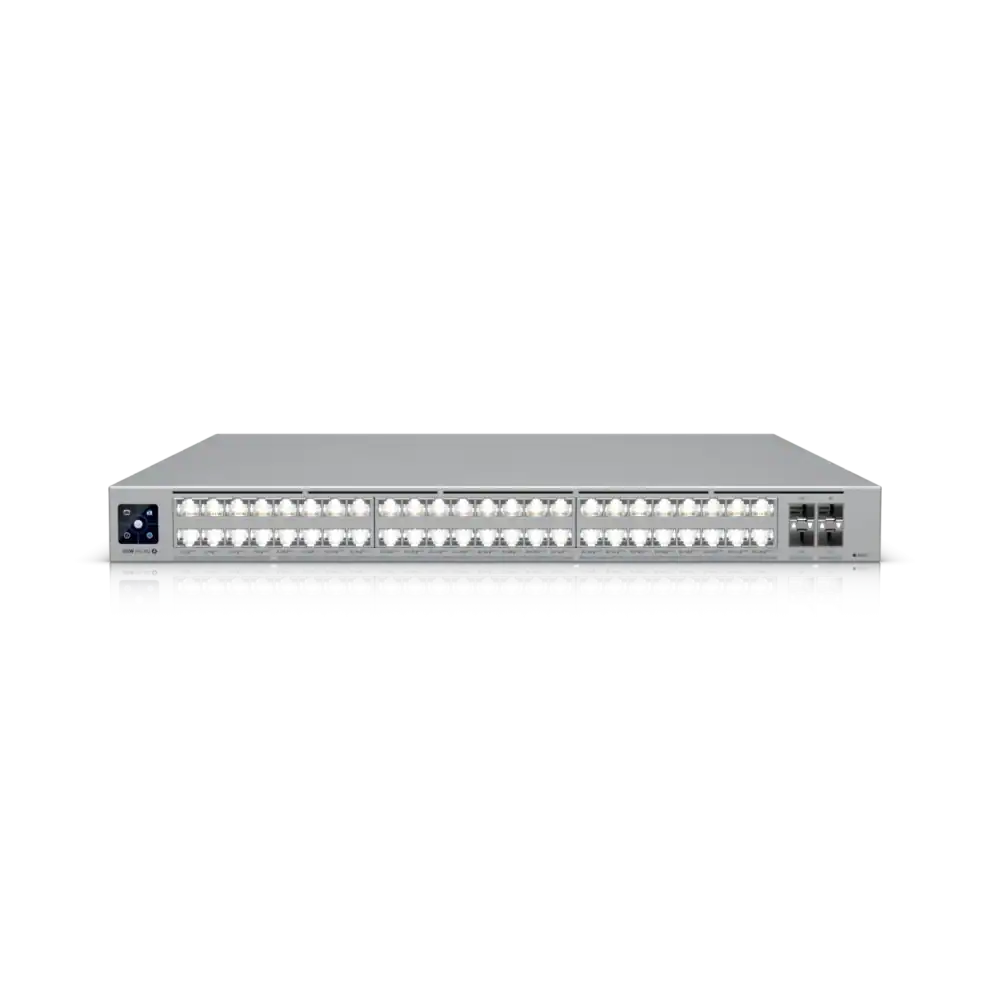

The Ubiquiti UniFi Pro XG 48 Port 1080W PoE Switch USW-Pro-XG-48-PoE is an enterprise-grade, Layer 3 managed switch engineered for high-density, high-performance network deployments. This 1U rack-mountable switch boasts 32x 10 GbE RJ45 ports and 16x 2.5 GbE RJ45 ports, all supporting PoE+++ (up to 90W per port), providing a massive 1080W total PoE budget. It also features four 25G SFP28 uplink ports for seamless core aggregation and backbone connectivity. With a substantial 920 Gbps switching capacity and 460 Gbps non-blocking throughput, the USW-Pro-XG-48-PoE is ideal for powering numerous high-demand devices like Wi-Fi 7 access points, advanced surveillance cameras, and Pro A/V equipment. It incorporates advanced Layer 3 routing capabilities, Etherlighting™ for visual port status, a 1.3″ LCM colour touchscreen, and supports DC power backup via UniFi RPS for maximum operational reliability, all centrally managed through the UniFi Network application.
Dimensions | 442 x 480 x 44 mm |
Port Layout | |
2.5 GbE RJ45 | 16x (All PoE+++)(2.5G/1G/100M/10M) |
10 GbE RJ45 | 32x (All PoE+++)(10G/5G/2.5G/1G/100M/10M) |
25G SFP28 | 4x (25G/10G/1G) |
Max. PoE Output | Up to PoE+++ |
Total PoE Availability | 200-240V AC: 1080W, 100-120V AC: 972W |
Redundancy | DC Power Backup |
Layer 3 | ✓ |
Form Factor | Rack mount (1U) |
Etherlighting™ | ✓ |
