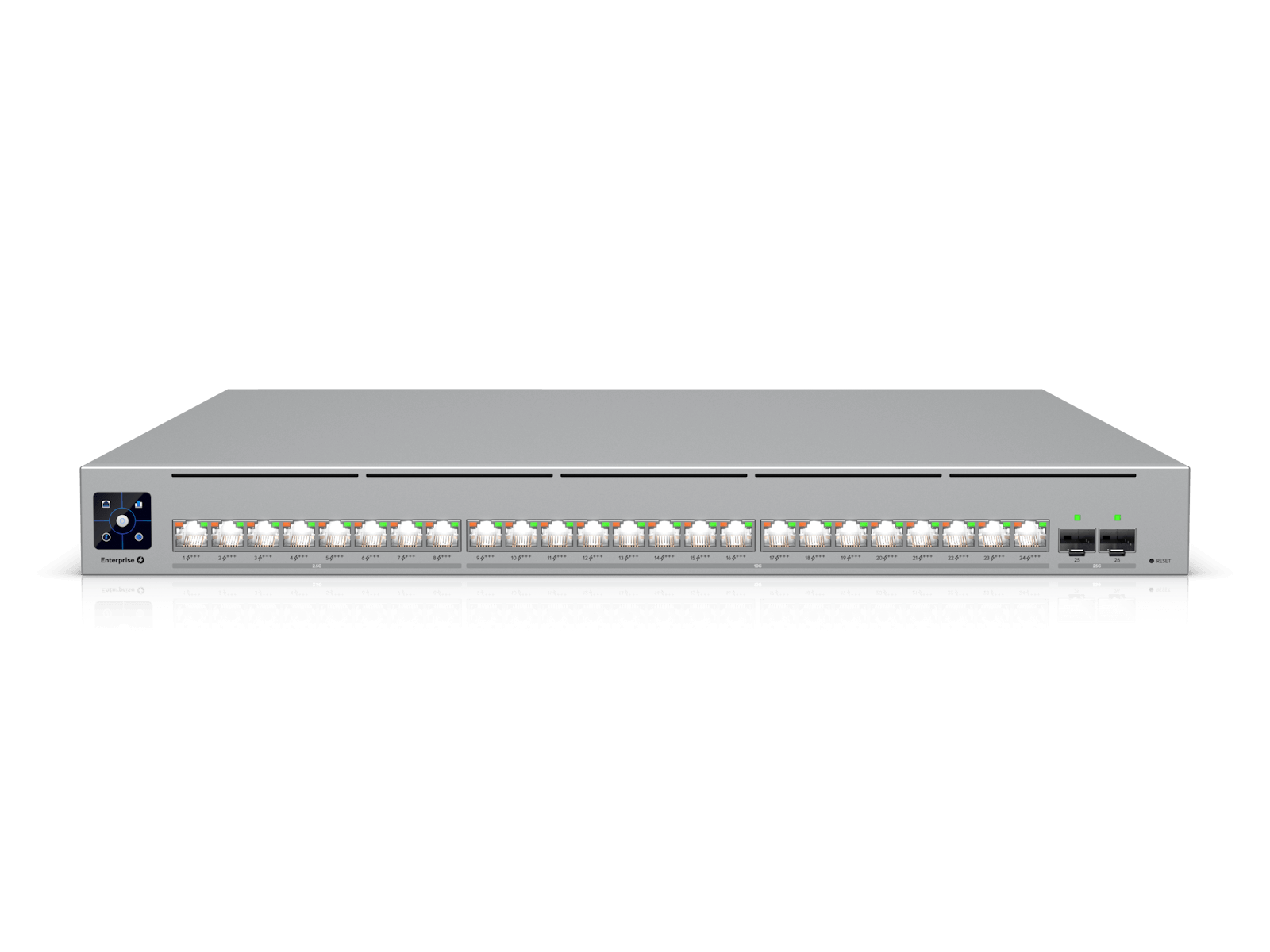

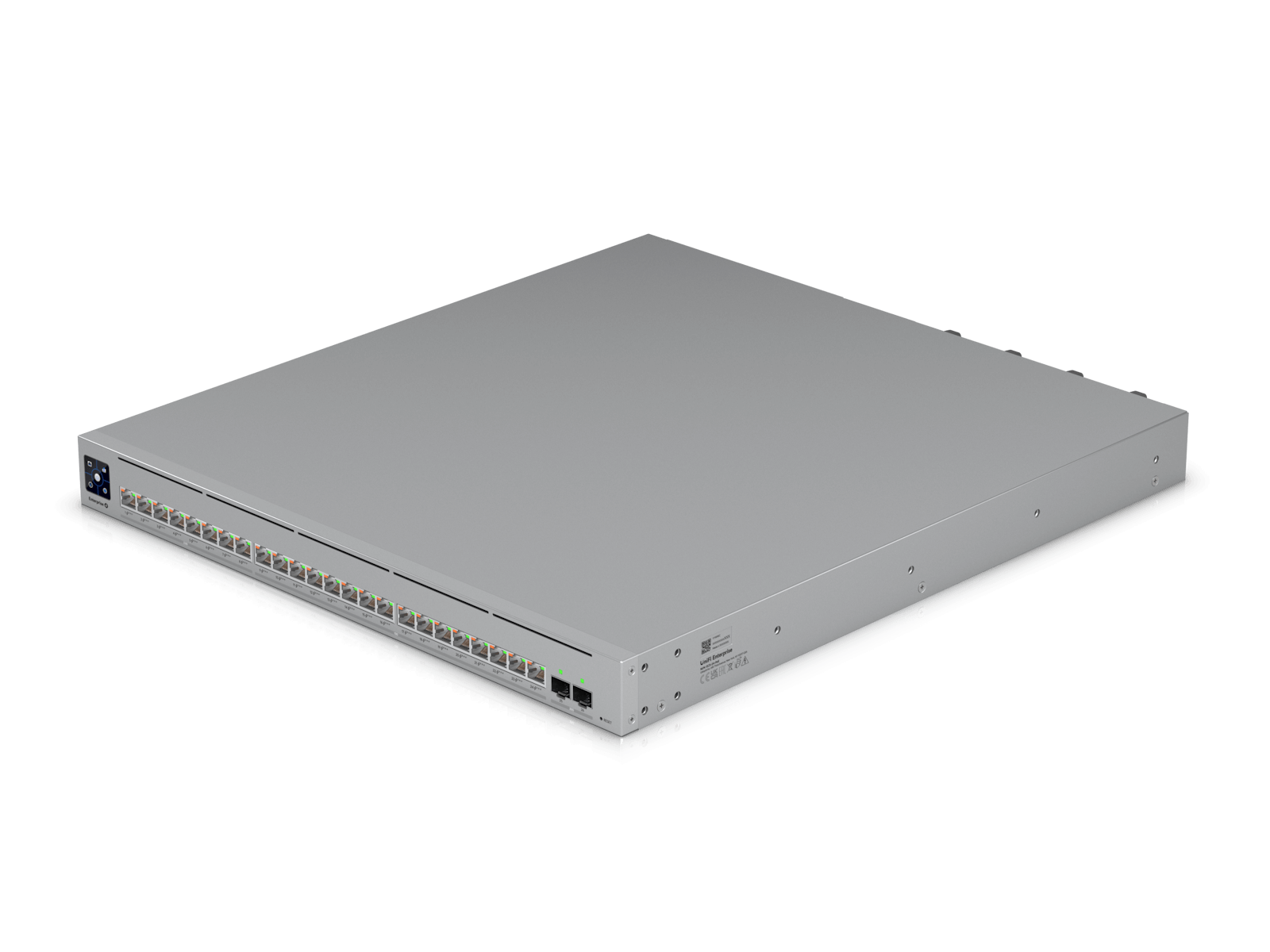

The Ubiquiti UniFi Enterprise 24 PoE (ECS-24-PoE) is a Layer 3 managed switch designed for high-performance enterprise and campus networks. It provides 24 PoE+++ ports, including sixteen 10GbE and eight 2.5GbE ports, supported by a total power budget of 1050W to operate Wi-Fi 6/7 access points and other powered devices. For high-speed backbone connections, the switch includes two 25G SFP28 uplinks. Reliability is central to its design, incorporating dual hot-swappable power supplies for redundancy and hot-swappable fans for continuous operation. Advanced Layer 3 networking features, such as inter-VLAN and static routing, are managed through the UniFi Network Controller. The switch also features Etherlighting™ technology on its ports to simplify port identification and status checks. Become an Approved Partner: UBIQUITI ENTERPRISE PARTNER FORM Please note that no orders will be fulfilled without partner registration and approval.
Dimensions | 442.4 x 43.7 x 496 mm |
Port Layout | 2.5 GbE RJ45 – 8 (All PoE+++)(2.5G/1G/100M/10M) |
10 GbE RJ45 – 16 (All PoE+++)(10G/5G/2.5G/1G/100M/10M) | |
25G SFP28 – 2 (25G/10G/1G) | |
Max. PoE Output | Up to PoE+++ |
Total PoE Availability | 100-240V AC Shared Mode: 1,050W with (2) 600W modules |
100-240V AC Redundant Mode: 450W with (2) 600W modules | |
200-240V AC Shared Mode: 2,250W with (2) 1,200W modules | |
100-120V AC Shared Mode: 1,850W with (2) 1,200W modules | |
200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules | |
100-120V AC Redundant Mode: 850W with (2) 1,200W modules | |

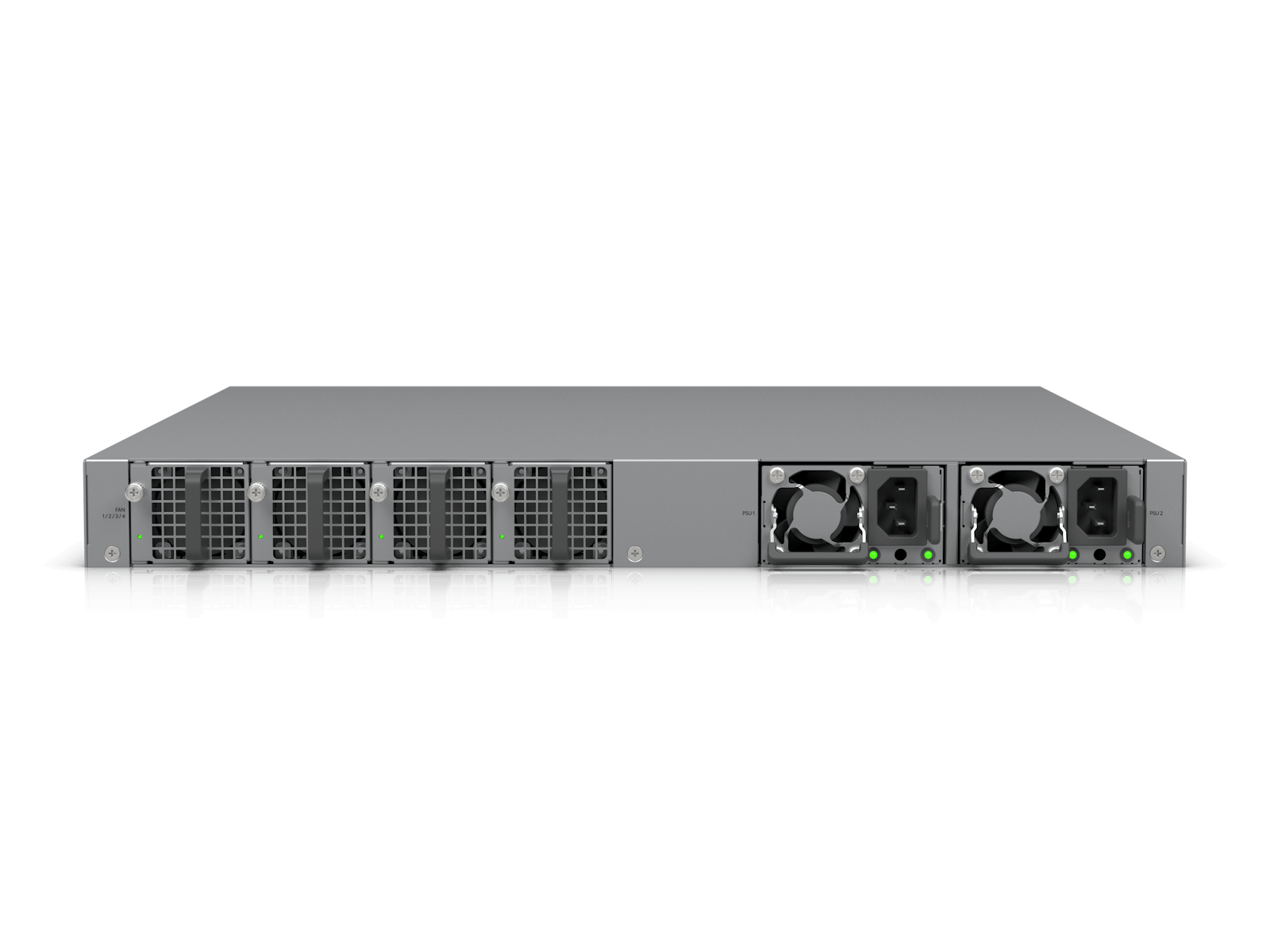

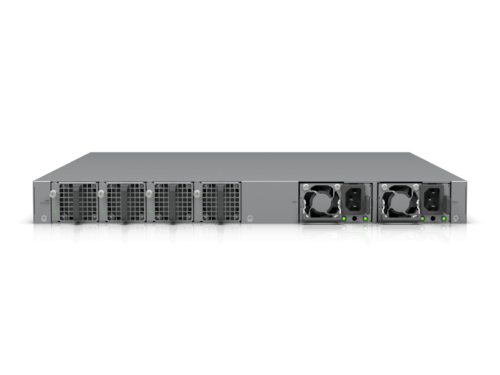

Redundancy | 2x Hot-Swappable PSUs |
4x Hot-Swappable Fans | |
Layer 3 | ✓ |
Form Factor | Rack Mount (1U, Full-Depth) |
Etherlighting™ | ✓ |
