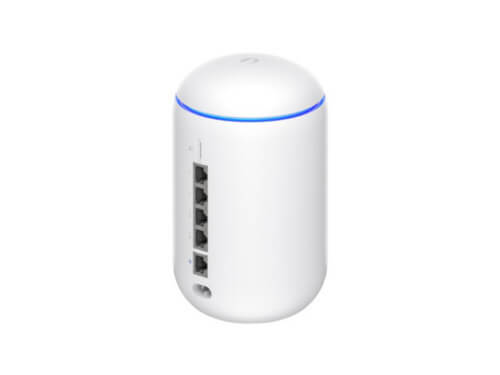

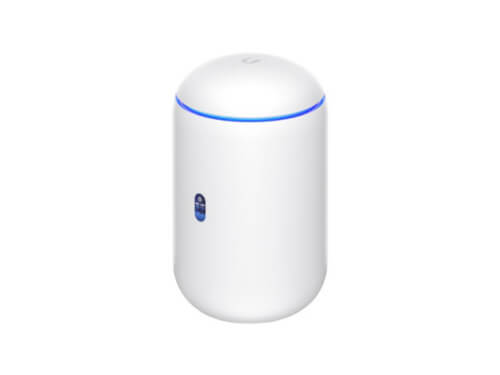

Ubiquiti’s UDR is an all-in-one UniFi OS console designed for small networks. It supports the full UniFi Application suite. It features a dual band, WiFi 6 (802.11ax) access point that delivers an aggregate data rate of 3Gbps over 5GHz (4×4 MU-MIMO) and 2.4GHz (2×2 MU-MIMO) bands. The UDR also has 5x Gigabit Ethernet ports, two of which support 802.3af PoE output and a built-in advanced security gateway. It features an LCM (Liquid Crystal Monitor) colour screen to display key system and connection information.
*Note: It supports a maximum of 2 UniFi OS Applications running simultaneously.
Antenna Gain: 2.4GHz: 3.4dBi ; 5.8GHz: 4.3dBi
Beam-width: 360°
Data Rate: 2.4GHz: 600Mbps ; 5.8GHz: 2.4Gbps
Ethernet Ports: 1x 10/100/1000 (WAN); 4x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 19.37W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: 802.3af on Ports 3 and 4
Power Input: 1x Figure 8 Power Cord (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 100V-240V
USB Ports: None
