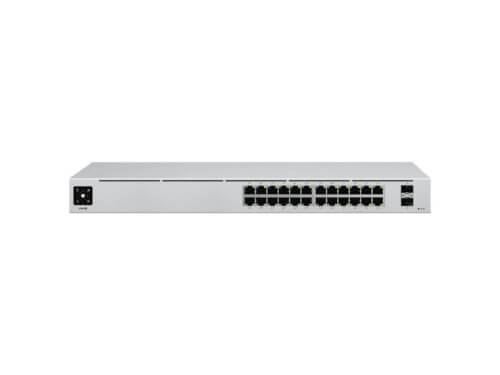

Ubiquiti’s USW-24P is a configurable Layer 2 switch with 24x Gigabit Ethernet ports including 16x auto-sensing 802.3at PoE+ ports, and 2x 1.25Gbps SFP uplink ports. The unit features a 1.3″ touch LCM to provide status information. With a depth of 7.9″, the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the device offers an extensive suite of advanced layer 2 switching protocols and features.
Specifications
Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1~16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100 to 240VAC
Dimensions: 442.4 x 200 x 43.7mm
Weight: 3.09kg
