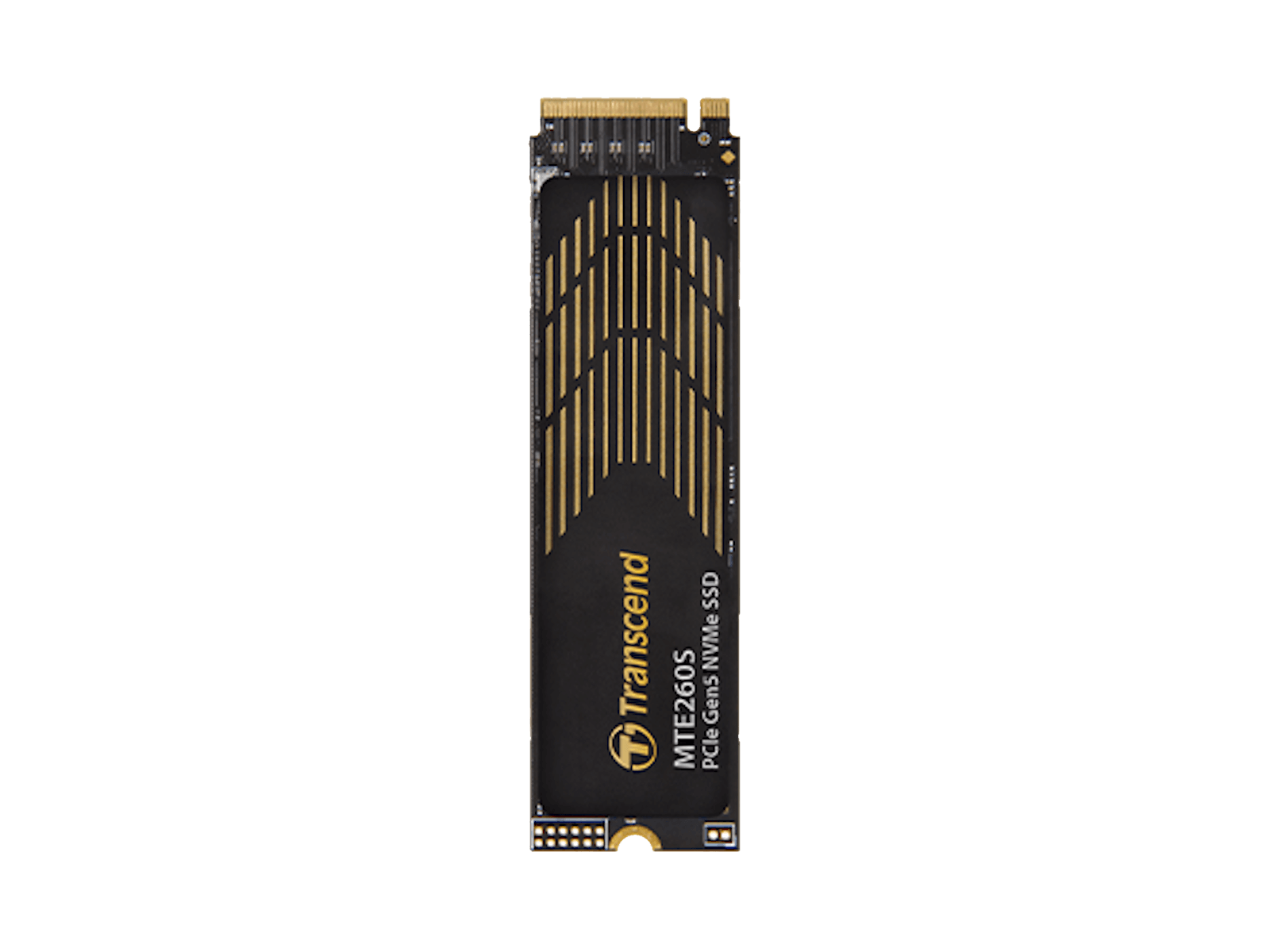

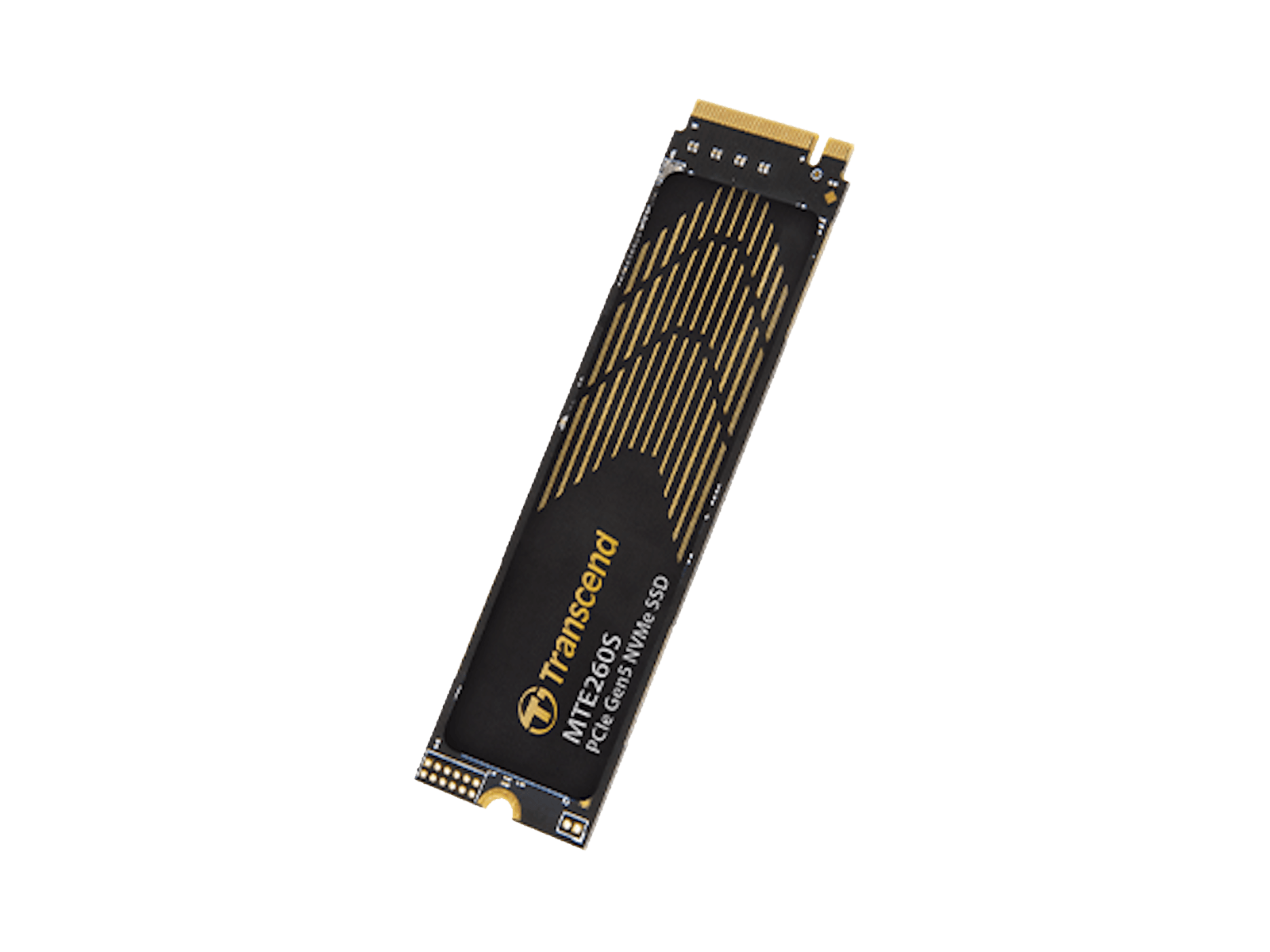

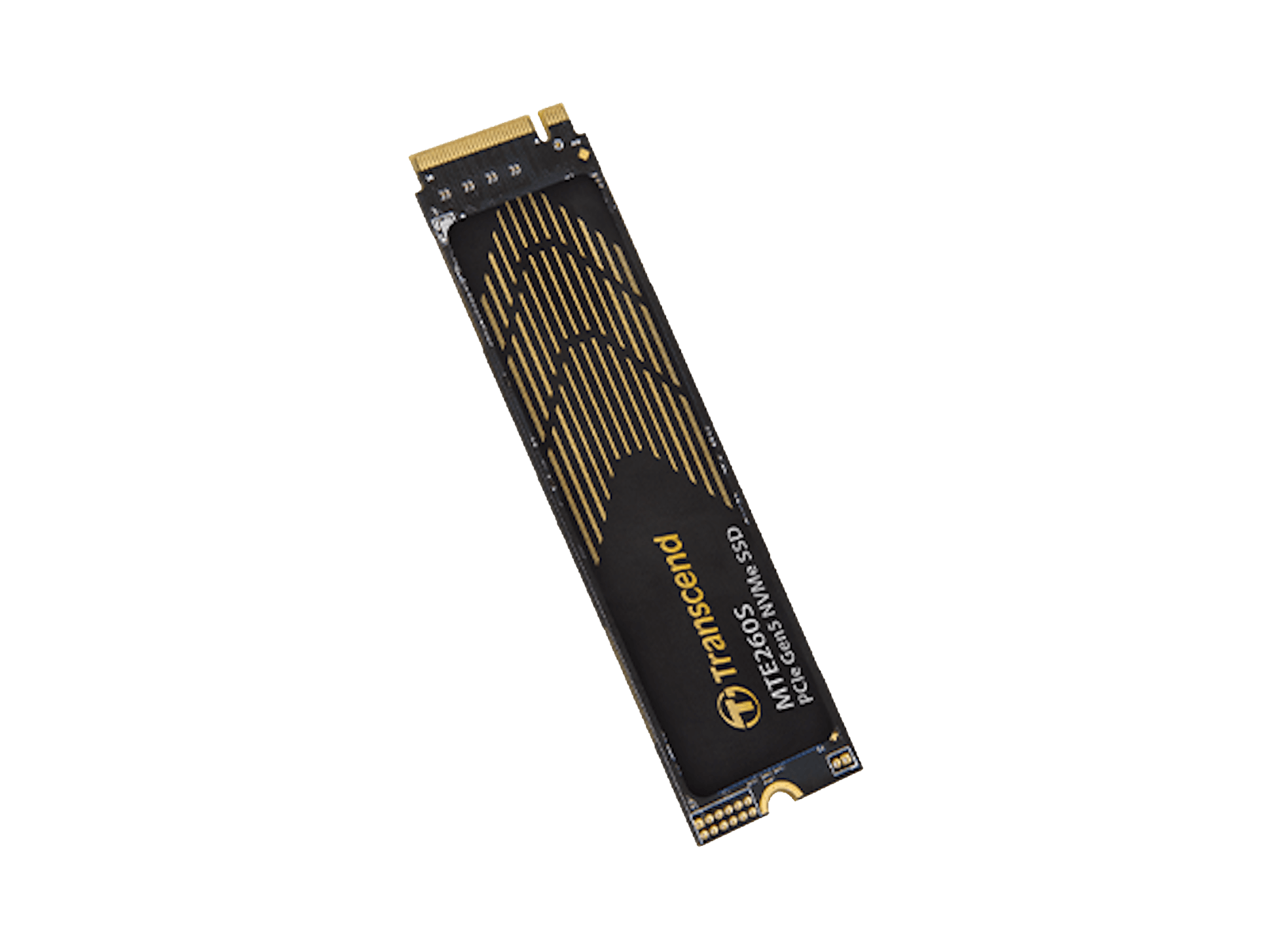

Transcend’s PCIe Gen5 SSD MTE260S is built for next-generation speed and reliability, featuring the latest PCI Express® Gen5 x4 interface, advanced 3D NAND flash, and DDR4 DRAM cache. Powered by a low-power controller and enhanced with a graphene heatsink, it delivers exceptional speed, stability, and efficiency. Whether you’re immersed in AAA gaming, handling 4K/8K video production, or running demanding AI applications, the MTE260S ensures ultra-fast loading and instant responsiveness—unlocking the full potential of your system.
| Appearance | |
| Type | M.2 2280 |
|---|---|
| Dimensions | Double-sided 80 mm x 22 mm x 3.77 mm (3.15″ x 0.87″ x 0.15″) |
| Weight | 10 g (0.35 oz) |
| Heatsink Type | Graphene heatsink |
| Interface | |
| Bus Interface | NVMe PCIe Gen5 x4 |
| Storage | |
| Flash Type | 3D NAND flash |
| Capacity | 1 TB/2 TB/4 TB |
| Operating Environment | |
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) |
| Operating Voltage | 3.3V±5% |
| Performance | |
| Sequential Read/Write (CrystalDiskMark) | 4 TBUp to 14,500/13,500 MB/s 2 TBUp to 14,000/11,000 MB/s 1 TBUp to 14,000/9,800 MB/s |
| 4K Random Read/Write (IOmeter) | 4 TBUp to 2,000,000/1,400,000 IOPS 2 TBUp to 1,900,000/1,400,000 IOPS 1 TBUp to 1,600,000/1,400,000 IOPS |
| Terabytes Written (TBW) | 4 TB3,000 TBW 2 TB1,500 TBW 1 TB750 TBW |
| Mean Time Between Failures (MTBF) | 2,000,000 hour(s) |
| Drive Writes Per Day (DWPD) | 0.411 (5 yrs) |
| Note | Speed may vary due to host hardware, software, usage, and storage capacity.The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.Terabytes Written (TBW) expresses the endurance under the highest capacity.Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives. |
| Warranty | |
| Certificate | CE/UKCA/FCC/BSMI/KC/RCM |
| Warranty | Five-year Limited Warranty |
| Warranty Policy | Please click here for more information about the Transcend Warranty Policy.Warranty does not apply when SSD Scope’s lifetime indicator displays 0% within the warranty coverage.Removal of heatsink may cause damage to the SSD not covered under Transcend’s warranty policy. |
| System Requirement | |
| Operating System | Microsoft Windows 7 or laterLinux Kernel 2.6.31 or later |
| Note | Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information. |
