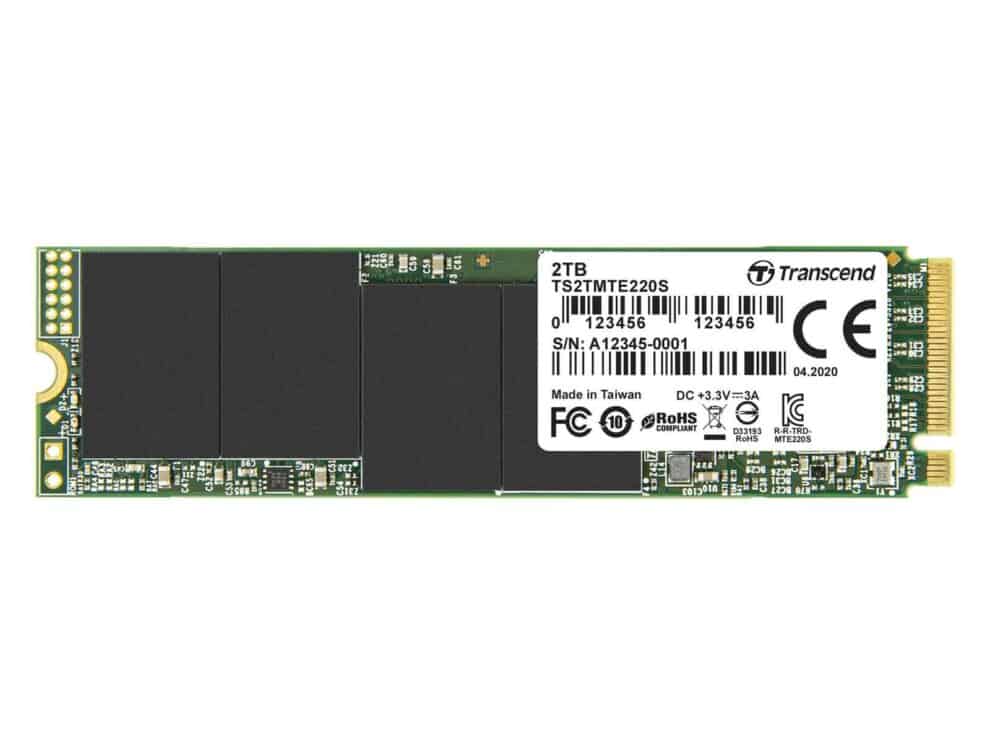

TRANSCEND 2TB MTE220S PCI-E M.2 2280 SSD NVMe 1.3- 3D TLC with DRAM CacheAppearance
Dimensions: 80 mm x 22 mm x 3.58 mm
Weight: 8g
Bus Interface: NVMe PCIe Gen3 x4
Storage
Flash Type: 3D NAND flash
Capacity: 2TB
Operating Environment
Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
Operating Voltage: 3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark): up to 3,500/2,900 MB/s
4K Random Read/Write (IOmeter): up to 340,000/360,000 IOPS
Terabytes Written (TBW): 4,400 TBW
Mean Time Between Failures (MTBF): 2,000,000 hour(s)
Drive Writes Per Day (DWPD): 1.2 (5 yrs)
System Requirement
Operating System: Microsoft Windows 7 (additional driver required)
Microsoft Windows 8 (additional driver required)
Microsoft Windows 10
Linux Kernel 2.6.31 or later
