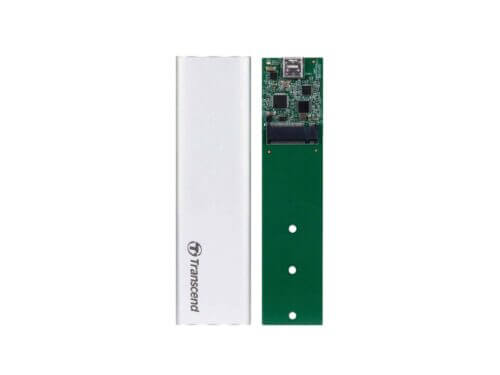

Transcend’s CM42 and CM80 are enclosures in different form factors designed specifically for M.2 SATA SSDs. By following the step-by-step installation guide, you can transform an M.2 SATA SSD into a portable USB 3.1 Gen 1 external drive, maximizing utilization.
Dimensions: CM42: 81.41 mm x 33.6 mm x 7.5 mm
CM80: 120.16 mm x 33.6 mm x 7.5 mm
Weight: CM42: 29 g
CM80: 41 g
Connection Interface: USB 3.1 Gen 1
Bus Interface: SATA III 6Gb/s
Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
Storage Temperature: -40°C (-40°F) ~ 85°C (185°F)
Operating Voltage: 5V
Note: The M.2 SSD Enclosure Kit is not compatible with PCI-Express M.2 SSDs.
