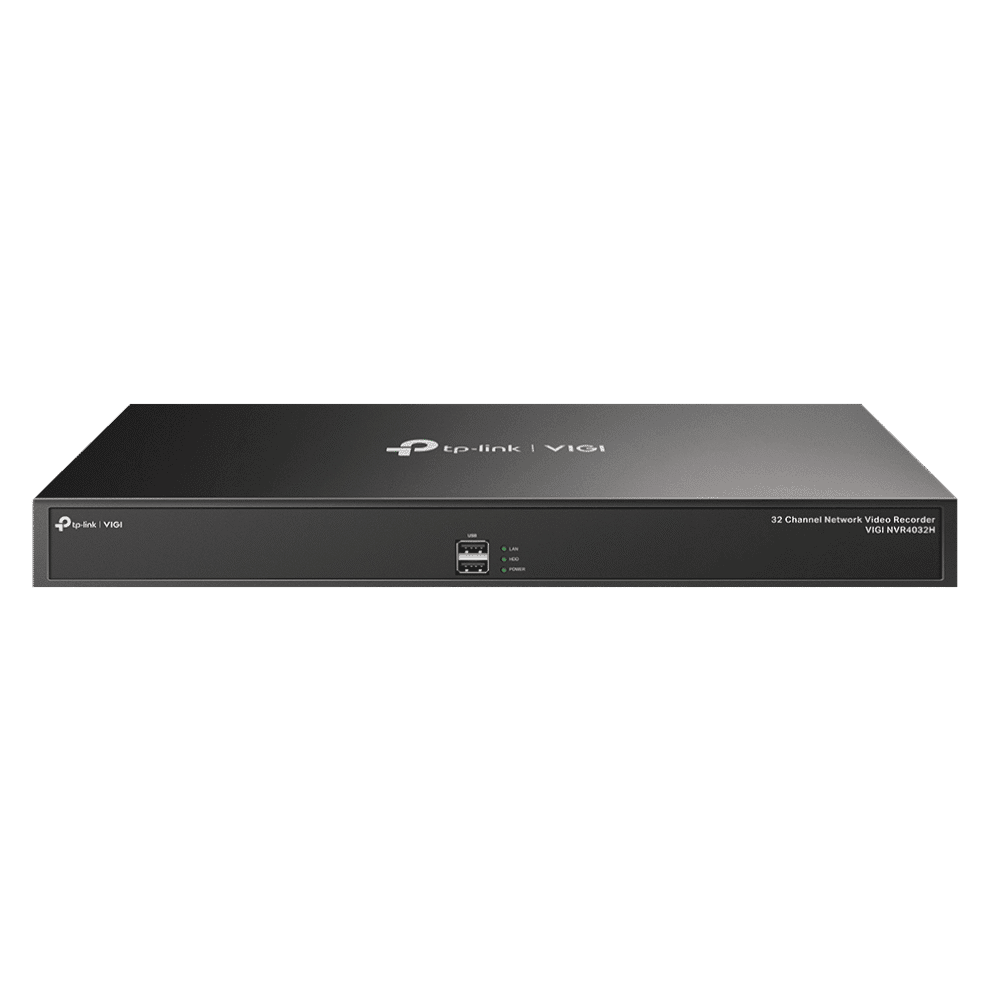

TP-Link VIGI NVR4032H VIGI 32 Channel Network Video Recorder

• ace Recognition: Enhances access management and maximizes security.
• Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
• Mass Storage: Supports 4× SATA, up to 10 TB each
• 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.
• 1 HDMI and 1 VGA Interface: Supports independent video output.
• 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
• ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

NETWORK
Incoming Bandwith: 320 Mbps

Outgoing Bandwidth: 320 Mbps

GENERAL
Package Contents:
– VIGI Network Video Recorder
– Mouse
– Installation Guide
– Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
– Mounting Brackets, Screws and Rubber Feet

Working Temperature: -10–55 °C

Working Humidity: 10%~90% RH Non-Condensing

Dimensions( W X D X H ): 440 × 330 × 44 mm

Net Weight: 4.0 Kg

Power Supply: 100-240 VAC, 50 to 60HZ, 1.5A

Power Consumption:
– 5 W (Without Disk)
– 48 W (With Disk)

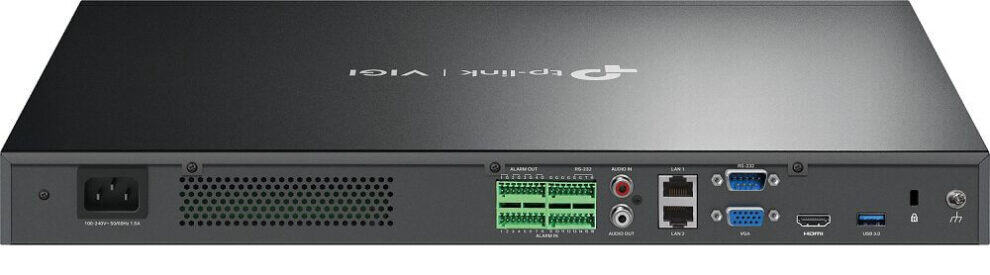

EXTERNAL INTERFACE
Network Interface:
– 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
– Interface

USB Interface: USB Interface

Audio Interface: 1, Audio In; 1, Audio Out

Alarm In/Out: 16/4

Serial Interface: 1, RS232

NETWORK MANAGEMENT
Network Protocols: UPnP (Plug and Play), NTP (Network Timing)

Interoperability: ONVIF, CGI

Mobile Phone Access: Android, iOS

Browser: Chrome (57+), Firefox (52+), Edge (91+)

HARD DISK
SATA: 4 SATA Interfaces

Capacity: Up to 10 TB Capacity for Each HDD

ALARM
General Alarm: Motion Detection, Video Tampering, Intrusion Detection,

Line-Crossing: Detection

Anomaly Alarm: Video Loss, Offline and IP Conflict,Disk Exception, Login Exception, Fan Exception

Alarm Linkage: Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm

RECORD PLAYBACK
Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode: Regular Backup, Video Clip Backup

Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

VIDEO/IMAGE
IP Video Input: 32-Channel

Multi-View Dispaly: 1/4/6/8/9/16/25/32/36

Video Output Mode: HDMI/VGA Independent Output

Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz

VGA Output Resolution: 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz,1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz,1024×768/60Hz

DECODING
Decoding Format: H.265+/H.265/ H.264+/H.264

Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback: 16-Channel

Capability: 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
