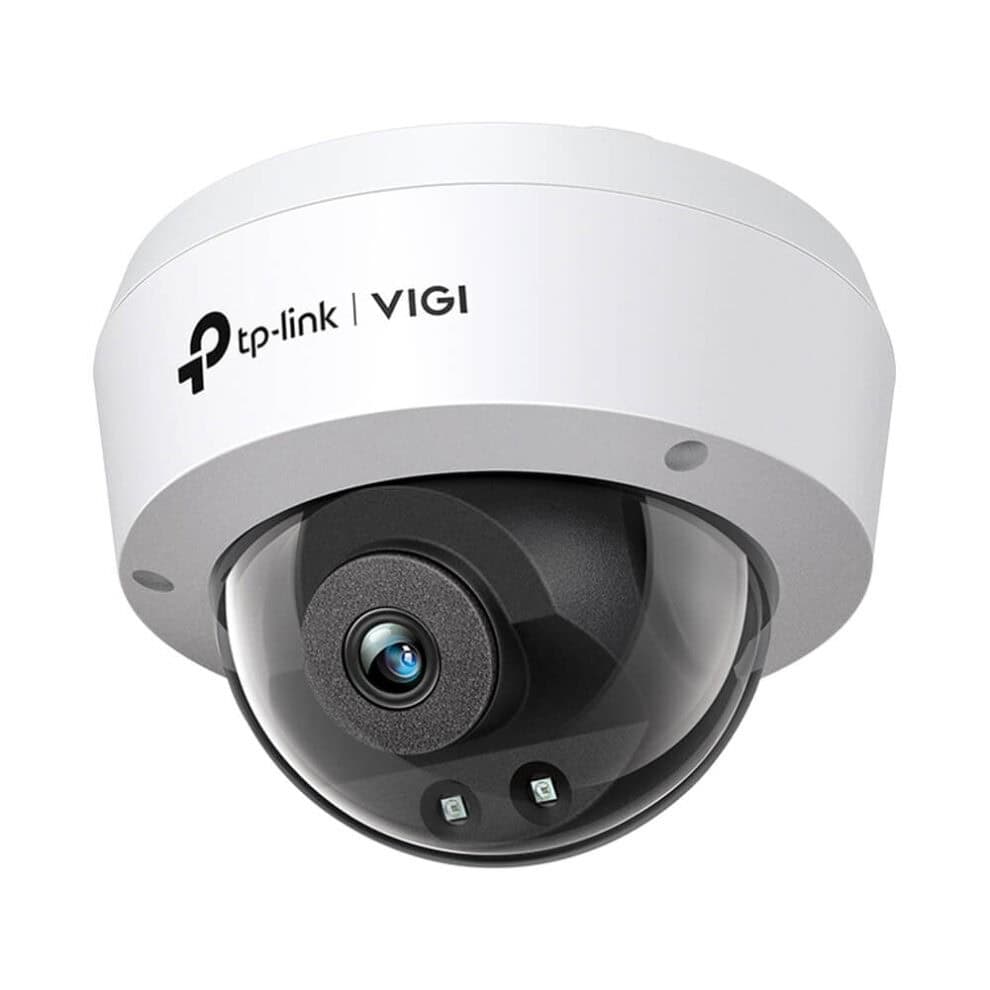

- 2MP Full-High Definition: The VIGI C220I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
- IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C220I comes with two different lens types to better suit your security needs.
- Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
CAMERA
Image Sensor: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Aperture:
– 2.8 mm: F2.2
– 4 mm: F2.0
Lens: 2.8 mm/ 4 mm
Lens Mount: M12
Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Digital Noise Reduction: 3D DNR
WDR: DWDR
Weatherproof Rating: IP67
IR Working Distance: 30m
Viewing Angle:
– 2.8mm: 88.2°/48.7°/106.5°(H/V/D)
– 4mm: 74.6°/41.3°/88.1°(H/V/D)
LENS
Type: Fixed Focal Lens
Focal Length: 2.8 mm/4 mm
Aperture:
– 2.8 mm: F2.2
– 4 mm: F2.0
FOV:
– 2.8 mm:
Horizontal FOV:88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°
– 4 mm:
Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°
Lens Mount: M12
DORI Distance:
– 2.8 mm:
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)
– 4 mm:
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)
ANGLE ADJUSTMENT (MANUAL)
Range:
– Pan: 0° to 355°
– Tilt: 0° to 75°
ILLUMINATOR
IR LED:
– Quantity: 2
– Range: 30m
– Wavelength: 850nm
White LED: N/A
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 1920 × 1080
Main Stream:
– Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
1920×1080, 1280×960, 1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream:
– Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
704×576, 640×480, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
– Main Stream: 256 Kbps to 4 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
AUDIO
Audio Communication: N/A
Audio Input: N/A
Audio Output: N/A
Audio Compression: N/A
Audio Sampling Rate: N/A
Environment Noise Filtering: N/A
Audio Bit Rate: N/A
NETWORK
Protocol:
– TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
– RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR
Web Browser: NETWORK
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Message Push
Linkage Method: N/A
Output Notification: Message Push
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm: N/A
Reset Button: N/A
Power: N/A
Button: –
Video Output: –
On-board Storage: N/A
Built-in Microphone: N/A
Built-in Speaker: N/A
Audio: N/A
GENERAL
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents:
– VIGI Network Camera
– Quick Start Guide
– Waterproof Cable Attachments
– Mounting Accessories
Dimensions( H X W X D ): 115 × 115 × 86 mm
Material: Plastic
General Features: Two Streams, Mirror, Privacy
Masks, Password Reset via E-mail, HTTP Listening
Net Weight: 0.26 Kg
Gross Weight: 0.43 Kg
Power Consumption: PoE: Class 0
Power Supply: PoE (802.3af/at, class 0)
Vandal Resistant: IK10
Protection: IP67, IK10
Product Dimensions (L x W x H): 115× 86× 115 mm
Certifications: CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264
Frame Rate & Resolutions:
– Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920×1080, 1280×960, 1280×720
– Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704×576, 640×480, 352×288, 320×240
Max. Resolution: 2MP (1920 × 1080)
Video Streaming:
– Main Stream
– Sub-Stream
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Video Bit Rate: 64 Kbps to 4 Mbps
Day/Night Switch: Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
Region of Interest: 1 Region
