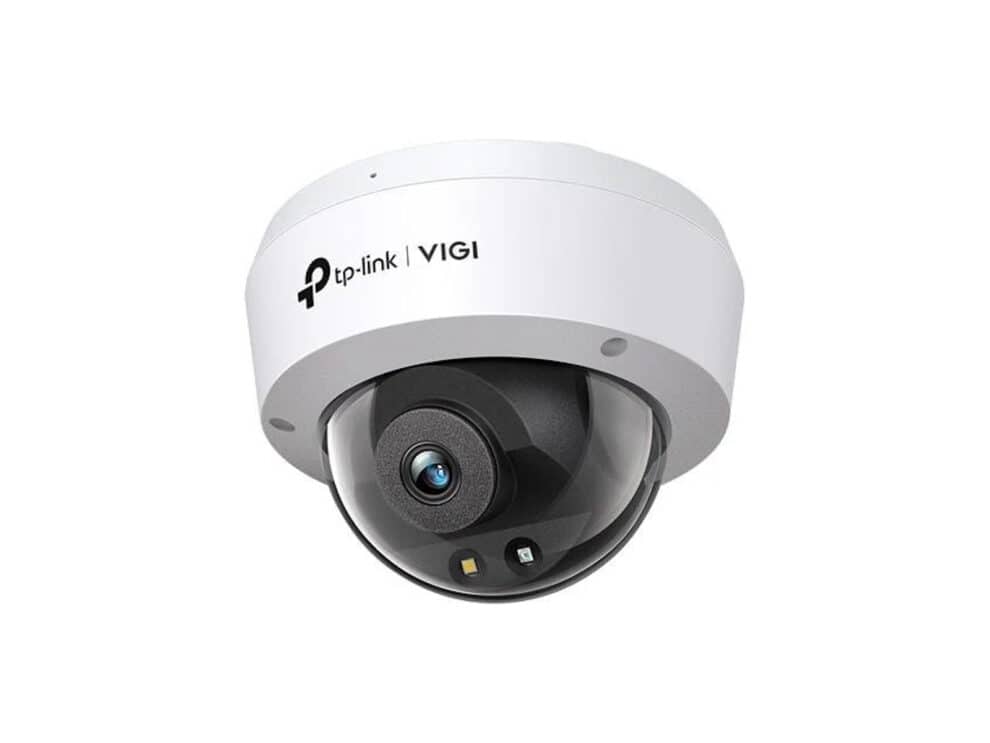

TP-Link VIGI 5MP Full-Colour Dome Network Camera

Camera

• Product Model: VIGI C250
• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Min. Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day & Night: IR Cut Filter
• Day/Night Switch: Day/Night/Auto/Schedule-Switch

Lens

• Type:Fixed Focal Lens
• Focal Length: 4 mm
• Aperture: 4 mm: F1.6
• FOV: 4mm:  Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°

• Lens Mount: M12*P 0.5

DORI Distance

• Lens: 4 mm
• Detect: 80 m (262 ft)
• Observe: 33 m(109 ft)
• Recognize: 16 m(52 ft)
• Identify: 8 m (26 ft)

Angle Adjustment (Manual)

• Range: Pan: 0° to 360°, Tilt: 0° to 85°

Illuminator

• IR LED:
• Quantity: 1
• Range: 30m
• Wavelength: 850nm

White LED:

• Quantity: 1
• Range: 30m

Illuminator On/Off Control : Auto/Scheduled/Always on/Always off

Video

• Max. Resolution:2880 X 1620
• Main Stream-

Frame Rate50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:2880×1620, 2688×1520, 2304×1296, 2048×1280, 1920×1080,1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Sub-Stream-

Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:704×576,640×480, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control:CBR, VBR
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps


• Image Settings:Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
• Image Enhancement BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range 120 dB
• SNR ≥ 52 dB
• Image Parameters Switch Yes
• Privacy Mask Up to 4 Masks
• ROI 1 Region
• OSD Setting Yes

Audio

• Audio Communication N/A
• Audio Input Yes
• Audio Output N/A
• Audio Compression Yes
• Audio Sampling Rate 8KHz
• Environment Noise Filtering Yes
• Audio Bit Rate 64 Kbps(G.711 alaw)
