Superior Range – High power amplifiers and high-gain antennas provide enhanced wireless range up to 10,000 sq ft.
Wall-Penetrating Wi-Fi – Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
3 Modes Functionality – Offers three wireless modes, including Router, Range Extender, and Access Point
450Mbps Wireless Speed – Ideal for video streaming, online gaming and VoIP
WIRELESS
Standards: Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: N450
2.4 GHz: 450 Mbps (802.11n)
WiFi Range: 4 Bedroom Houses3× Detachable 9 dBi High-Gain Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity: Legacy
Working Modes: Router Mode
Access Point Mode
Range Extender Mode
HARDWARE
Processor: Single-Core CPU

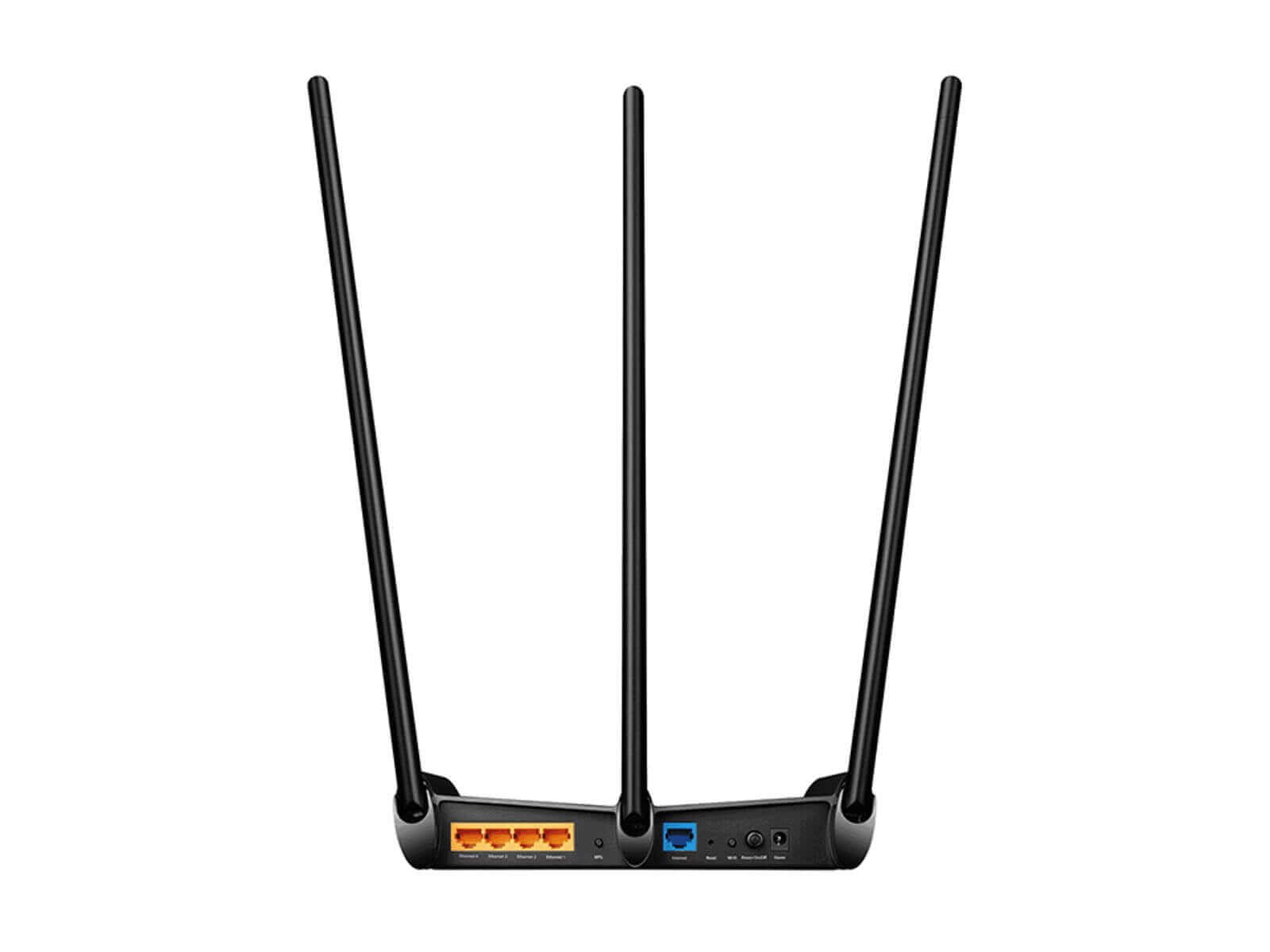

Ethernet Ports: 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons: Wi-Fi On/Off Button
Power On/Off Button
WPS Button
Reset Button
Power: 12 V ⎓ 1.5 A
SECURITY
WiFi Encryption: WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security: SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network: 1× 2.4 GHz Guest Network
VPN Server: OpenVPN
PPTP
SOFTWARE
Protocols: IPv4
IPv6
Parental Controls: URL Filtering
Time Controls
WAN Types: Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service: QoS by Device
NAT Forwarding: Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV: IGMP Proxy
IGMP Snooping
DHCP: Address Reservation
DHCP Client List
Server
DDNS: NO-IP
DynDNS
Management: Tether App
Webpage
