- 450Mbps wireless transmission rate brings smooth wireless N experience
- Supports multiple operating modes: Access Point, Range Extender, Multi-SSID and Client modes
- Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button
- Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector

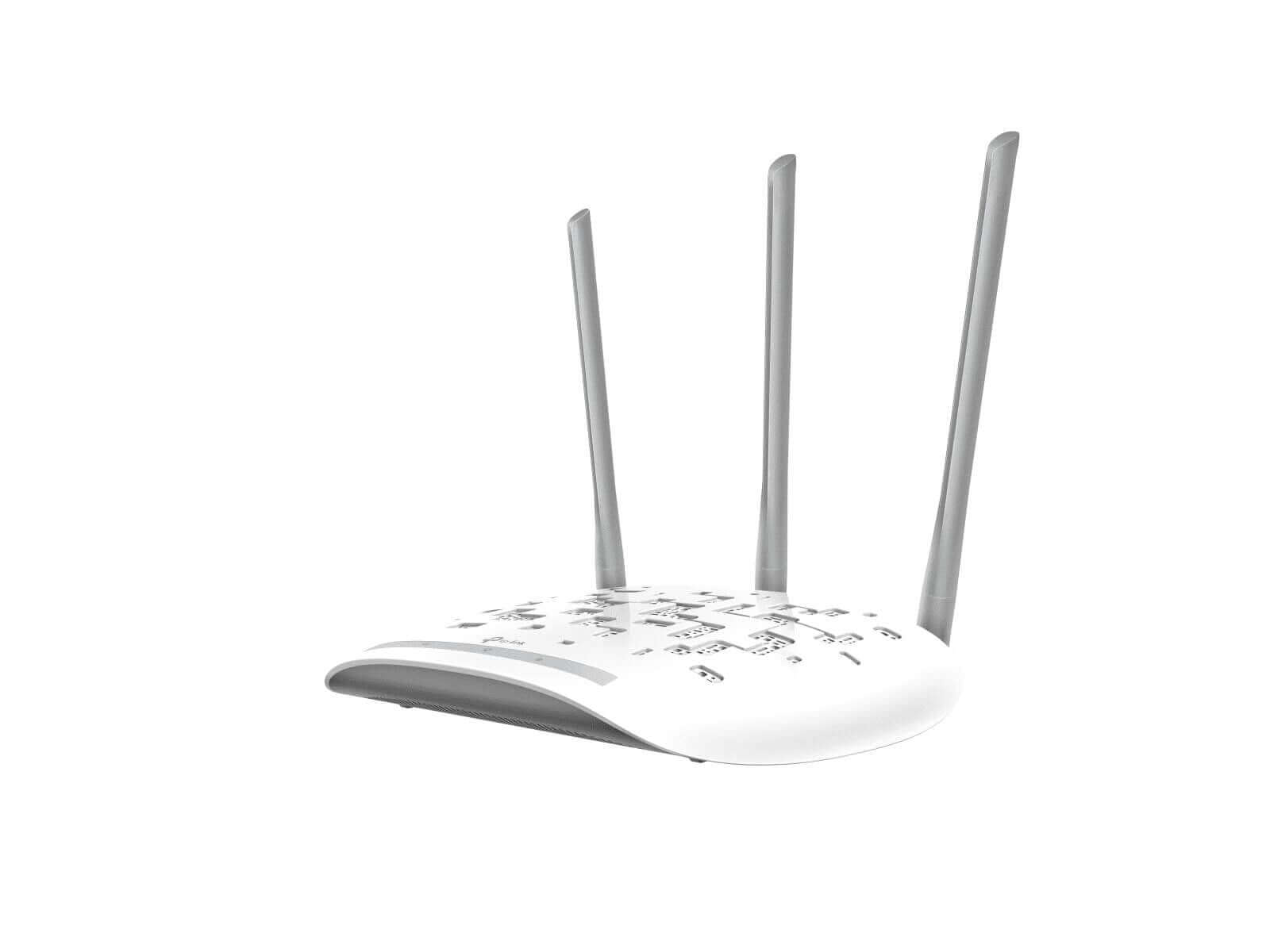

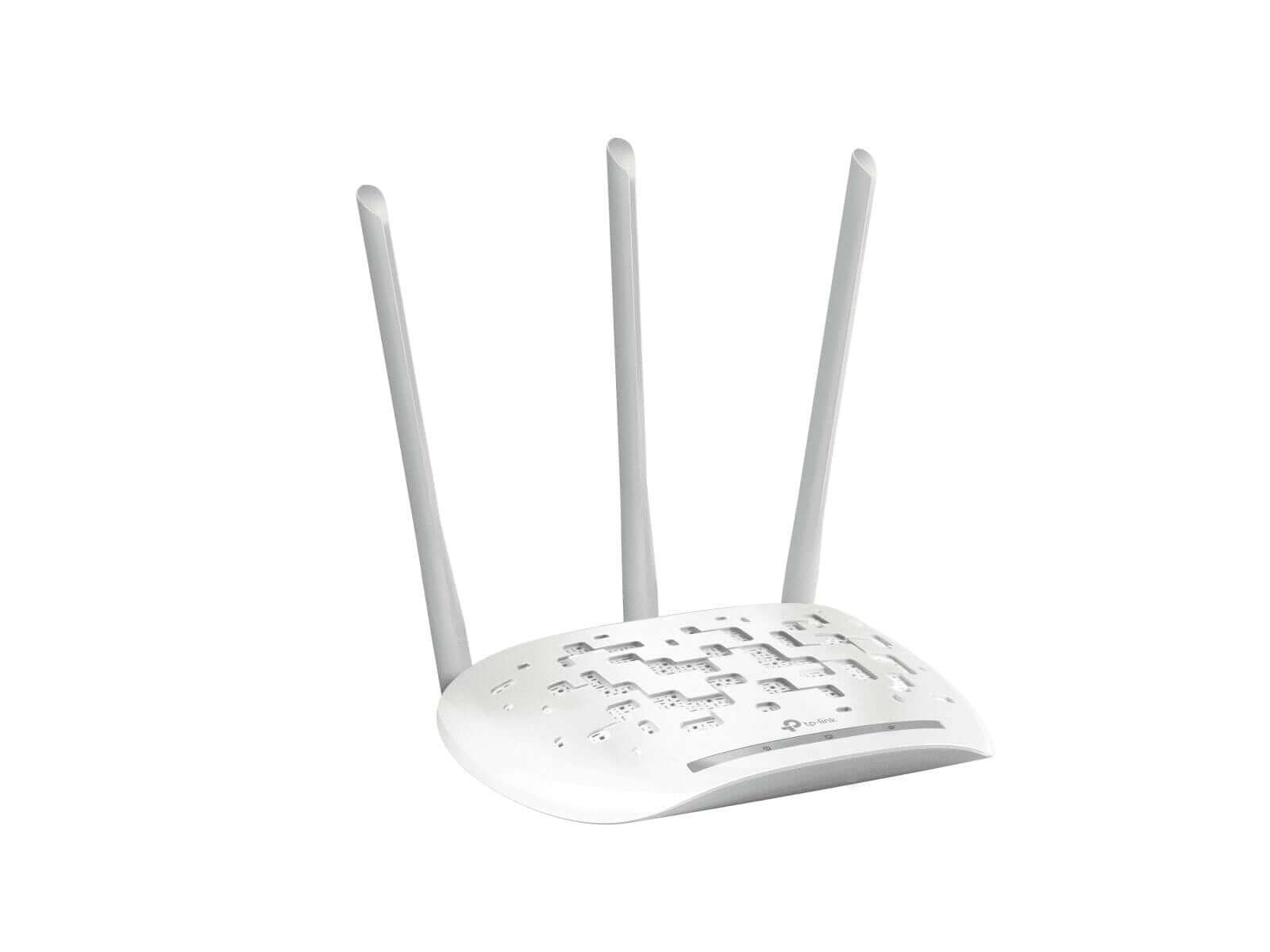

The TP-LINK Wireless N Access Point TL-WA901N is designed to establish or expand a scalable high-speed wireless N network or to connect an Ethernet-enabled device such as a game console, digital media adapter, printer, or network-attached storage device to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other application that you may wish to use.
HARDWARE FEATURES

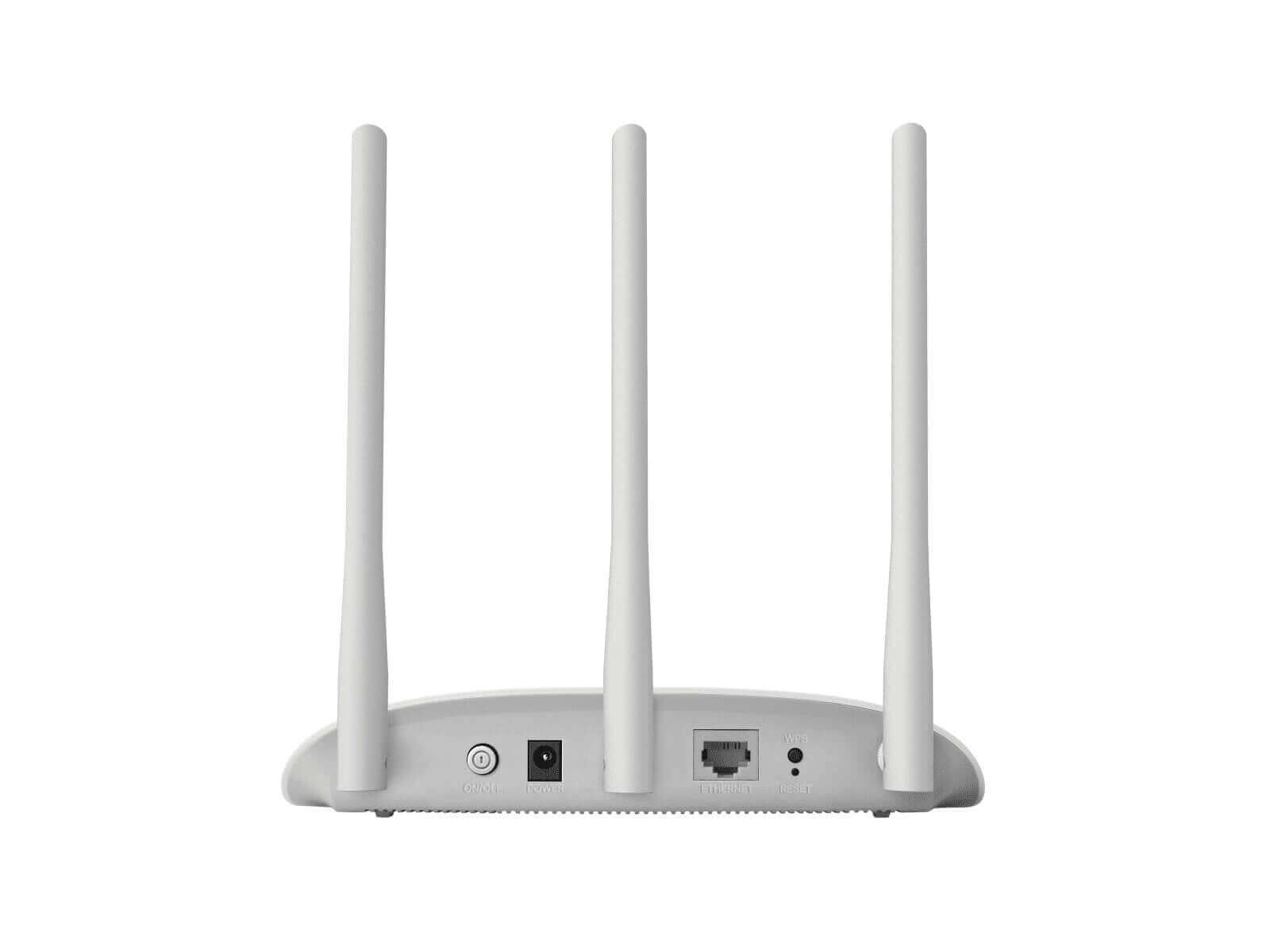

Interface: 1× 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button: Power On/Off Button, Reset Button, WPS Button
External Power Supply: 9VDC / 0.85A
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ): 7.7 × 5.3 × 1.4 in (195 × 134 × 36 mm )
Antenna Type: 3 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency: 2.4 GHz
Signal Rate: 450 Mbps at 2.4 GHz
Reception Sensitivity: 11g 54M: -76dBm
11n 20Mbps: -73dBm
11n 40Mbps: -70dBm
Transmit Power: CE: <20dBm; FCC: <30dBm Wireless Modes: Access Point, Range Extender, Client, Multi-SSID Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions DHCP: Server, DHCP Client List Quality of Service: WMM Management: SNMP Advanced Functions: Up to 30 meters PoE is supported
