- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
HARDWARE FEATURES
Interface:
– 16 PoE+ 10/100 Mbps RJ45 Ports
– 2× 10/100/1000 Mbps RJ45 Ports
– 2× Combo Gigabit SFP Slots
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-X MMF, SMF
Fan Quantity: 2 Fans
Physical Security Lock: Yes

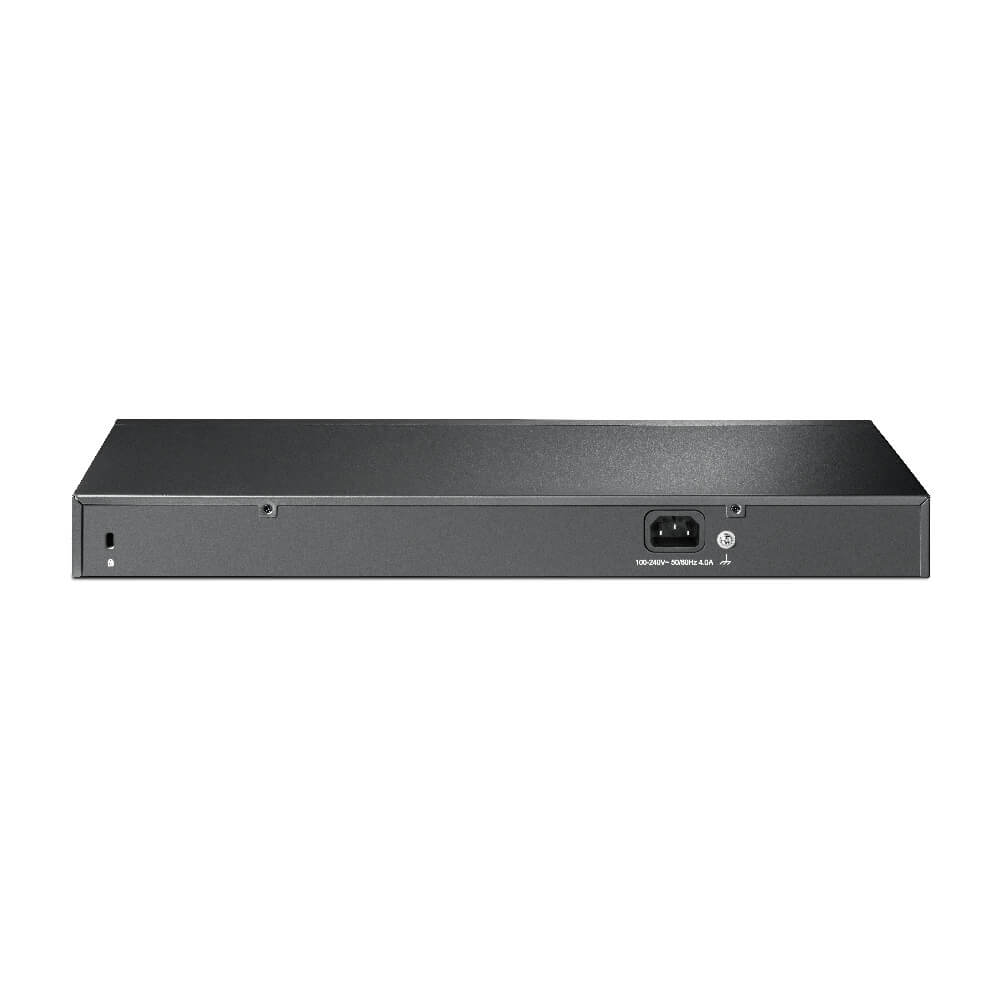

Power Supply: 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45):
– Standard: 802.3at/802.3af compliant
– PoE Ports: Ports 1–16
– PoE Power Budget: 250 W
Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption:
– 14.97 W (220/50Hz. no PD connected)
– 285.8 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation:
– 51.05 BTU/h (no PD connected)
– 974.58 BTU/h (with 250 W PD connected)
