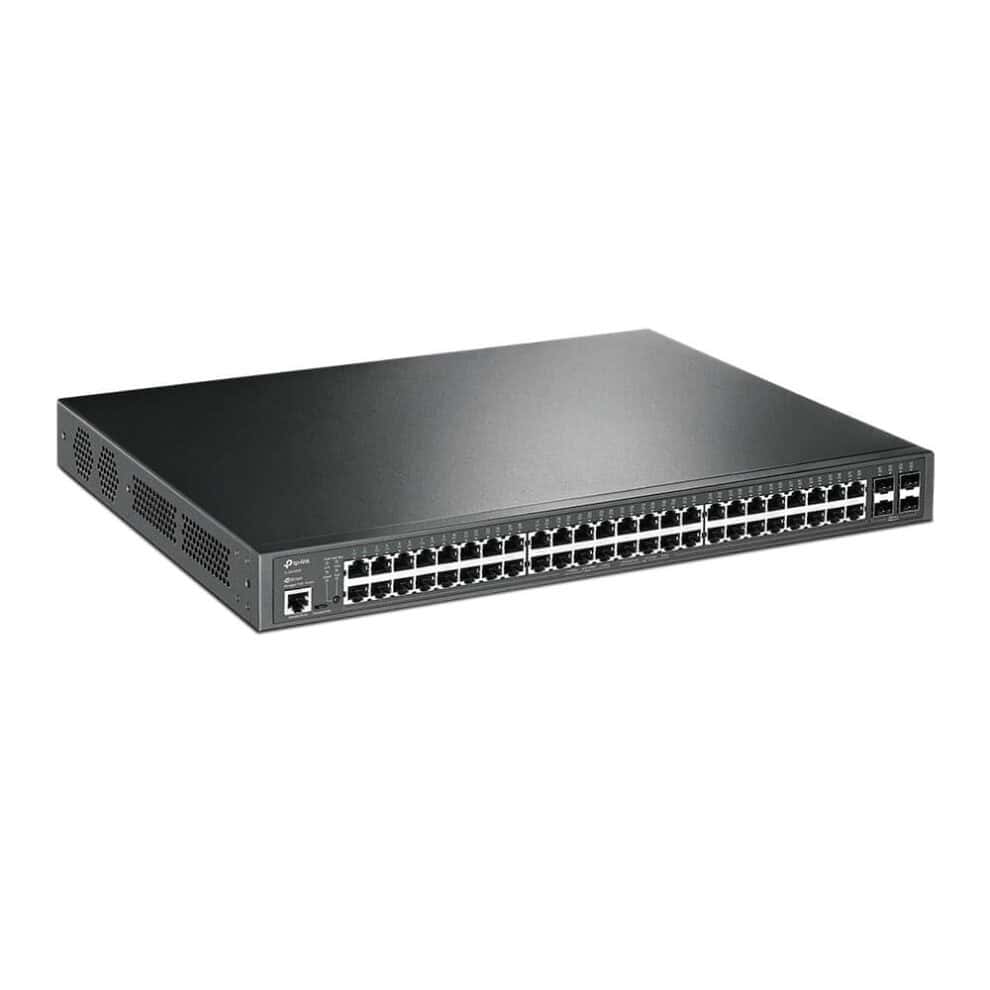

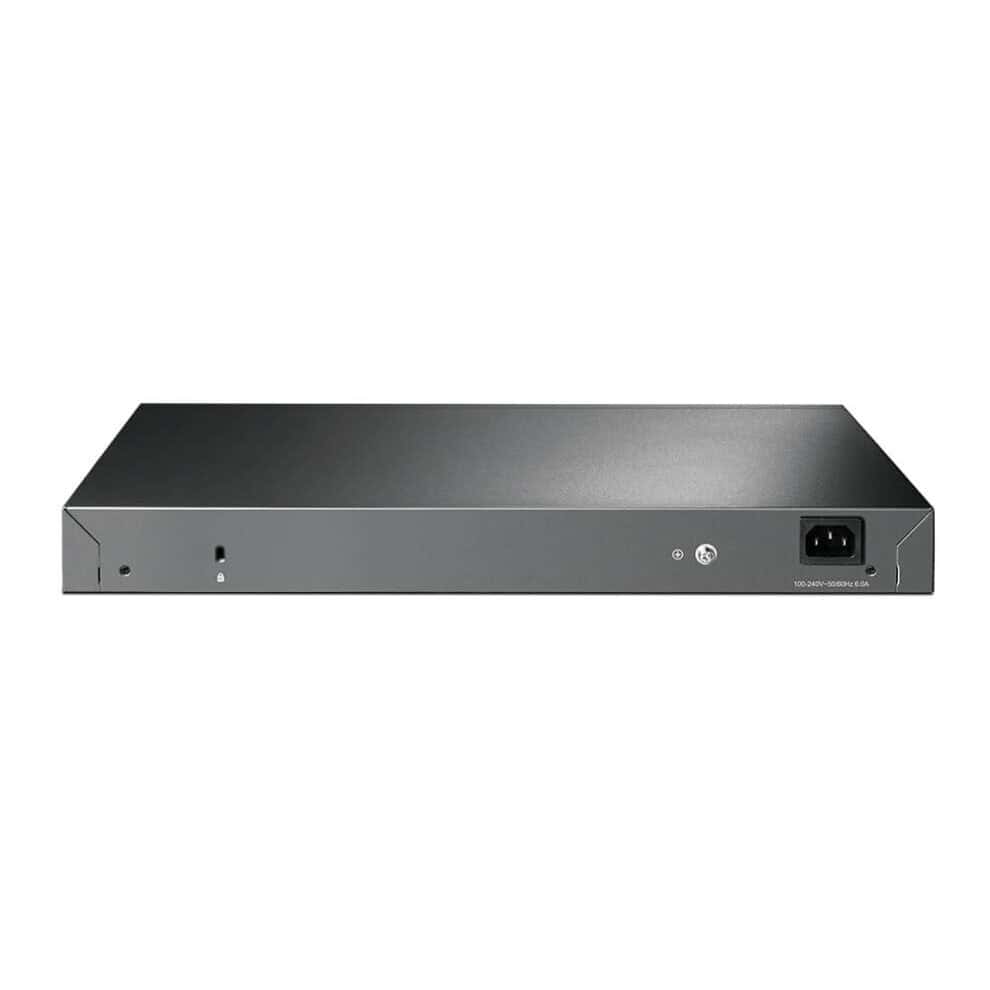

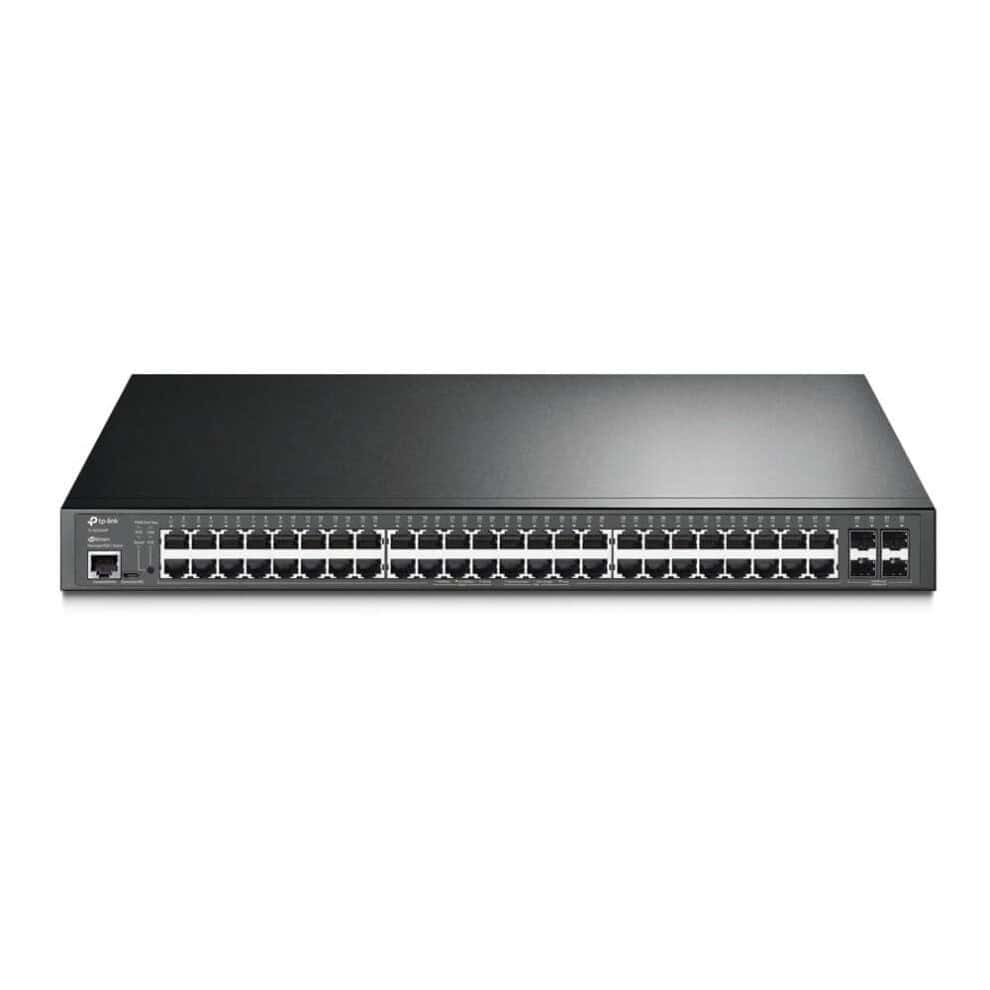

TP-Link TL-SG3452P JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

• 384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
• Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual

HARDWARE FEATURES
Interface:
– 48× 10/100/1000 Mbps RJ45 Ports
– 4× Gigabit SFP Slots
– 1× RJ45 Console Port
– 1× Micro-USB Console Port

Fan Quantity: 3

Power Supply: 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45):
– Standard: 802.3at/af compliant
– PoE+ Ports: 48 Ports, up to 30 W per port
– Power Budget: 384 W

PoE Ports (RJ45):
– Standard: 802.3at/af compliant
– PoE+ Ports: 48 Ports, up to 30 W per port
– PoE Power Budget: 384 W*

Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Mounting: Rack Mountable
Max Power Consumption:
– V1: 485.4 W (110 V/60 Hz) (with 384 W PD connected); 52.53 W (110 V/60 Hz) (no PD connected)
– V2: 482.8 W (110 V/60 Hz) (with 384 W PD connected)
– V3: 464.2 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation:
– V1: 1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 179.13 BTU/hr (110 V/60 Hz) (no PD connected)
– V2: 1647.5 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
– V3: 1584.08 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
