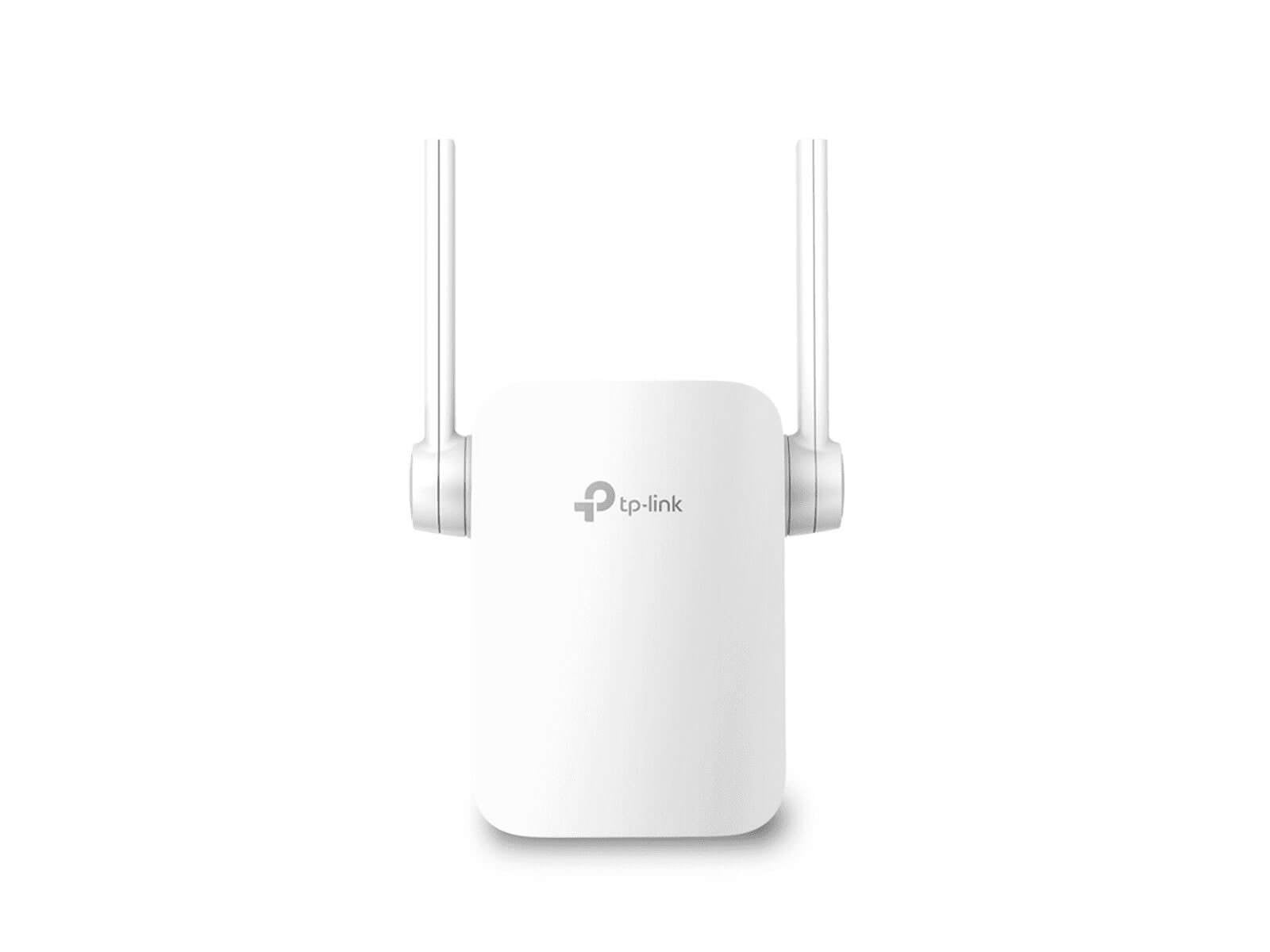

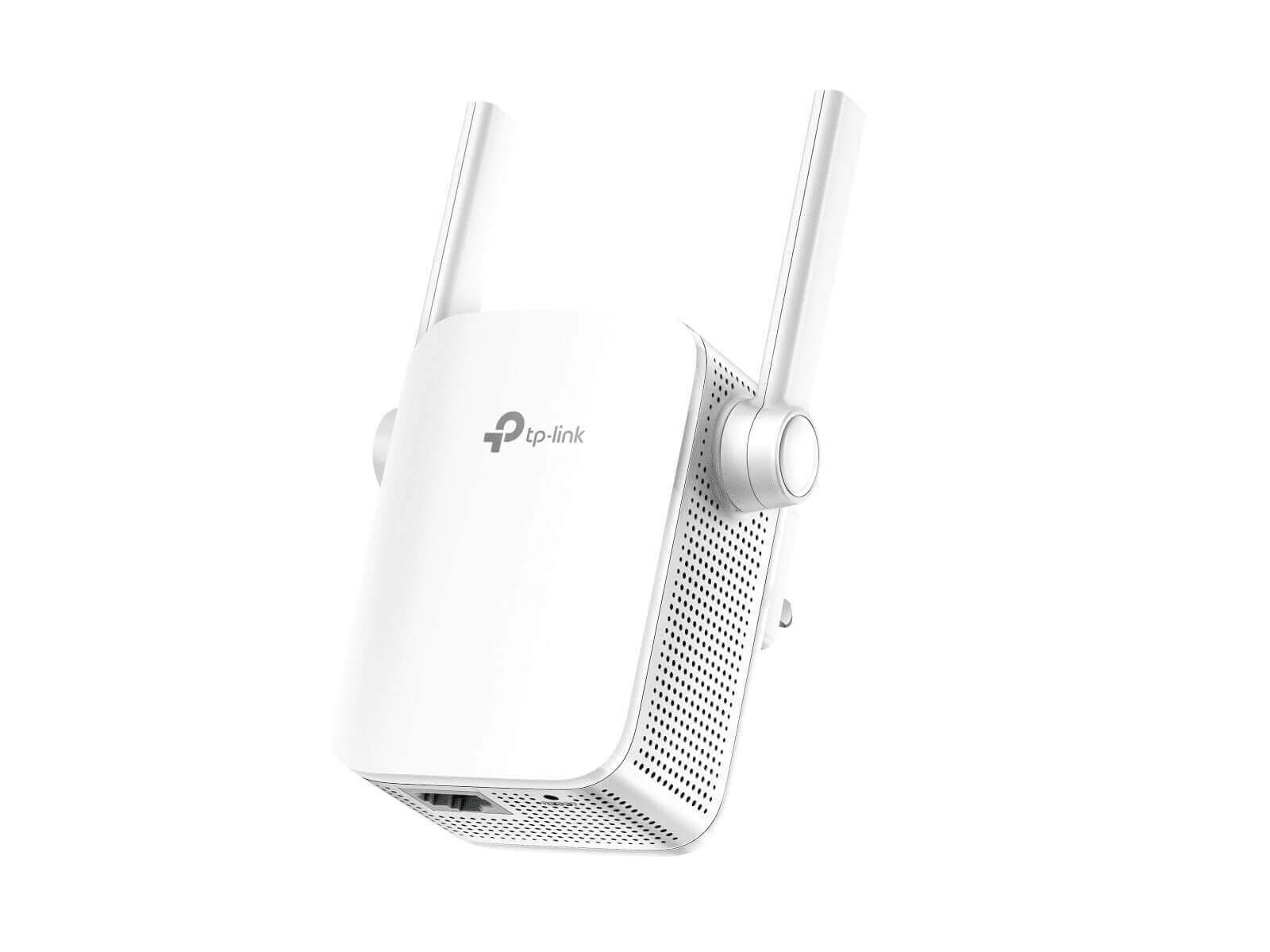

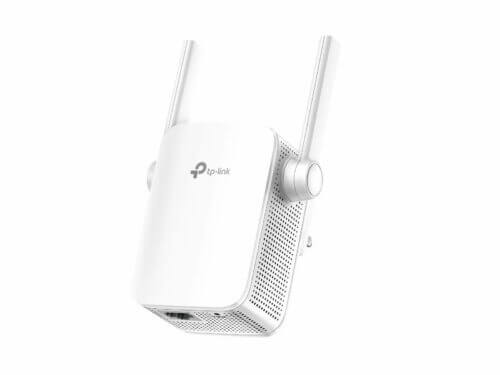

Tired of Wi-Fi dead zones in your home? The RE205 Range Extender connects to your Wi-Fi router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own, while reducing signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
- Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 750Mbps
- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(433Mbps) for more stable wireless experience
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
HARDWARE FEATURES
Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface: 1 x 10/100M Ethernet Port (RJ45)
Button: WPS Button, Reset Button
Power Consumption: 7.3W（max power consumption）
Dimensions ( W x D x H ): 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna: 2 x external
WIRELESS FEATURES
Frequency: 2.4GHz & 5GHz(11ac)
Signal Rate: 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity: 5GHz：
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER
2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER
Wireless Modes: Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions: Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security: 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power: <19.5dBm(2.4GHz) <19.5dBm(5GHz)
