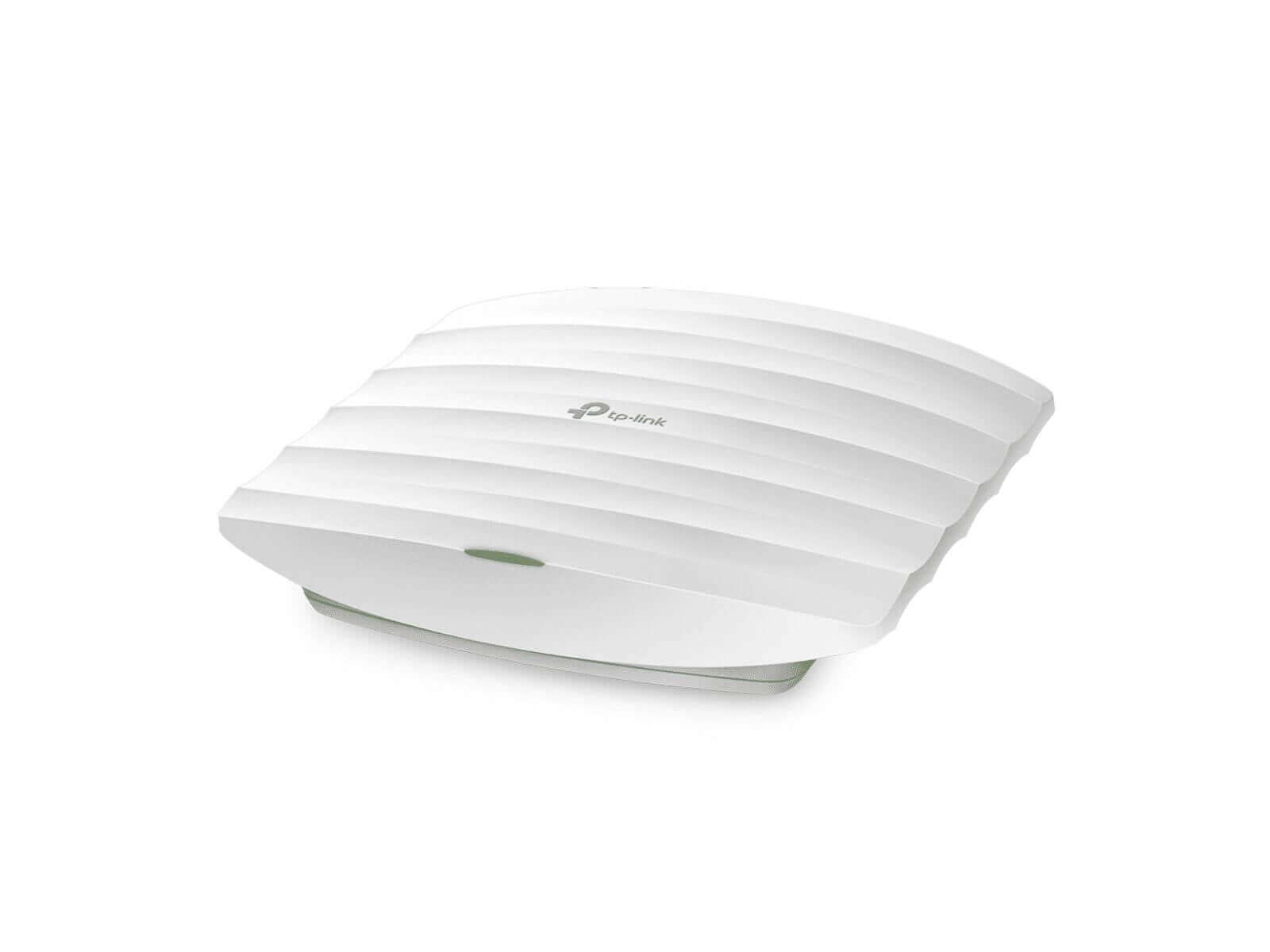

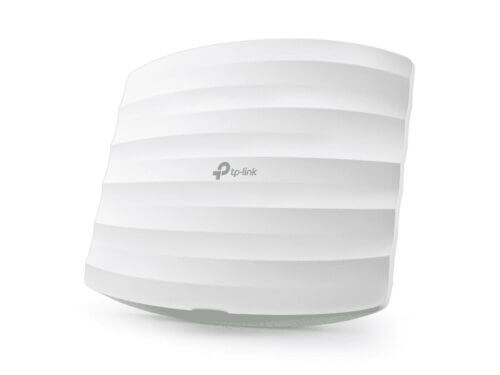

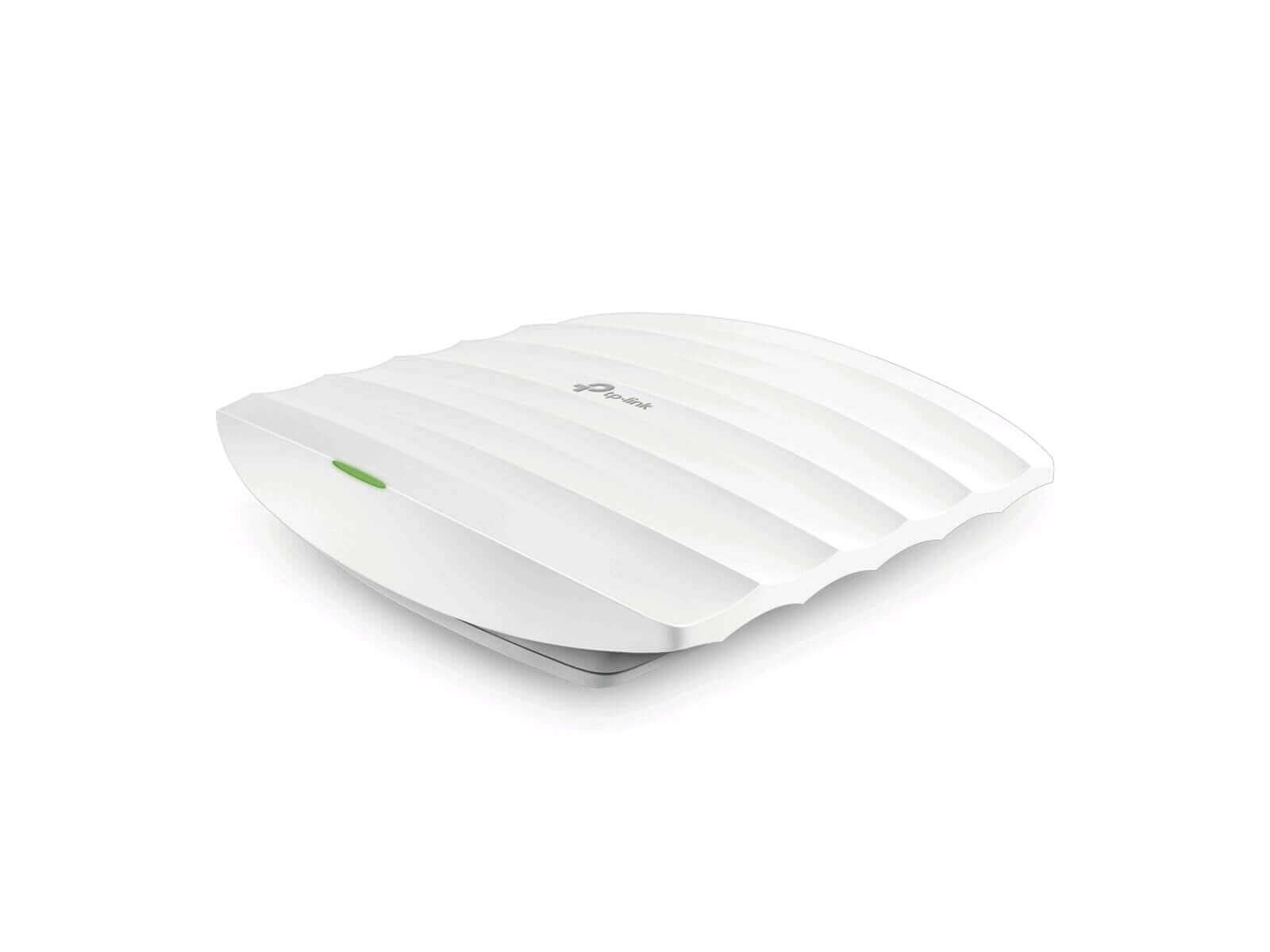

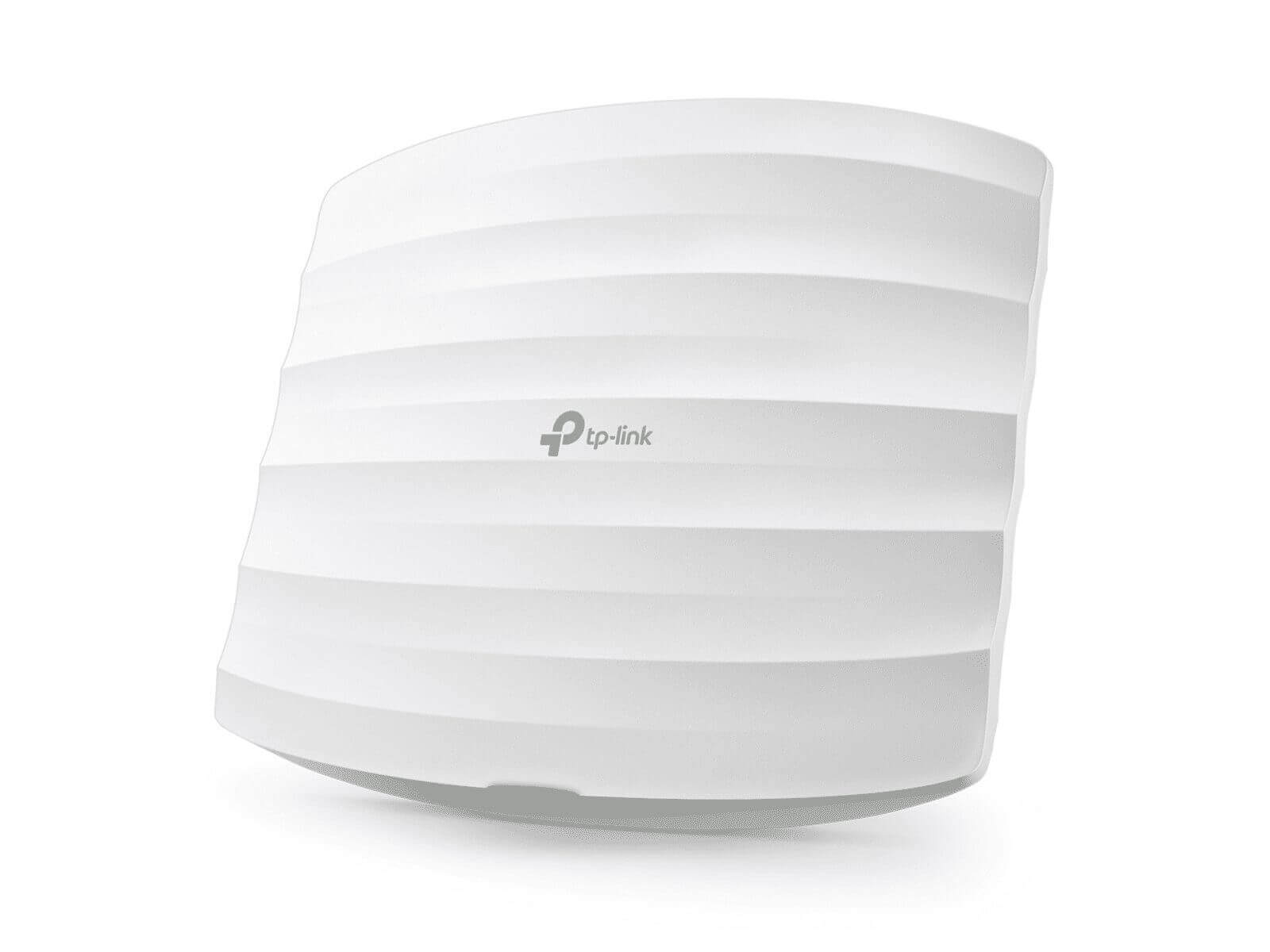

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
HARDWARE FEATURES
Interface: Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button: Reset
Power Supply: PoE or external 9VDC/0.6A power supply
Power Consumption: 2.8W
Dimensions: 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
Antenna Type: Internal 2* 4dBi Omni
Mounting: Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4-2.4835GHz
Signal Rate: 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity: 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions: Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power: CE:
≤19dBm(EIRP)
FCC:
≤21dBm
MANAGEMENT
Omada Cloud Access: Yes
Omada App: Yes
Omada Cloud Controller: Yes
Centralized Management: • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software: Yes
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
Management VLAN: Yes
