- Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
- Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
- Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
- Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.
HARDWARE FEATURES
Interface:

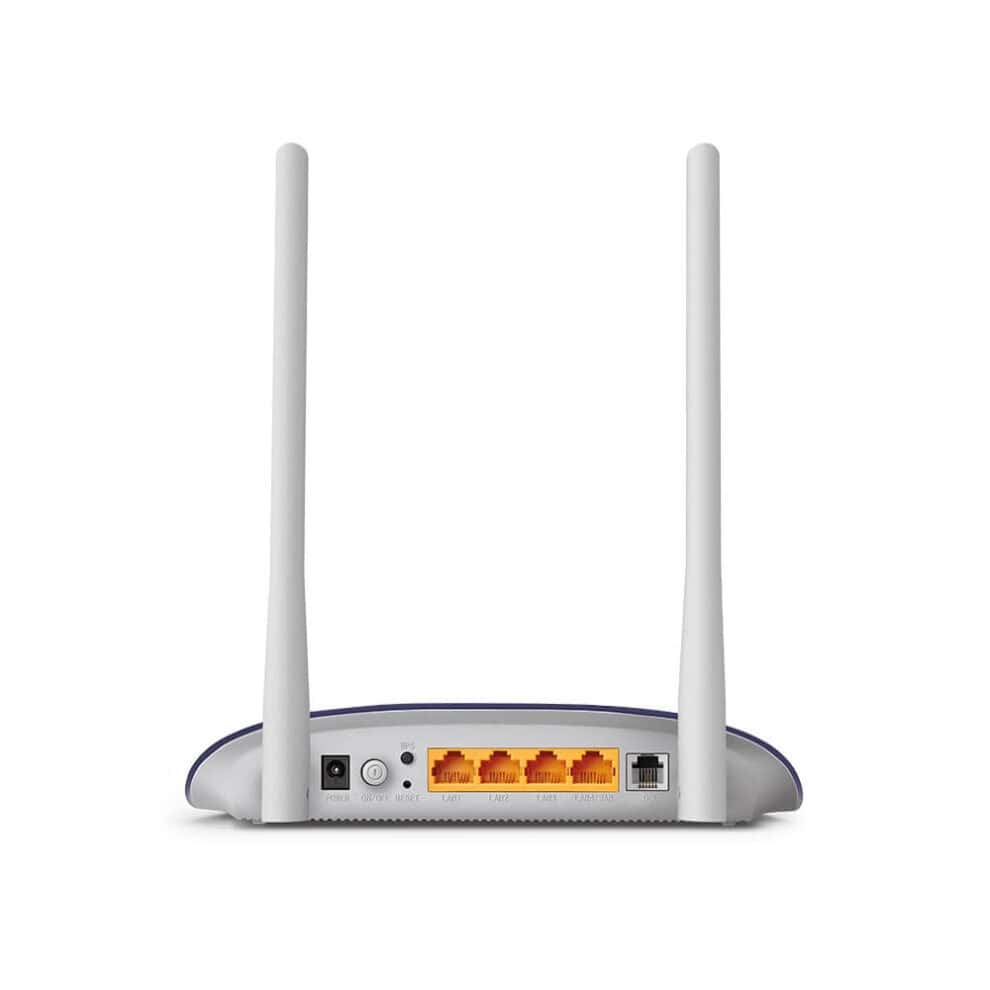

– 3 10/100Mbps RJ45 LAN Ports
– 1 10/100Mbps RJ45 LAN/WAN Port
– 1 RJ11 Port
Button:
– WPS Button
– RESET Button
– Power ON/OFF Button
External Power Supply: 9VDC/0.6A
IEEE Standards: IEEE 802.3, 802.3u
VDSL2 Standards:
– ITU-T G.993.2
– ITU-T G.993.5 (G.vector)
– ITU-T G.998.4 (G.INP)
Dimensions ( W x D x H ): 181.6 x 129.7 x 36.2mm
Antenna Type: Omni directional, Fixed
Antenna Gain: 2 x 5dBi
WIRELESS FEATURES
Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
Frequency: 2.400-2.4835GHz
Transmit Power: <20dBm(EIRP)
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service: WMM, Bandwidth Control (IP QoS)
Advanced Features: Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
Security: NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls
Operating Modes: VDSL/ADSL Modem Router, Wireless Router
Management: Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
VPN Pass-Through: IPSec VPN
Protocols: Supports IPv4 and IPv6
ATM/PPP Protocols:
– PPPoE (RFC2516)
– PPPoA (RFC 2364)
– MERIPoE (RFC 1483 Routed)
– IPoA (RFC1577/2225)
– Bridge (RFC1483 Bridge)
APP: Tether App
NAT: Virtual Server, Port Triggering, DMZ, ALG, UPnP
