‘- 2K QHD-Now with 1.7 times more pixels than 1080p, providing clearer videos and photos
– 180-Day Battery Life*-The rechargeable and removable battery with a low-power protocol extends your usage
– Full-Color Night Vision-Reveal high-fidelity details and color at night with the starlight sensor
– Smart AI Detection and Notification-Smart AI identifies people, pets, packages, and cars, notifying users as needed
– Wire-Free Placement-No wires means you can place the cameras almost anywhere inside or outside-whatever works for you!

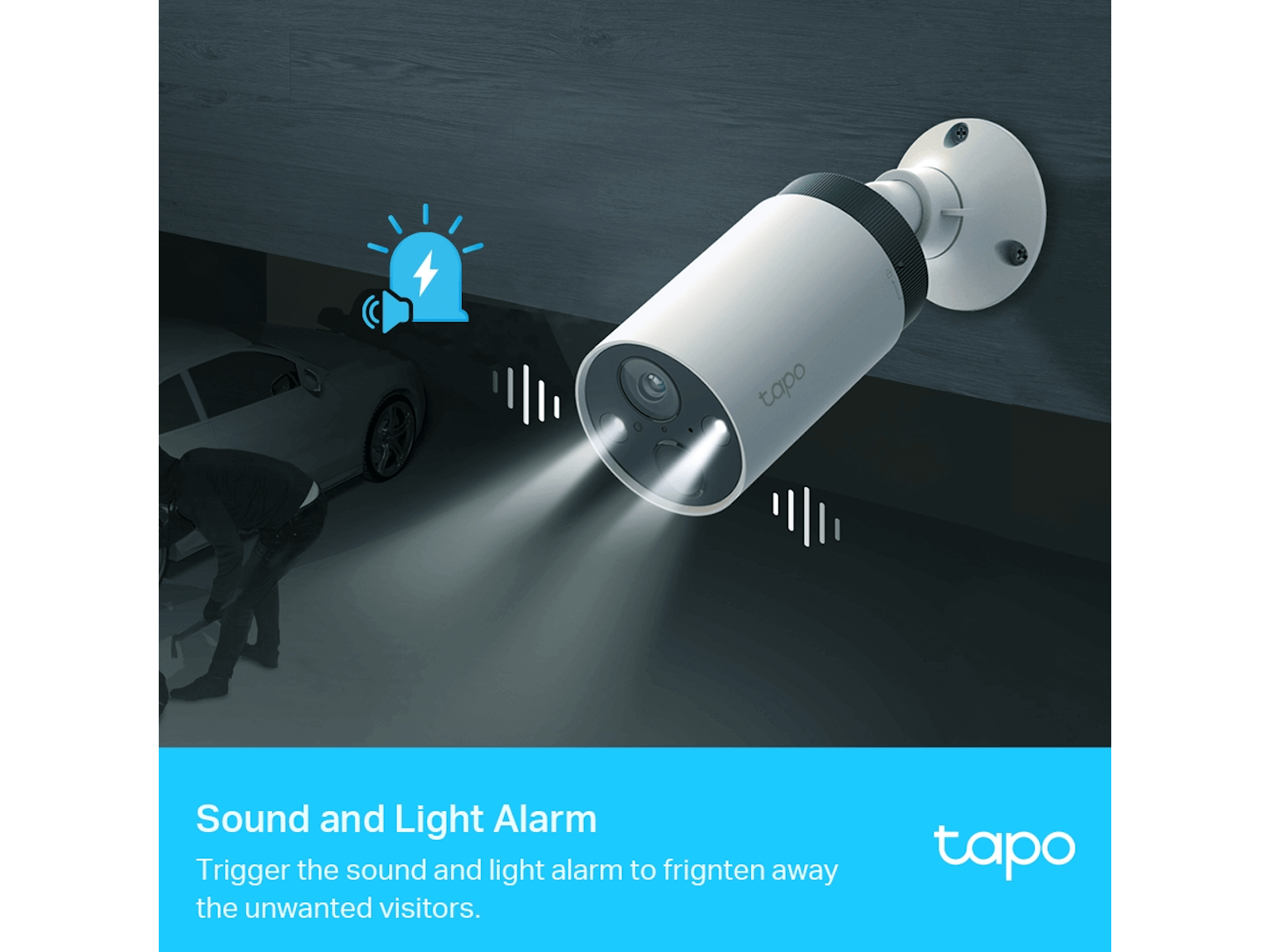

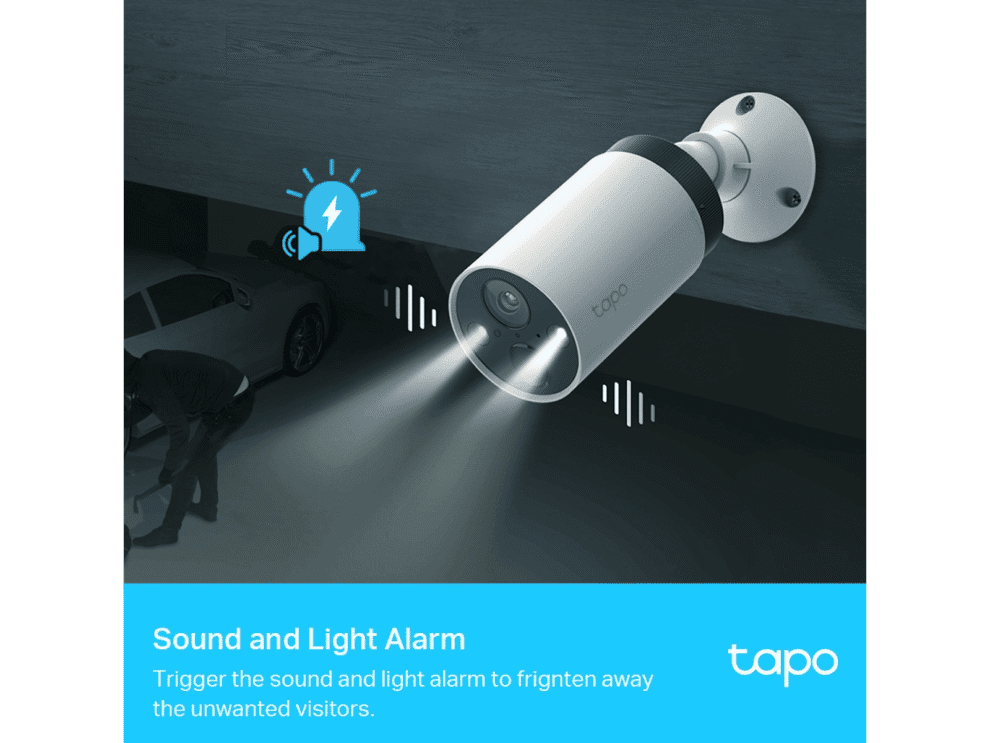

– Light and Sound Alarm-Triggers sound and light as an alarm when motion is detected
– Two-Way Audio-Enables communication through a built-in microphone and speaker
– Flexible Storage Choices-Save recorded videos on the hub-installed microSD card† (up to 256 GB) or by using Tapo Care** cloud storage services

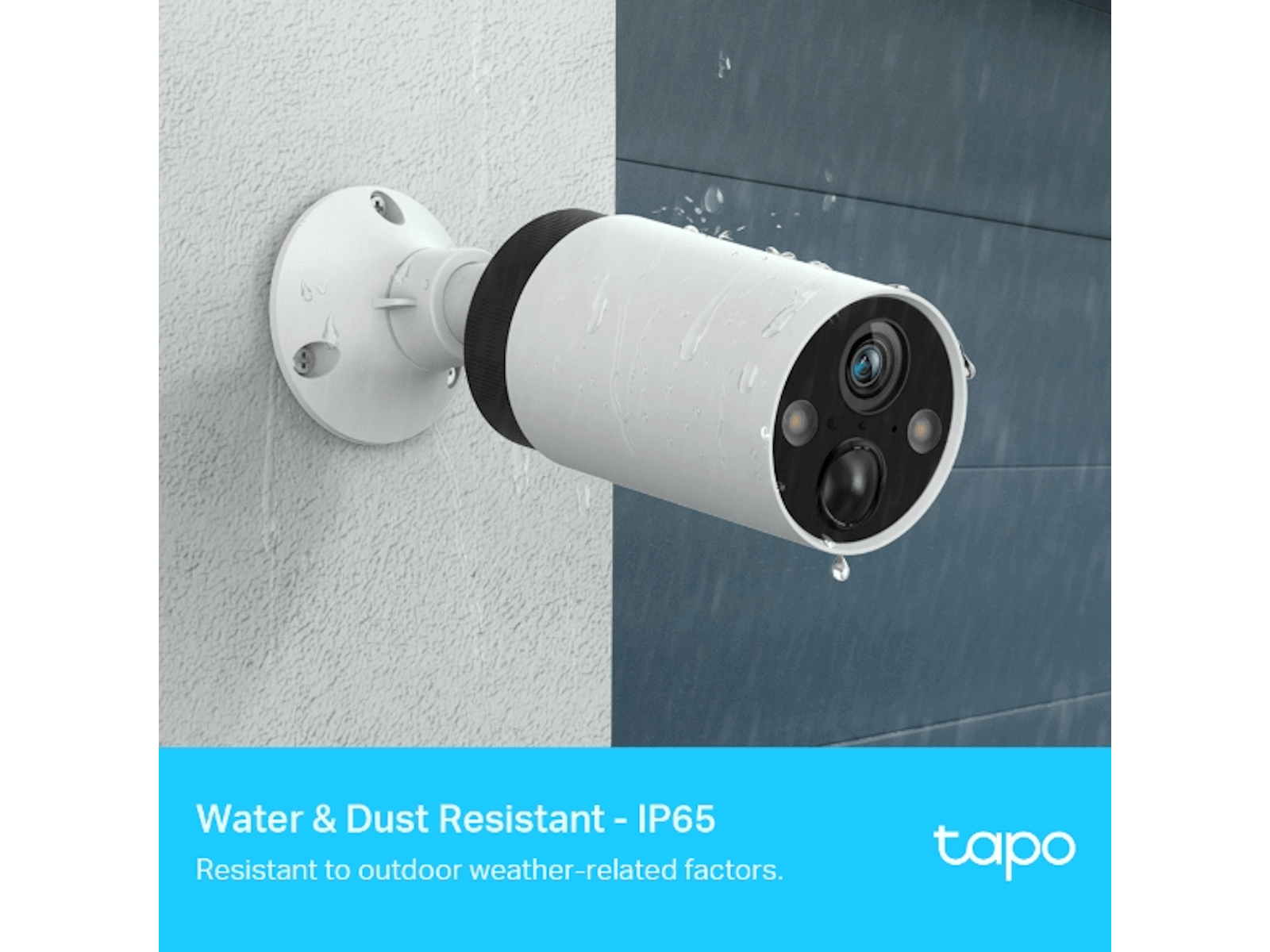

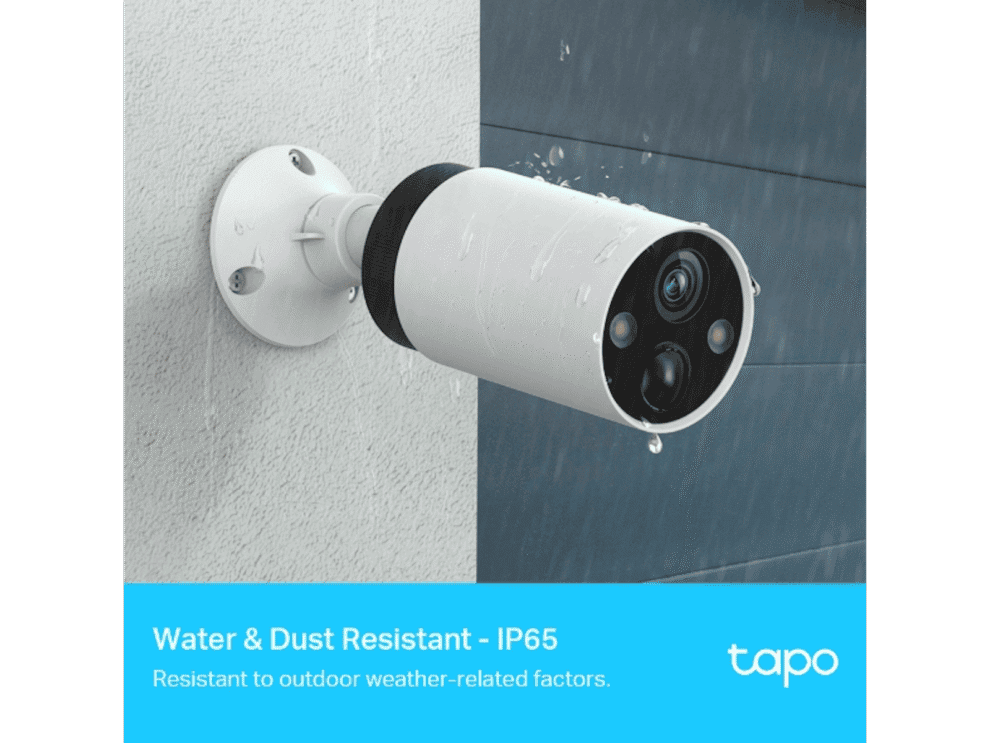

– IP65 Water&Dust Resistant-Offers excellent waterproof and dustproof performance for outdoor scenarios
CAMERA
Image Sensor: 1/3“
Lens: F/NO: 1.61±10%; Focal Length: 3.18mm±5%
Night Vision: 850 nm IR LED up to 49 ft/15m
Lighting: 2× Built-in Spotlights
Interface & Button: 1× SYNC/RESET Button
Hub Compatibility: Compatible with H200 (Included)
Viewing Angle: 113°
Resolution: 2K QHD (2560 × 1440 px)
HUB
Device Compatibility:
– Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
– All Supported Products>
Connection Capacity: Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
Interface & Button:
– 1× Ethernet Port
– 1× RESET Button
– 1× SYNC Button
– 1× MicroSD Card Slot (Up to 512 GB)
VIDEO & AUDIO
Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
Frame Rate: 15 fps / 20 fps
Digital Zoom: 12×
Video Compression: H.264
Live View: Yes
Image Enhancement:
– 3DNR
– WDR
Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume:
– Camera: 92 dB (Level measured at 4-inch/10-cm distance)
– Hub: 100 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage:
– MicroSD Card Slot on Camera (Up to 512 GB)
– General Information about using MicroSD Cards >
Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
DETECTION AND NOTIFICATIONS
Sensor:
– Single Motion Sensor (FOV: 110° horizontal)
– Single Ambient Light Sensor
AI Detection:
– Motion Detection
– Person Detection
– Pet Detection
– Vehicle Detection
Activity Zones: Yes
Output Notification:
– System Notification
– System Notification with Snapshot (Tapo Care Services)
AUDIO
Audio Communication: 2-way audio
Audio Input & Output: Built-in microphone and speaker
NETWORK
Network Connectivity: Connect via Wi-Fi or Ethernet
Wireless Connectivity:
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub)
Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Ethernet Port: 1× 10/100 Mbps RJ45 Port on Hub
Wireless Security: WPA/WPA2-PSK
Wi-Fi Protocol: IEEE 802.11b/g/n, 2.4 GHz
Frequency: 2.4 GHz
SECURITY
Security:
– On-Device Machine Learning
– 128-bit AES Encryption with SSL/TLS
– WPA/WPA2-PSK
POWER
Power Source:
– Hub: 9V DC Power Adapter
– Camera: 6700 mAh Removable Rechargeable Lithium-ion Battery
– Optional Solar Panel: Tapo A200 (Sold separately)
Input Voltage: Adapter Input: 100-240 V, 50/60 Hz
Output Voltage : Adapter Output: 5.0 V, 2.0 A
GENERAL
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: Camera: IP65
System Requirements: Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher
Mounting Options:
– Tabletop
– Ceiling-Mounted
– Wall-Mounted
Operating Temperature:
– Camera: -20℃~45℃
– Hub: 0℃~40℃
Storage Temperature: -20℃~60℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 5%~90% RH, Non-condensing
Charging Temperature: 0-55℃
Dimensions:
– Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm)
– Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)
Package Contents:
– Tapo C420 Cameras
– Tapo A100 Batteries
– Tapo H200 Hub
– USB Adapter
– USB Adapter Cable
– DC Power Adapter
– Mounting Anchors
– Mounting Screws
– Mounting Templates
– Camera Brackets
– Quick Start Guide
– RJ45 Ethernet Cable
Certifications: CE, FCC, RoHS, RCM
ACTIVITY NOTIFICATIONS
Input Trigger: Motion detection, Person detection, Pet detection, Vehicle detection.
Output Notification: Notification,Snapshot(Tapo care), Clips(Tapo care).
ENVIRONMENT
– Operating Temperature : -20℃~45℃(-4°F ~113 °F )
– Storage Temperature: -20℃~60℃ (-4°F~140°F)
– Operating Humidity: 10%~90%RH, Non-condensing
– Storage Humidity: 5%~90%RH, Non-condensing
PACKAGE CONTENTS
– Package Contents:
– Tapo C420 Cameras (Battery Included) – micro-USB
– Tapo H200 Hub
– USB Adapter
– USB Adapter Cable
– DC Power Adapter
– Mounting Screws
– Mounting Templates
– Camera Brackets
– Quick Start Guide
– RJ45 Ethernet Cable
HARDWARE
Button:
– Camera Button: Reset/SYNC Button
– Hub Button: Reset Button; SYNC Button
Indicator LED:
– Camera Indicator LED: System LED
– Hub Indicator LED: System LED
Adapter Input:
– Camera Adapter Input: 100-240V, 50/60Hz
– Hub Adapter Input: 100-240V, 50/60Hz, 0.3A
Adapter Output:
– Camera Adapter Output: 5.0V, 1.0A
– Hub Adapter Output: 9.0V, 0.85A
Dimensions (W x D x H):
– Camera Dimensions: 4.35 x 2.52 x 2.52in. (110.6*64.2*64.2mm)
– Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in. (71.45*71.45*31.25mm)
VIDEO/IMAGE
Video Compression: H.264
Frame Rate & Resolutions: 15/20 fps
Video Streaming: 2K QHD
