- Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
- True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
- 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery

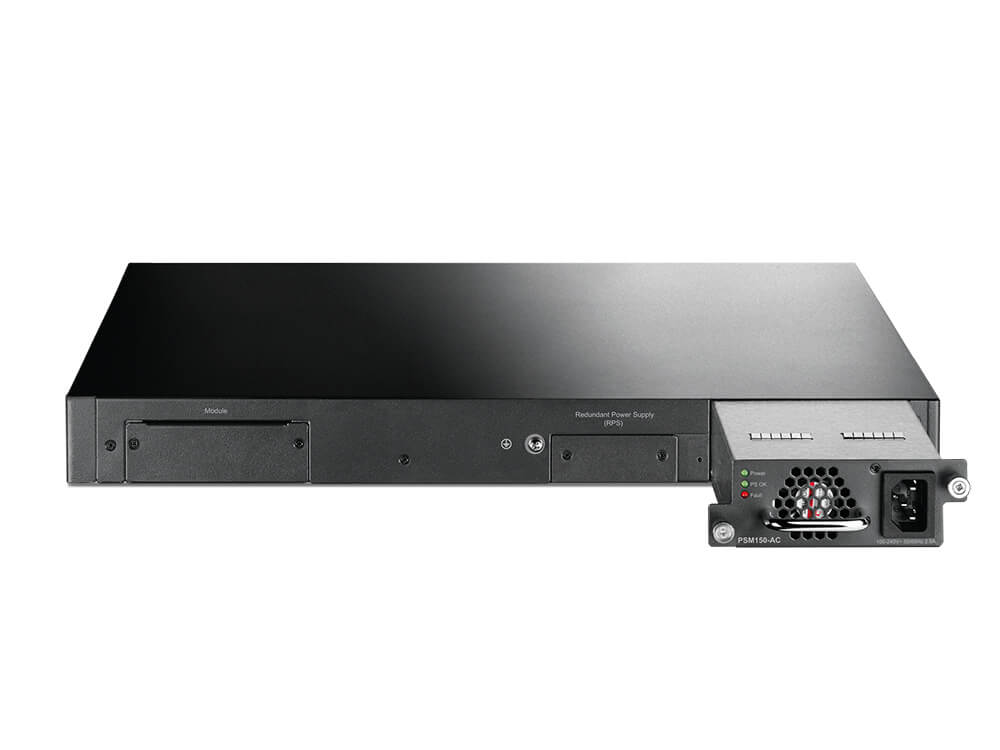

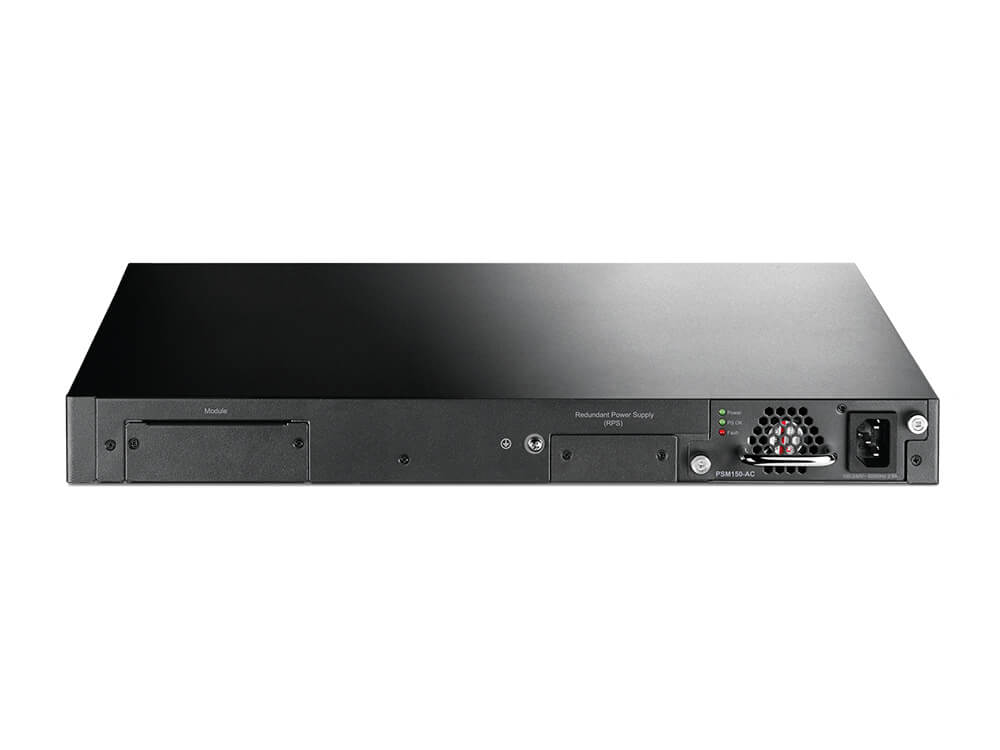

- Removable power unit and redundant power supply functionality minimize downtime
- PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE – 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface:

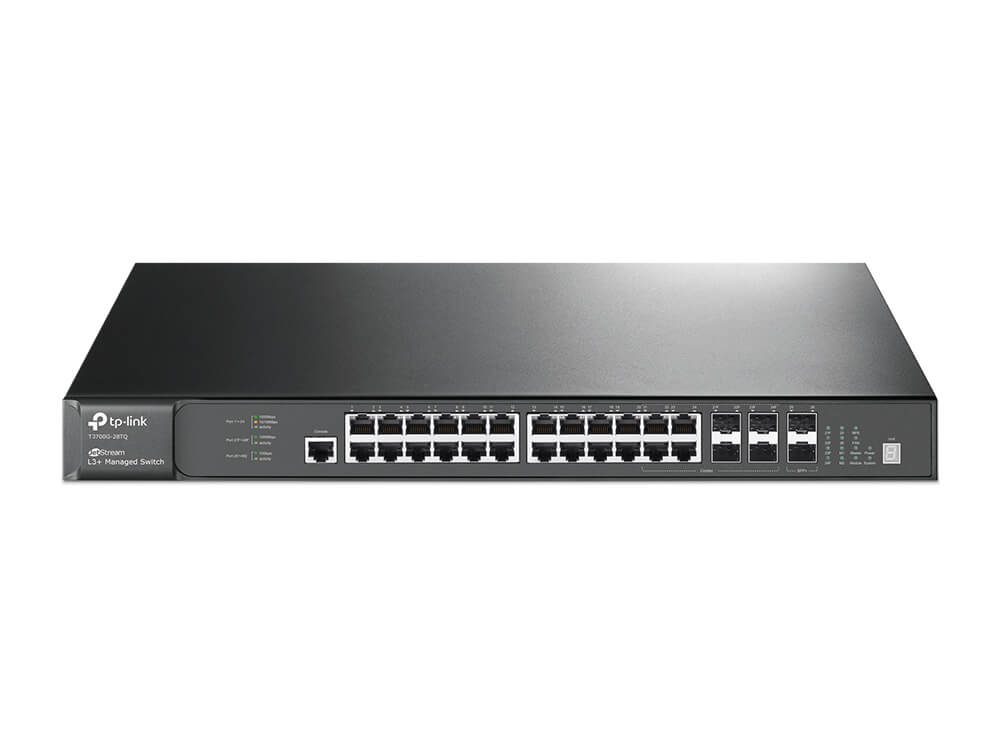

– 24 10/100/1000Mbps RJ45 Ports
– (Auto Negotiation/Auto MDI/MDIX)
– 4 combo gigabit SFP Slots
– Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)
– 1 Console Port
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
– 100BASE-FX: MMF, SMF
– 1000BASE-X: MMF, SMF
– 10GBASE-LR
– 10GBASE-SR
Fan Quantity: 1 removable fan module
Physical Security Lock: No
Power Supply: 100~240VAC, 50/60Hz
Dimensions ( W x D x H ): 17.32131.73 in.(44033044 mm)
Mounting: Rack Mountable
Max Power Consumption: 47W (220V/50Hz)
Max Heat Dissipation: 160.36 BTU/h
PHYSICAL STACKING
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables:
– TXM431-SR
– TXM431-LR
– TXC432-CU1M
– TXC432-CU3M
Max Number of Stacking Ports Installable: 2 SFP+
Stacking Speed (Per Port): 20 Gbps (Full-Duplex)
No. of Units Per Stack: 8
