- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
Interface: 1× Gigabit Ethernet (RJ-45) Port
Button: Reset
Power Supply:
– V2 and above:
– 802.3at PoE
– 48 V Passive PoE
– 12 V / 1.5 A DC (Power Adapter included)
Power Consumption:
– V2 and above:
– EU: 13.7 W (For PoE); 12.3 W (for DC)
– US: 14.2 W (For PoE); 12.8 W (for DC)
Dimensions ( W x D x H ): V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type:
Internal Omni Antenna
– 2.4 GHz: 2× 4 dBi
– 5 GHz: 2× 5 dBi

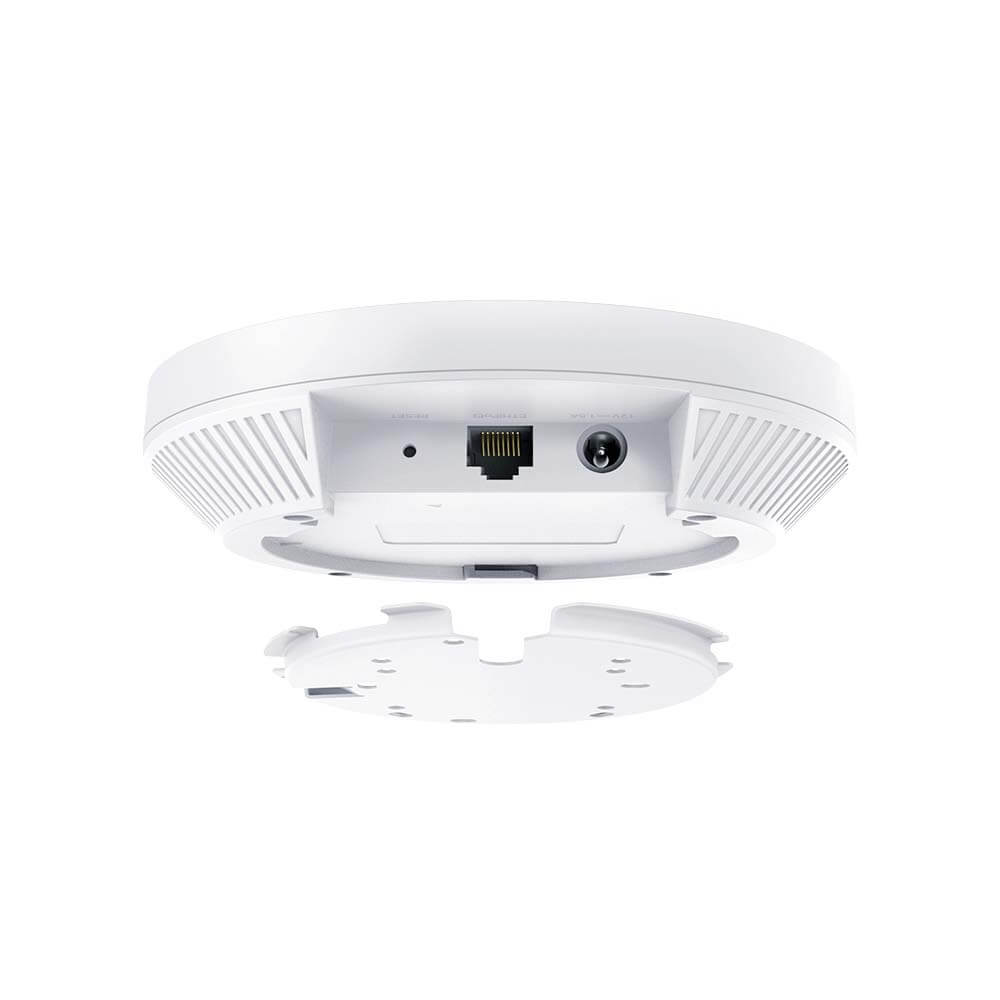

Mounting:
– Ceiling /Wall Mounting (Kits included)
– Junction Box Mounting
