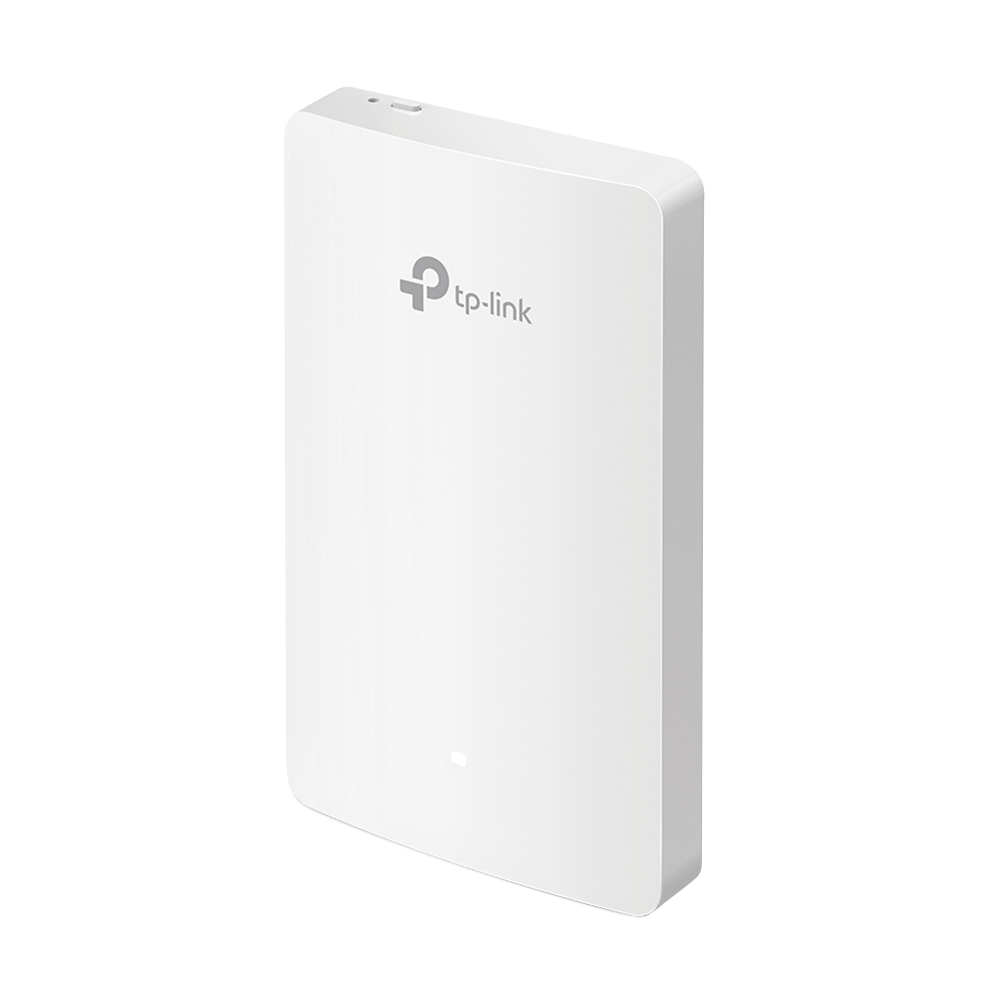

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

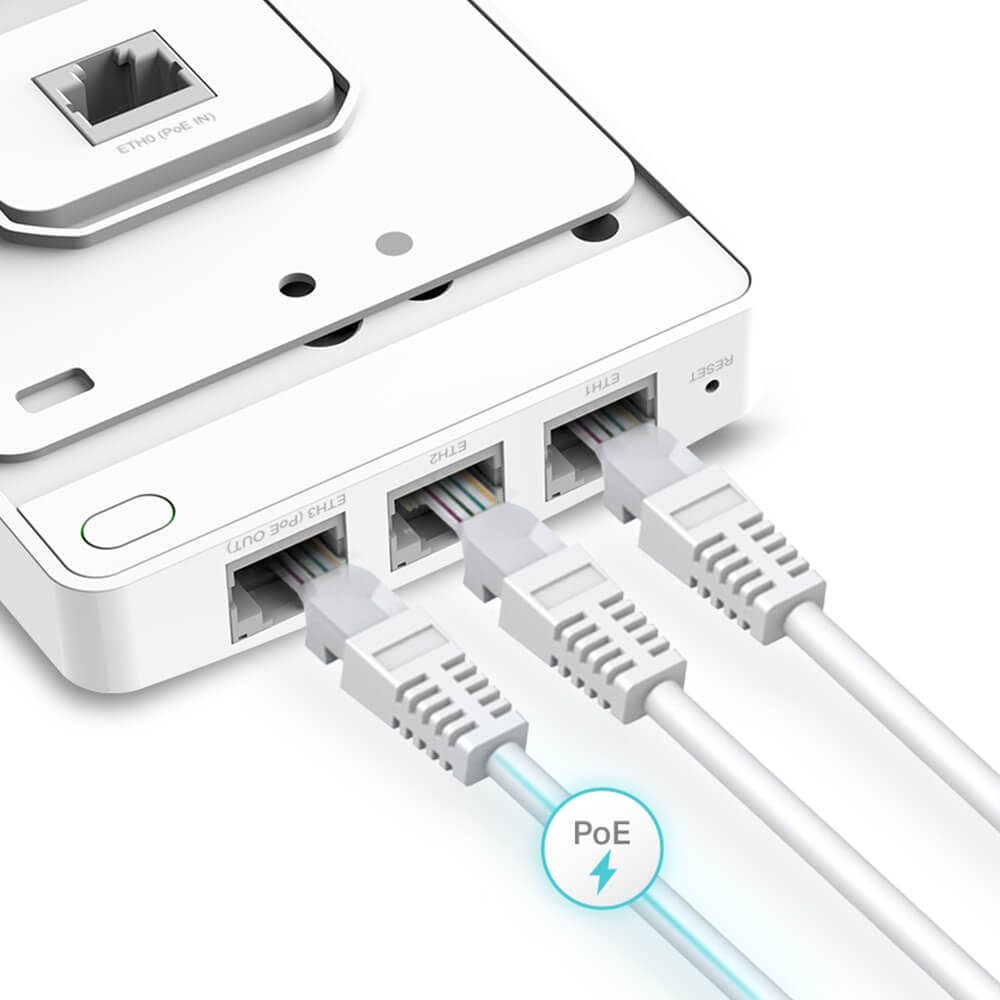

• Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.§
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
• Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
• Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
• Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.*
• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

HARDWARE FEATURES
Interface:
– Uplink: 10/100/1000 Mbps Ethernet Port1
– Downlink: 10/100/1000 Mbps Ethernet Port3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)

Physical Security Lock: Yes

Button: Reset

Power Supply: 802.3af/802.3at PoE

Power Consumption: 9.8 watts /24.4 watts (PoE Out Included)

Dimensions ( W x D x H ): 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Dimensions: 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)

Antenna:
– 2 Dual-Band Antennas
– 2.4GHz: 24dBi 5GHz: 24dBi

Mounting: Wall Plate Mounting
