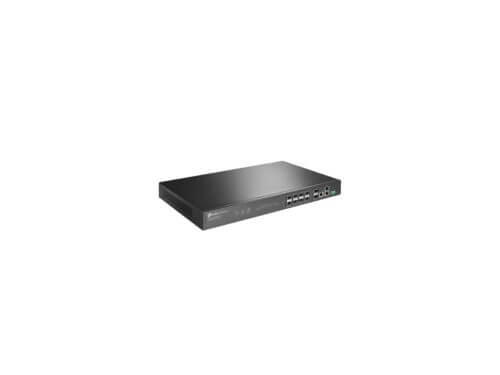

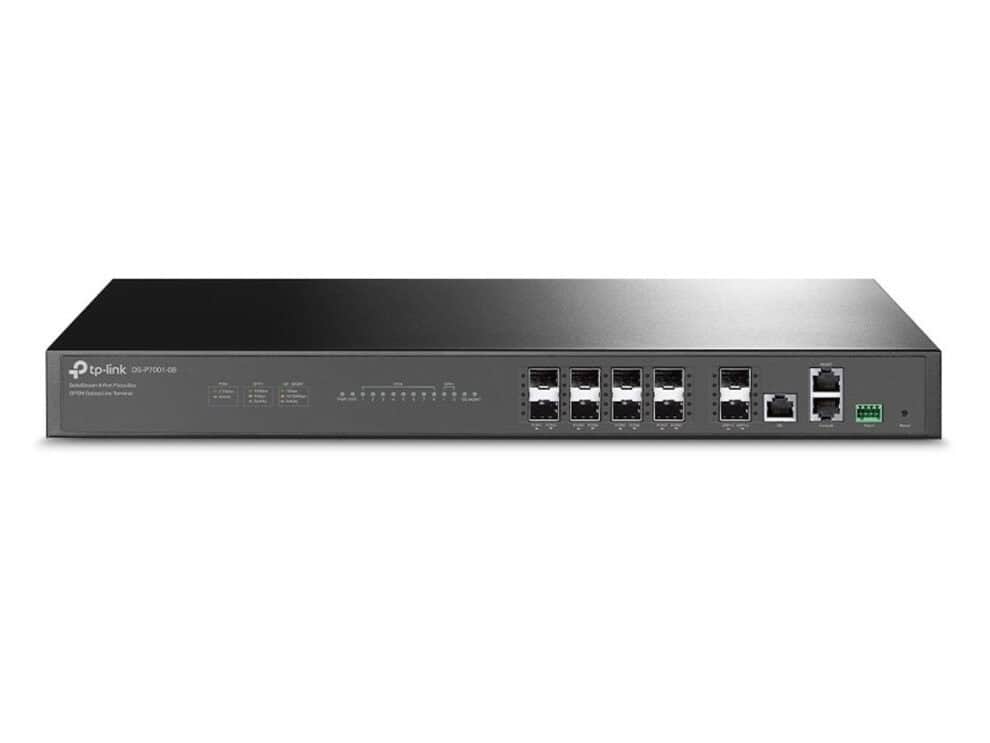

TP-Link DeltaStream DS-P7001-08 GPON Optical Line Terminal

• – 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device
• – High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port

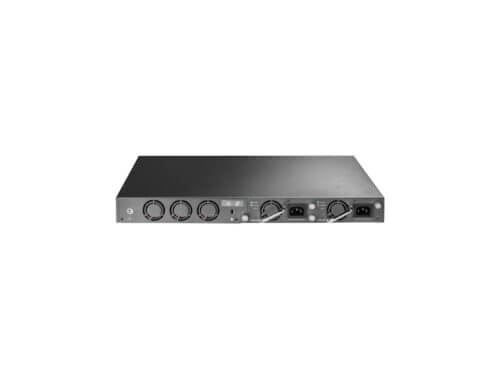

• – Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies
• – Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements
• – Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI
• – Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications

Features
Static route: Yes
DHCP server: Yes
DHCP relay: Yes
IGMP snooping: Yes
Multicast Listener Discovery (MLD) snooping: Yes
Quality of Service (QoS) support: Yes
GPON split ratio (max): 1:128
Maximum operating distance (GPON): 20000 m
Access Control List (ACL): Yes

Ports & interfaces
Upstream ports: Gigabit Ethernet
Ethernet LAN (RJ-45) ports: 2
GPON ports quantity: 8
SFP/SFP+ slots quantity: 2
