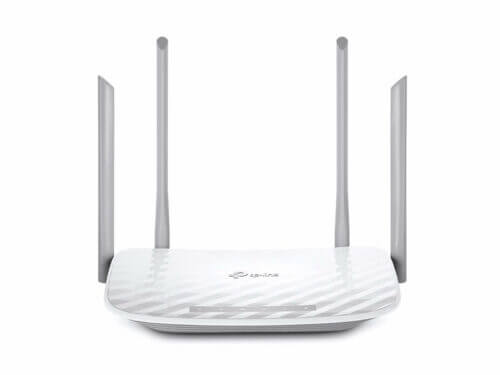

Archer C5
- Upgrade to fast 5th generation Wi-Fi, 300Mbps at 2.4GHz + 867Mbps at 5GHz dual band
- Easy Remote Management, TR-069 protocol enables an operator to remotely configure and manage end-user devices
- 4 external antennas provide stable wireless connections and optimal coverage
- Supports USB 2.0 port, easily share files & media with networked devices
- Full Gigabit Ports, Support 1000Mbps WAN port and four 1000Mbps LAN port, for ultrafast data transfer speeds
HARDWARE FEATURES

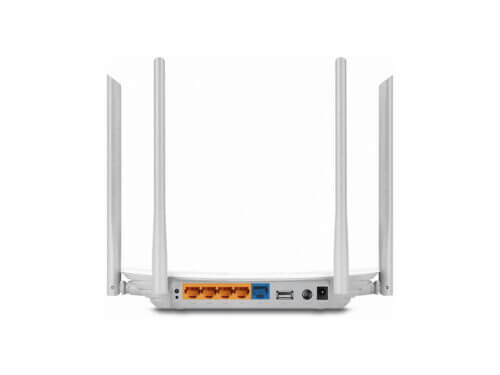

Interface : 4 10/1000Mbps LAN Ports 1 10/1000Mbps WAN Port 1 USB 2.0 Port
Wireless Standards : IEEE 802.11n/g/b 2.4GHz IEEE 802.11ac/n/a 5GHz
Power Supply : 12VDC/1.0A
Dimensions ( W x D x H ): 9.1 x 5.7 x 1.4 in. (230.0 * 144.0 * 35.0 mm)
Antenna Type: 4 External Antennas
SOFTWARE FEATURES
Quality of Service: WMM, Bandwidth Control
WAN Type: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Management: Access Control, Local Management, Remote Management
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
Access Control: Parental Control, Local Management Control, Host list, Access Schedule, Rule Management
Protocols: IPv4 and IPv6
OTHERS
Package Contents: AC1200 Wireless Dual Band Gigabit Router, Power Adapter, Quick Installation Guide, RJ45 Cable
System Requirements: Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Environment: Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications: CE, FCC, RoHS
WIRELESS FEATURES
Frequency: 2.4GHz and 5GHz
Signal Rate: 2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps
Reception Sensitivity: 5GHz: 11a 54M: -73dBm; 11ac VHT20 MCS8: -66dBm; 11ac VHT40 MCS9: -61dBm; 11ac VHT80 MCS9: -58dBm. 2.4GHz: 11g 54M: -75dBm; 11n HT20 MCS7: -73dBm; 11n HT40 MCS7: -70dBm
Transmit Power: CE: <20dBm(2.4GHz), <23dBm(5GHz) FCC: <30dBm
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security: Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security Provides 64/128-bit WEP encryption security.
