- Boost Your Wi-Fi — The Archer C3150 runs at combined speeds of up to 3150Mbps across its 2.4GHz and 5GHz bands
- Larger Data Streams — Broadcom® NitroQAM™(1024-QAM) technology with 4-Stream lets the Archer C3150 transmit 25% more data
- Multiple Reliable Connections — MU-MIMO(Multi-User MIMO) technology allows the router to run several devices at the same time to achieve speeds up to 4X faster than standard AC routers
- Smoother Performance — Smart Connect technology assigns each of your devices to the best available Wi-Fi band
- Powerful Processing — A 1.4GHz dual-core processor ensures simultaneous browsing, streaming, and gaming without delay
HARDWARE FEATURES

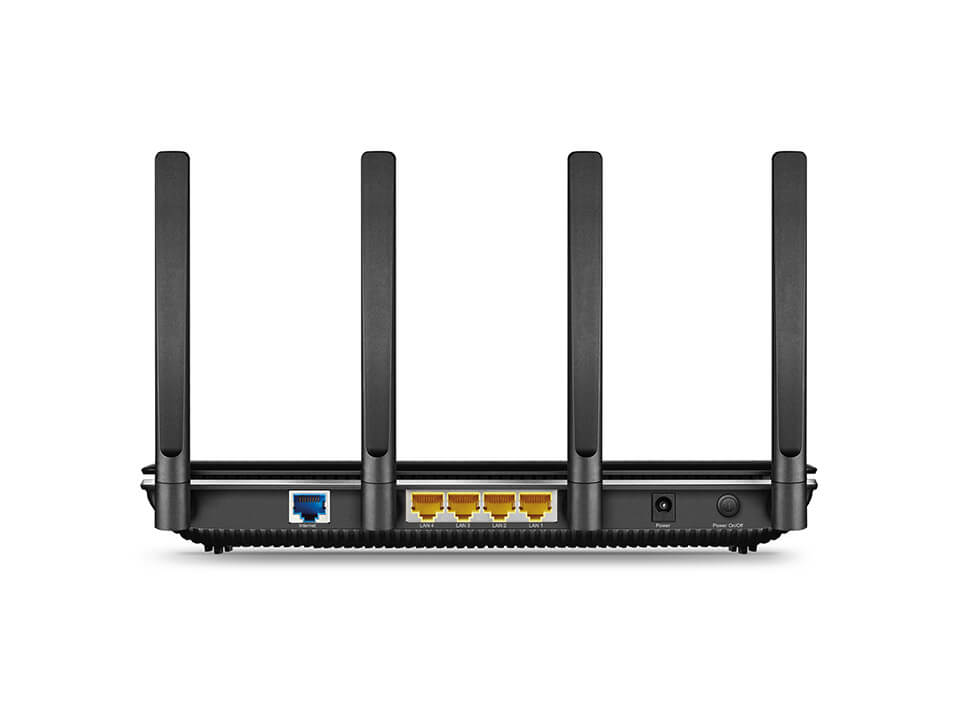

Interface:
– 4 10/100/1000Mbps LAN Ports,
– 1 10/100/1000Mbps WAN Port
– 1 USB 3.0 Port + 1 USB 2.0 Port
Button: WPS Button, Reset Button, Wireless On/Off Button, LED On/Off Button, Power On/Off Button
External Power Supply: 12V/5A
Dimensions ( W x D x H ): 10.4×7.8×1.5 in. (263.8×197.8×37.3mm)
Antenna: 4 Detachable Antennas
WIRELESS FEATURES
Wireless Standards:
– IEEE 802.11ac/n/a 5GHz
– IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 2167Mbps at 5GHz, 1000Mbps at 2.4GHz
Reception Sensitivity:
– 5GHz: 11a 6Mbps: -91dBm
11a 54Mbps: -72dBm
11n HT20: -70dBm
11n HT40: -69dBm
11ac HT20: -60dBm
11ac HT40: -61dBm
11ac HT80: -56dBm
– 2.4GHz: 11g 54Mbps: -73dBm
11n HT20: -72dBm
11n HT40: -69dBm
Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
Transmission Power:
– CE: <20dBm(2.4GHz), <23dBm(5GHz)
– FCC: <30dBm
Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
SOFTWARE FEATURES
Quality of Service: WMM, Bandwidth Control
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) /Bigpond
Management: Access Control, Local Management, Remote Management
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec
Access Control: Parental Control, Local Management Control, Host list, Access Schedule, Rule Management
Protocols: Supports IPv4 and IPv6
USB Sharing: Support Samba(Storage)/FTP Server/Media Server/Printer Server
IPSec VPN: Supports up to 10 IPSec VPN tunnels
VPN Server: PPTP, OpenVPN
