- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
- Connect 100+ Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
- More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.

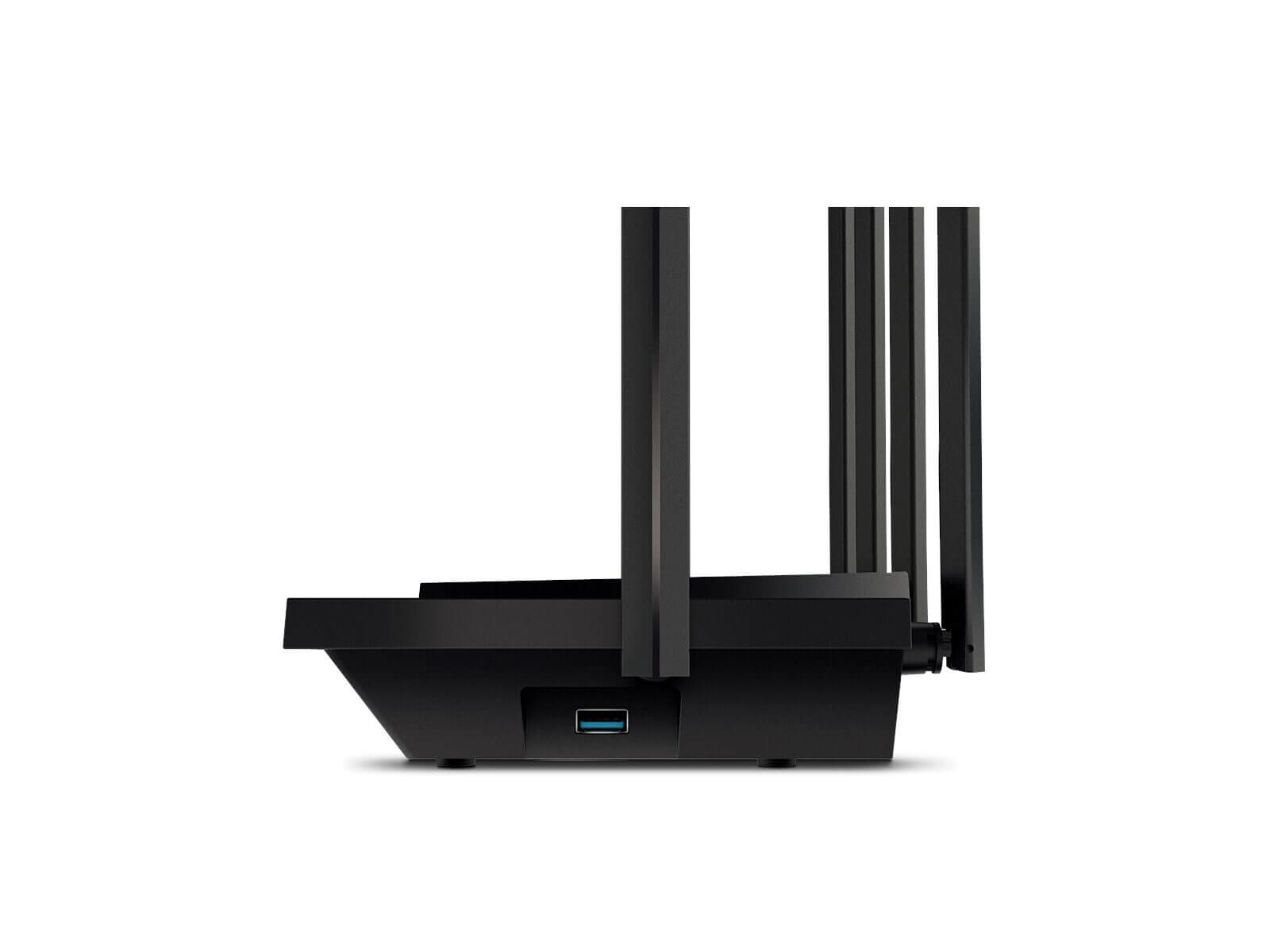

- USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with the Tether app.
WIRELESS
Standards: Wi-Fi 6
– IEEE 802.11ax/ac/n/a 5 GHz
– IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds: AX5400
– 5 GHz: 4804 Mbps (802.11ax, HE160)
– 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range: 3 Bedroom Houses
– 6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
– Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
– High-Power FEM
Improves transmission power to strengthen signal coverage
– 4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity: High
– Dual-Band
Allocate devices to different bands for optimal performance
– 4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
– OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
– Airtime Fairness
Improves network efficiency by limiting excessive occupation
– DFS
Access an extra band to reduce congestion
– 6 Streams
Connect your devices to more bandwidth
Working Modes:
– Router Mode
– Access Point Mode
SECURITY
Network Security:
– SPI Firewall
– Access Control
– IP & MAC Binding
– Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network:
– 1× 5 GHz Guest Network
– 1× 2.4 GHz Guest Network
VPN Server:
– OpenVPN Server
– PPTP VPN Server
– L2TP VPN Server
VPN Client:
– Open VPN Client
– PPTP VPN Client
– L2TP VPN Client
WiFi Encryption:
– WPA
– WPA2
– WPA3
– WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor: 1 GHz Dual-Core CPU

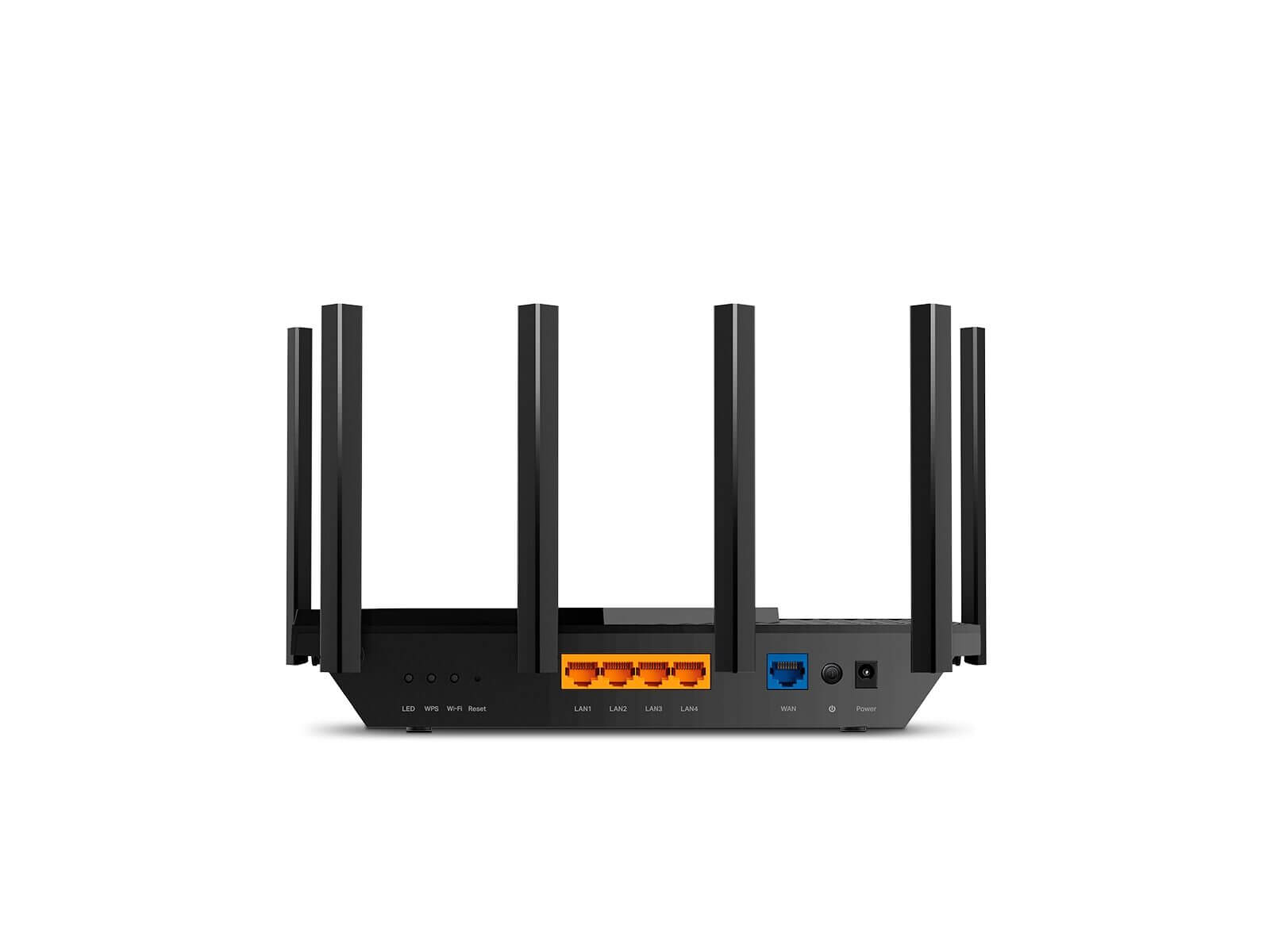

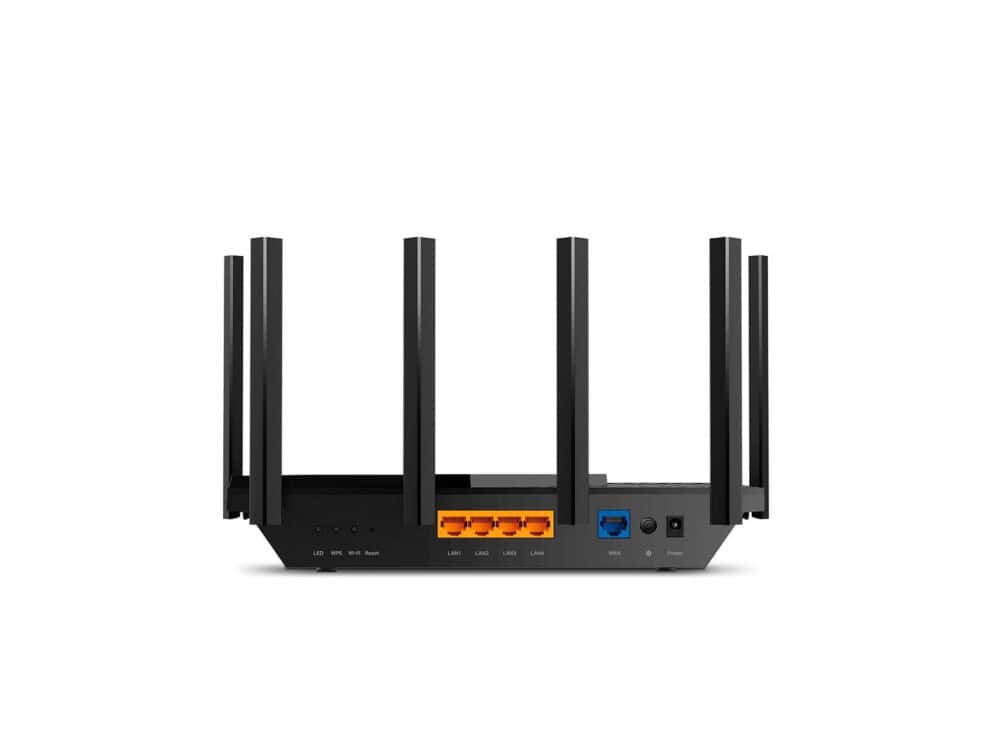

Ethernet Ports:
– 1× Gigabit WAN Port
– 4× Gigabit LAN Ports
USB Support: 1× USB 3.0 Port
Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons:
– Wi-Fi On/Off Button
– Power On/Off Button
– LED On/Off Button
– WPS Button
– Reset Button
Power 12 V ⎓ 2.5 A
