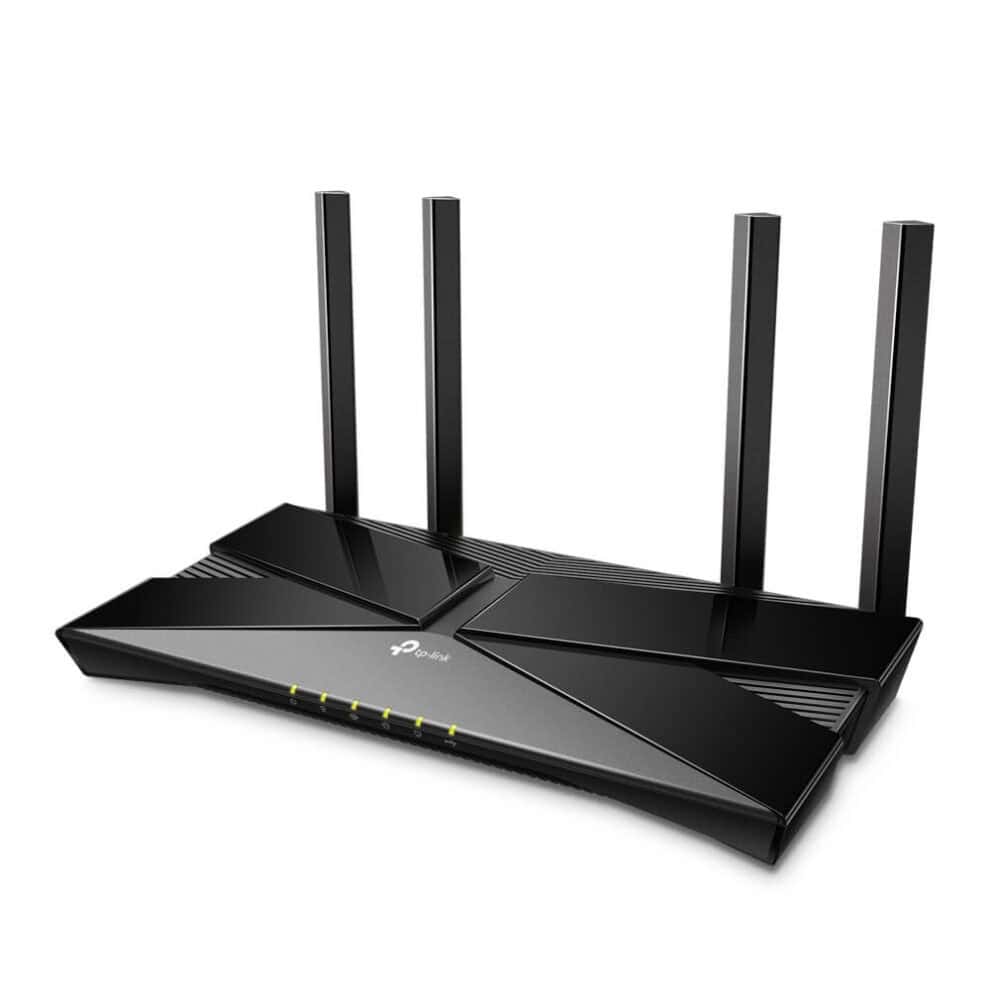

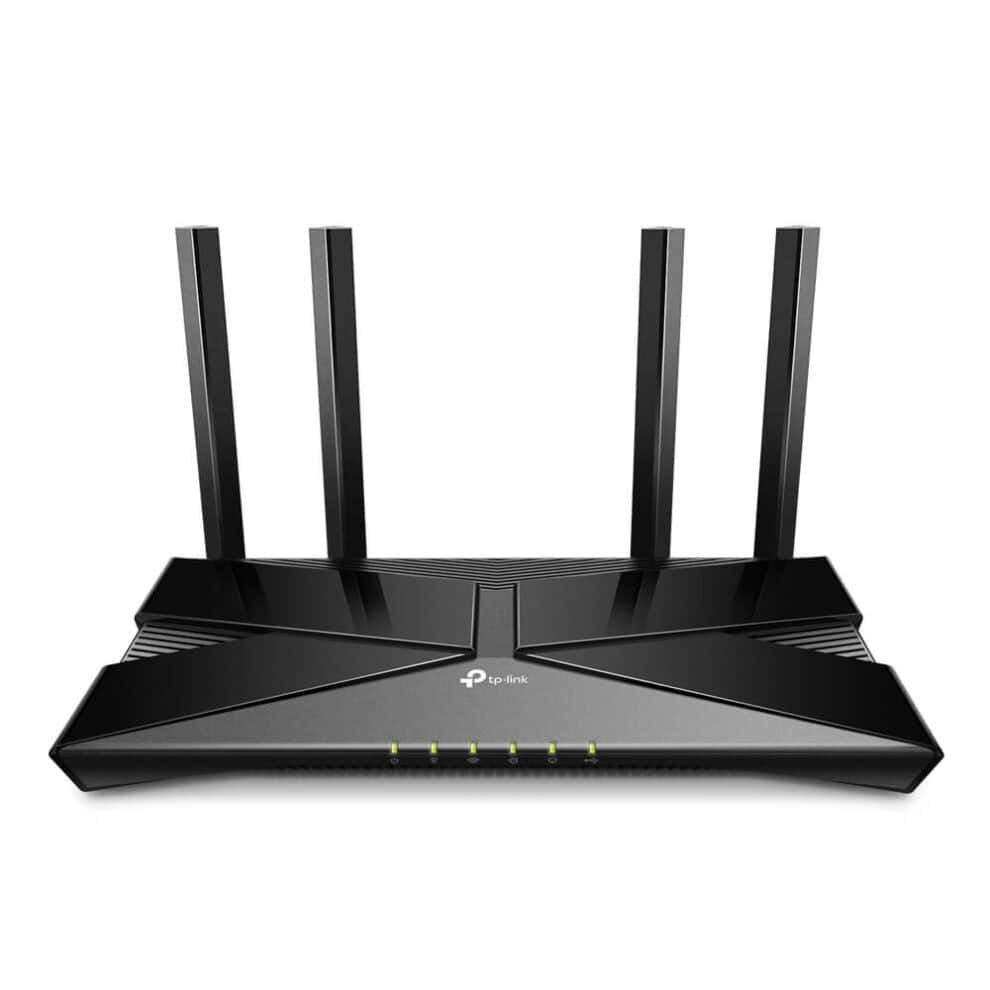

TP-Link Archer AX20 Dual-Band Wi-Fi 6 Router

• Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
• Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.†
• Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.△§
• Quad-Core Processing: The 1.5 GHz quad-core CPU ensures communications between your router and all connected devices are smooth.
• Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.
• Increased Battery Life: Target Wake Time technology reduces your devices’ power consumption to extend their battery life.‡
• USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage.
• Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices.

SECURITY
Network Security:
– SPI Firewall
– Access Control
– IP & MAC Binding
– Application Layer Gateway

Guest Network:
– 1× 5 GHz Guest Network
– 1× 2.4 GHz Guest Network

VPN Server:
– OpenVPN
– PPTP

VPN Client:
– Open VPN Client
– PPTP VPN Client
– L2TP VPN Client

WiFi Encryption:
– WPA
– WPA2
– WPA3
– WPA/WPA2-Enterprise (802.1x)

WIRELESS
Standards: Wi-Fi 6
– IEEE 802.11ax/ac/n/a 5 GHz
– IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds: AX1800
– 5 GHz: 1201 Mbps (802.11ax)
– 2.4 GHz: 574 Mbps (802.11ax)

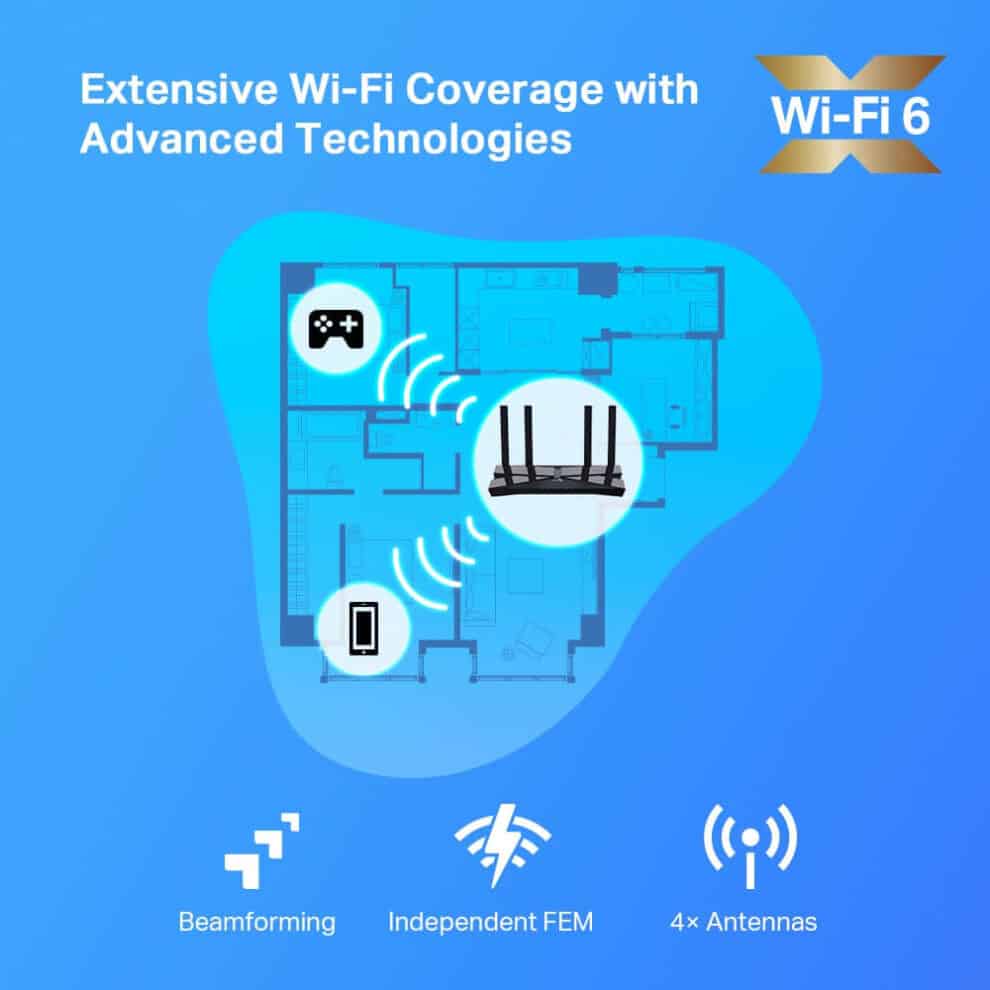

WiFi Range: 3 Bedroom Houses
– 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
– Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
– High-Power FEM
Improves transmission power to strengthen signal coverage

WiFi Capacity: High
– Dual-Band
Allocate devices to different bands for optimal performance
– OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
– Airtime Fairness
Improves network efficiency by limiting excessive occupation
– 4 Streams
Connect your devices to more bandwidth

Working Modes: Router Mode, Access Point Mode

HARDWARE
Processor: 1.5 GHz Quad-Core CPU

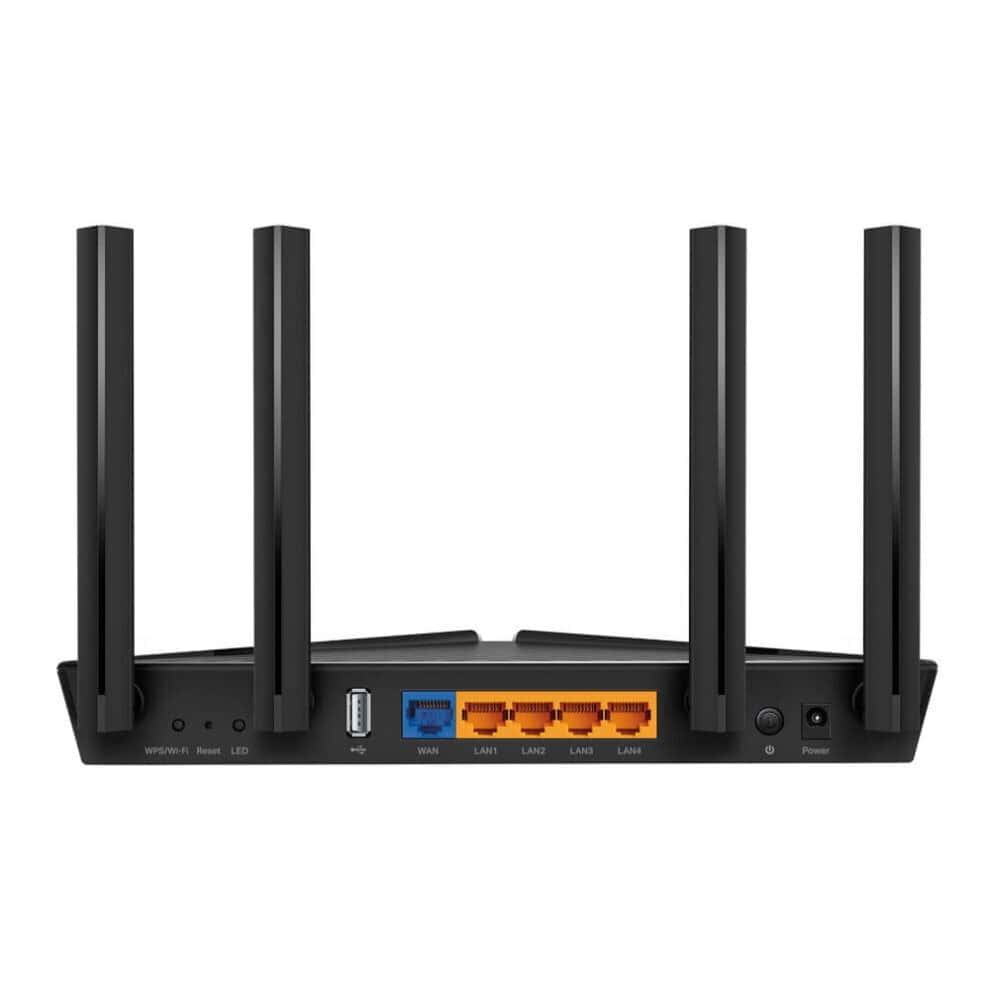

Ethernet Ports:
– 1× Gigabit WAN Port
– 4× Gigabit LAN Ports

USB Support: 1× USB 2.0 Port
– Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
– Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

Buttons: WPS/Wi-Fi Button, Power On/Off Button, LED On/Off Button, Reset Button

Power: 12 V ⎓ 1.5 A

PHYSICAL
Dimensions (W×D×H): 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm)

Package Contents:
– Wi-Fi Router Archer AX20
– Power Adapter
– RJ45 Ethernet Cable
– Quick Installation Guide
