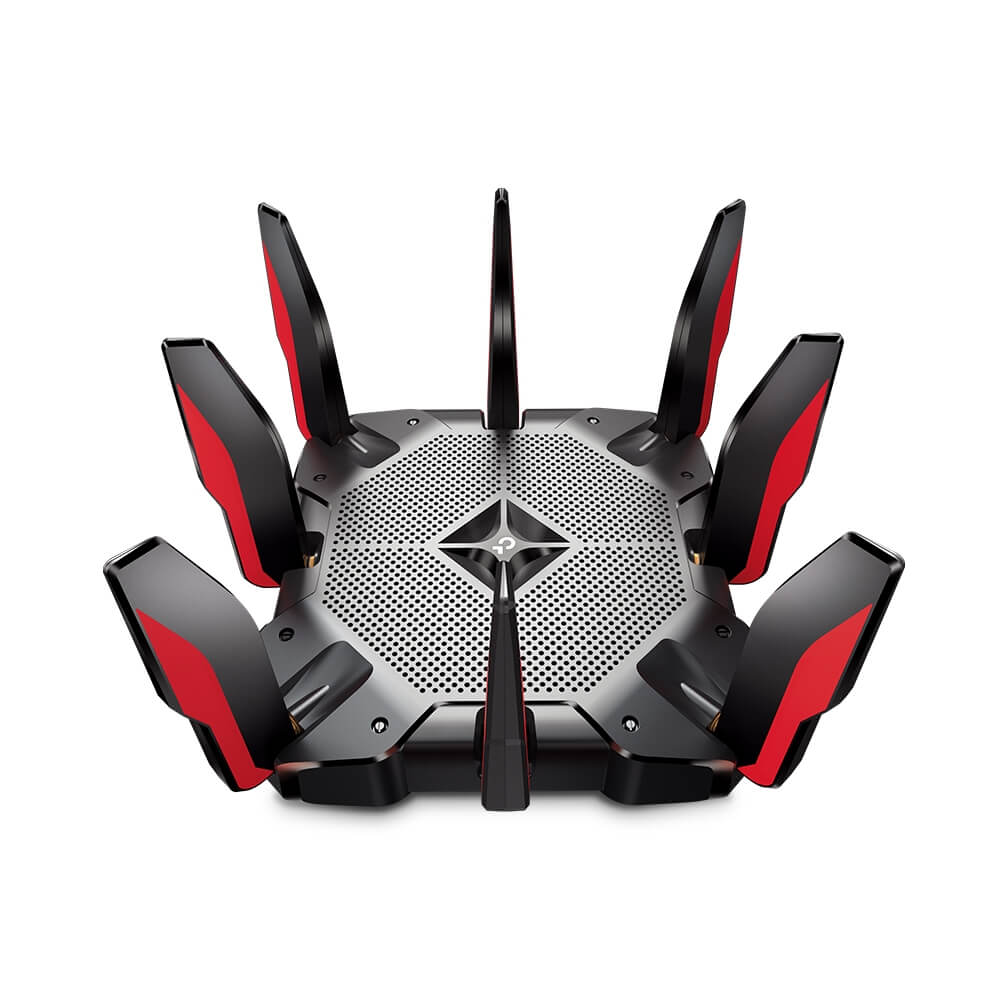

TP-Link Archer AX11000 Next-Gen Tri-Band Gaming Router

• The Fastest Wi-Fi 6 Gaming Router – AX11000 speed machine that delivers 12-streams Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
• Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive
• Game Protector – Keep your accounts and documents safe with Homecare™ security system powered by Trend Micro™.
• Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
• Ultra Connectivity – 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.
• Powerful Processing – 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
• Highly Efficient – OFDMA increases the avg. throughput and reduces the lag.
• Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

SECURITY
Network Security:
– SPI Firewall
– Access Control
– IP & MAC Binding
– Application Layer Gateway

HomeCare™ Antivirus
– Malicious Site Checker
– Port Intrusion Prevention
– Infected Device Isolation
– Notification and Log

Guest Network:
– 1× 5 GHz Guest Network
– 1× 2.4 GHz Guest Network

VPN Server:
– OpenVPN
– PPTP
– L2TP

WiFi Encryption:
– WPA
– WPA2
– WPA3
– WPA/WPA2-Enterprise (802.1x)

WIRELESS
Standards: Wi-Fi 6
– IEEE 802.11ax/ac/n/a 5 GHz
– IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds: AX11000
– 5 GHz: 4804 Mbps (802.11ax, HE160)
– 5 GHz: 4804 Mbps (802.11ax, HE160)
– 2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range: 4-6 Bedroom Houses
– 8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
– Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
– High-Power FEM
Improves transmission power to strengthen signal coverage
– 4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity: Very High
– Tri-Band
Allocate devices to different bands for optimal performance
– 4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
– OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
– Airtime Fairness
Improves network efficiency by limiting excessive occupation
– 4 Streams
Connect your devices to more bandwidth
– DFS
Access an extra band to reduce congestion
– 12 Streams
Connect your devices to more bandwidth

Working Modes: Router Mode, Access Point Mode

HARDWARE
Processor: 1.8 GHz 64 Bit Quad-Core CPU

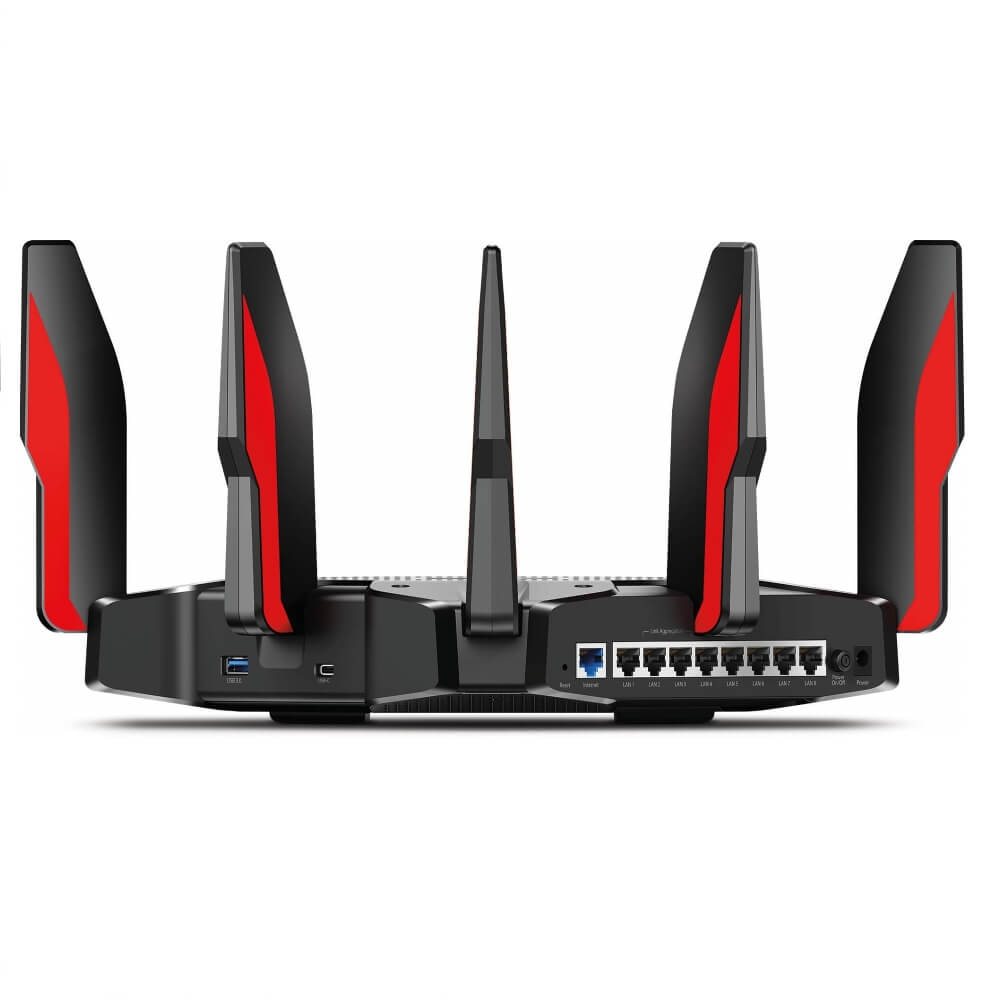

Ethernet Ports:
– 1× 2.5 Gbps WAN Port
– 8× Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2× LAN ports

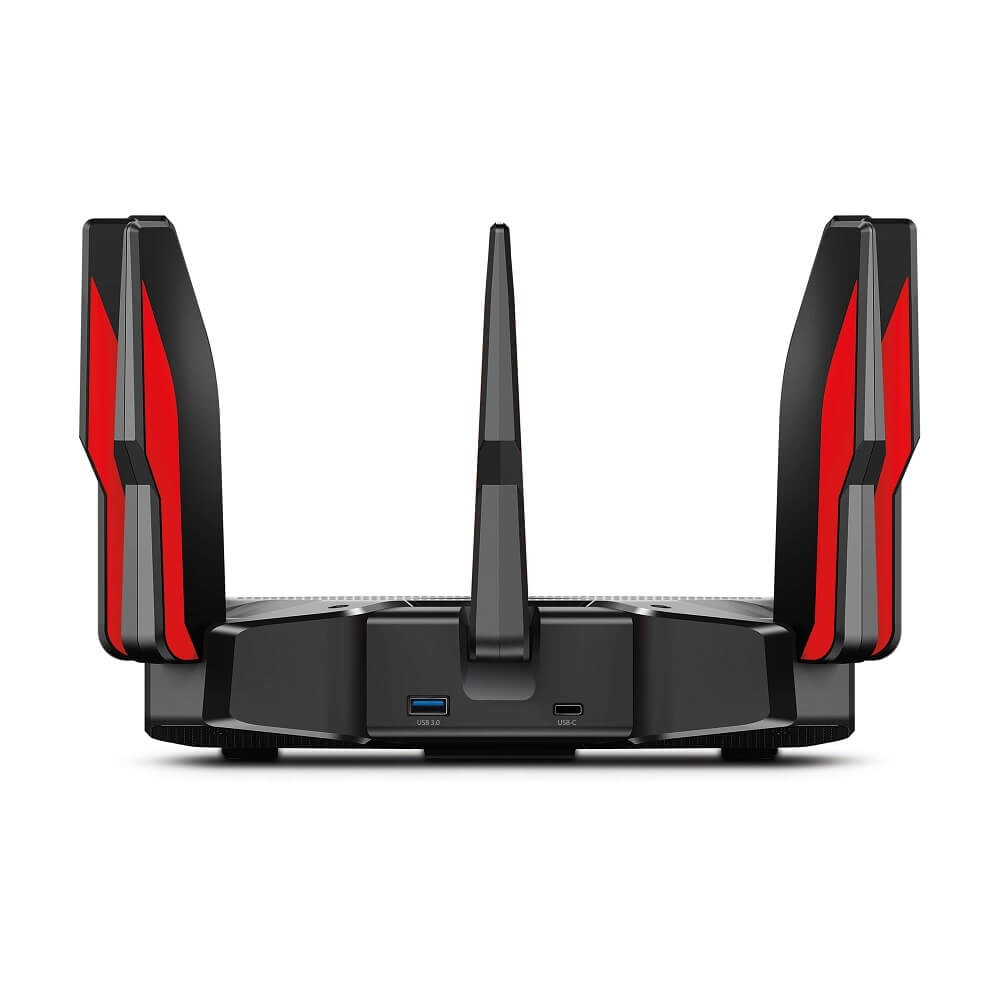

USB Support:
– 1× USB-C 3.0 Port
– 1× USB-A 3.0 Port
Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button

Power: 12 V ⎓ 5 A

PHYSICAL
Dimensions (W×D×H): 11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm)

Package Contents:
– Wi-Fi Router Archer AX11000
– Power Adapter
– RJ45 Ethernet Cable
– Quick Installation Guide
