- – Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- – With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds
- – A Deco E4 two-pack delivers Wi-Fi to an area of up to 2,800 square feet (EU version). And if that’s not enough, simply add more Decos to the network anytime to increase coverage
- – Deco E4 provides fast and stable connections with speeds of up to 1167 Mbps and works with major internet service provider (ISP) and modem
- – Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices
- – Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member
- – Setup is easier than ever with the Deco app there to walk you through every step
SECURITY
Network Security:
– SPI Firewall
– Access Control
Guest Network:
– 1× 5 GHz Guest Network
– 1× 2.4 GHz Guest Network
WiFi Encryption:
– WPA-Personal
– WPA2-Personal
WIRELESS
Standards: Wi-Fi 5
– IEEE 802.11ac/n/a 5 GHz
– IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1200
– 5 GHz: 867 Mbps (802.11ac)
– 2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 3-4 Bedroom Houses (3-pack)
– TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
– 2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
– Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity: Medium
– Dual-Band
Distribute devices to different bands for optimal performance
– MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes:
– Router Mode
– Access Point Mode
HARDWARE
Ethernet Ports: 2× 10/100 Mbps Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons: Reset Button
SOFTWARE
Protocols: IPv4, IPv6
Parental Controls:
– URL Filtering
– Time Controls
WAN Types:
– Dynamic IP
– Static IP
– PPPoE
– PPTP
– L2TP
Quality of Service: QoS by Device
Cloud Service:
– OTA Firmware Upgrade
– TP-Link ID
– DDNS
NAT Forwarding:
– Port Forwarding
– UPnP
IPTV:
– IGMP Proxy
– IGMP Snooping
– Bridge
– Tag VLAN
DHCP:
– Address Reservation
– DHCP Client List
– Server
DDNS: TP-Link
Management: Deco App
TEST DATA
WiFi Transmission Power:
– CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
– FCC:
<30 dBm
PHYSICAL
Dimensions (W×D×H): 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm)
Package Contents:

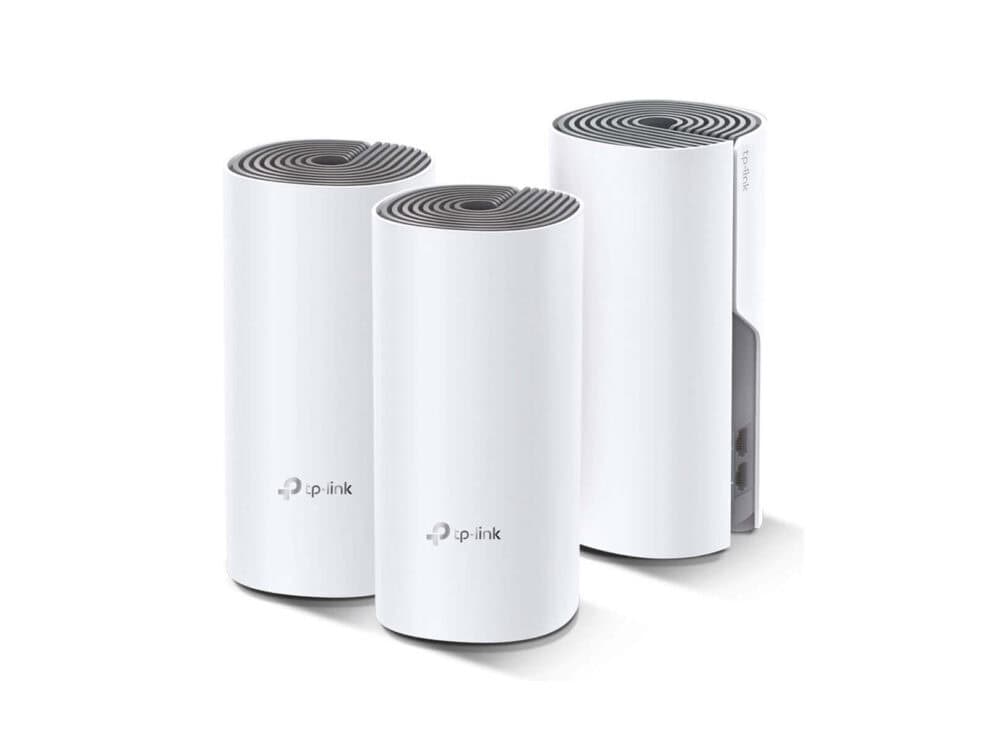

– 3 Deco E4R Units
– 1 RJ45 Ethernet Cable
– 3 Power Adapters
– 1 Quick Installation Guide
