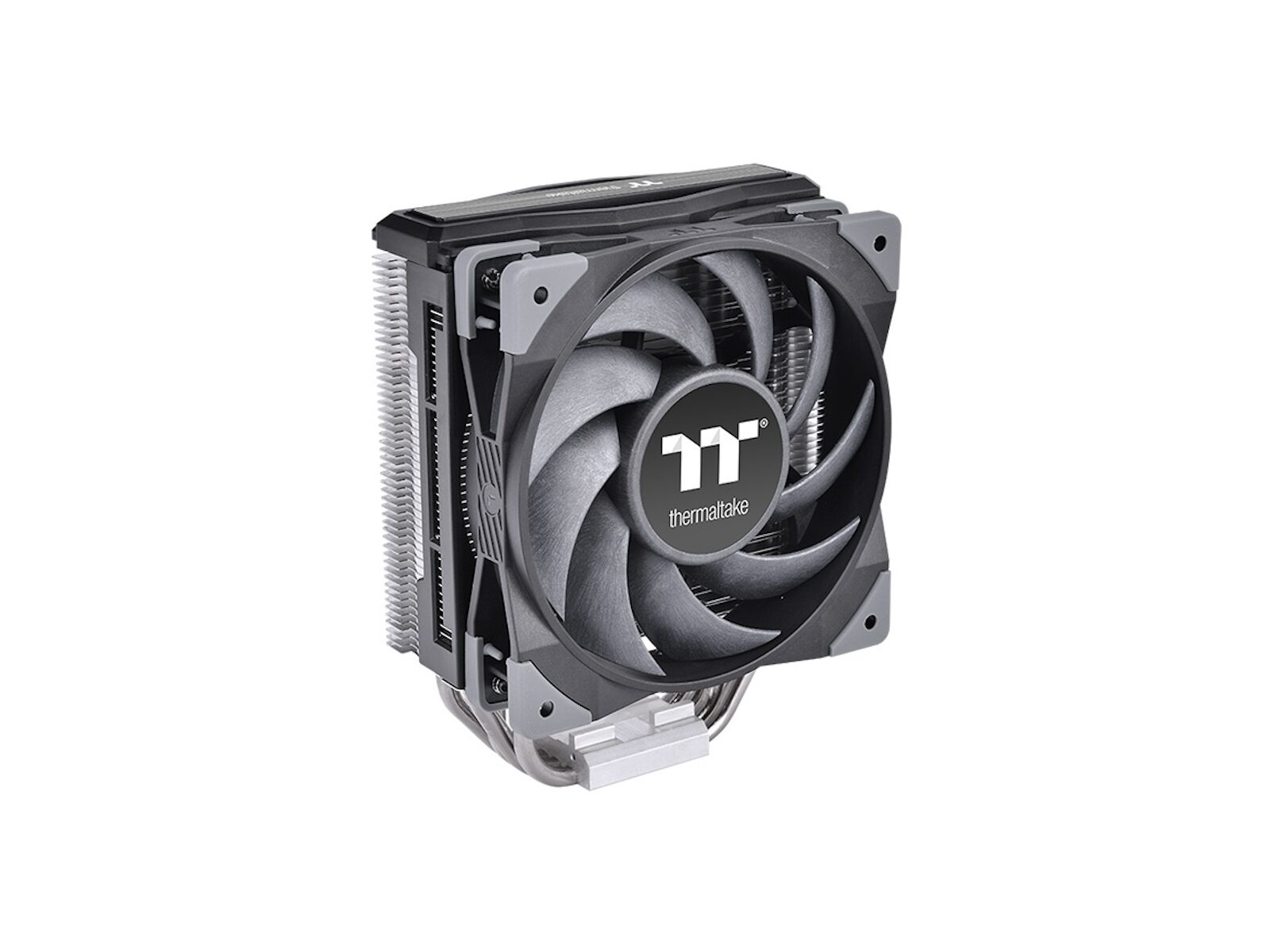

Single Tower Design
TOUGHAIR 310 is a single tower designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 170W.

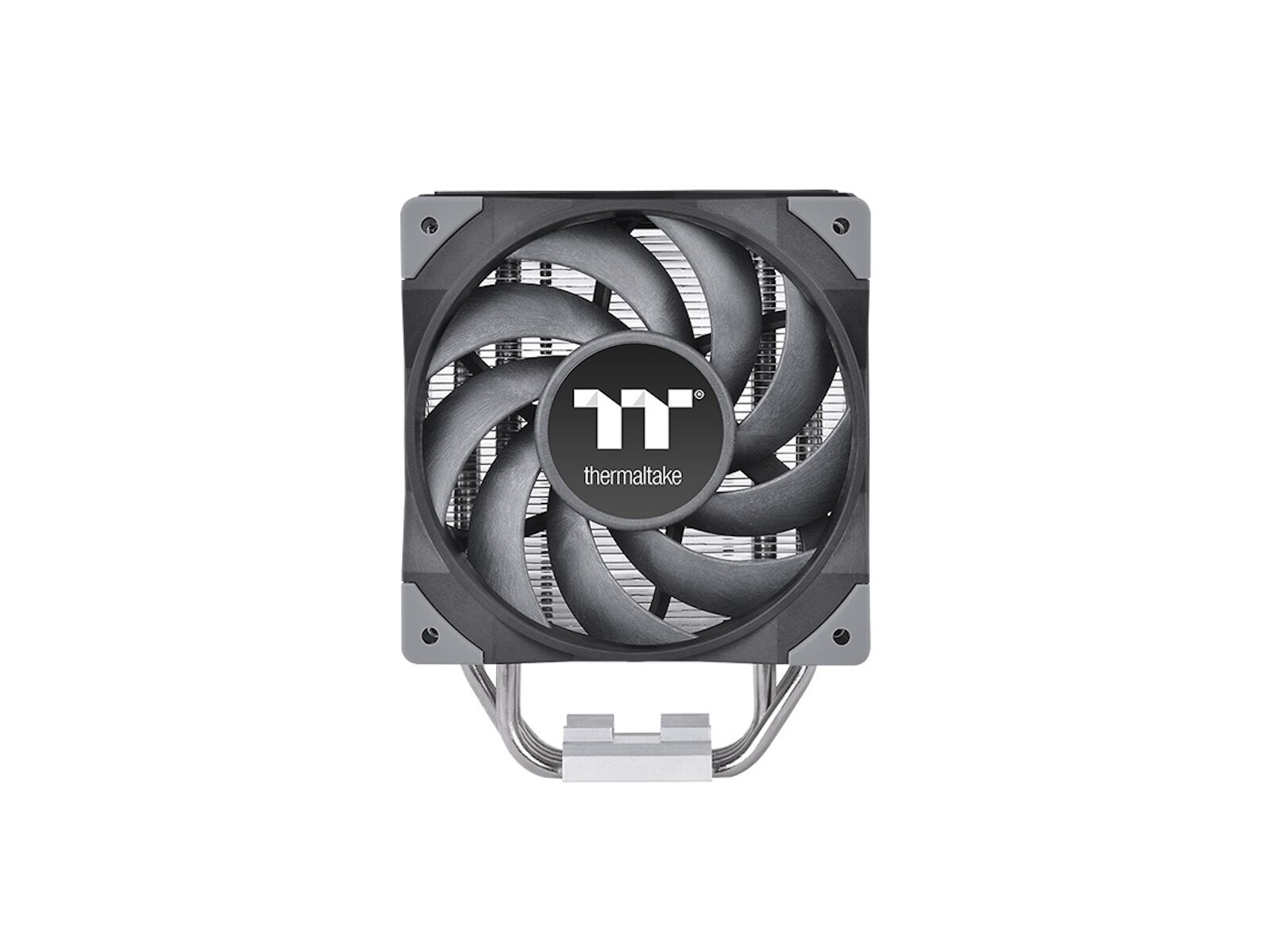

Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.
Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

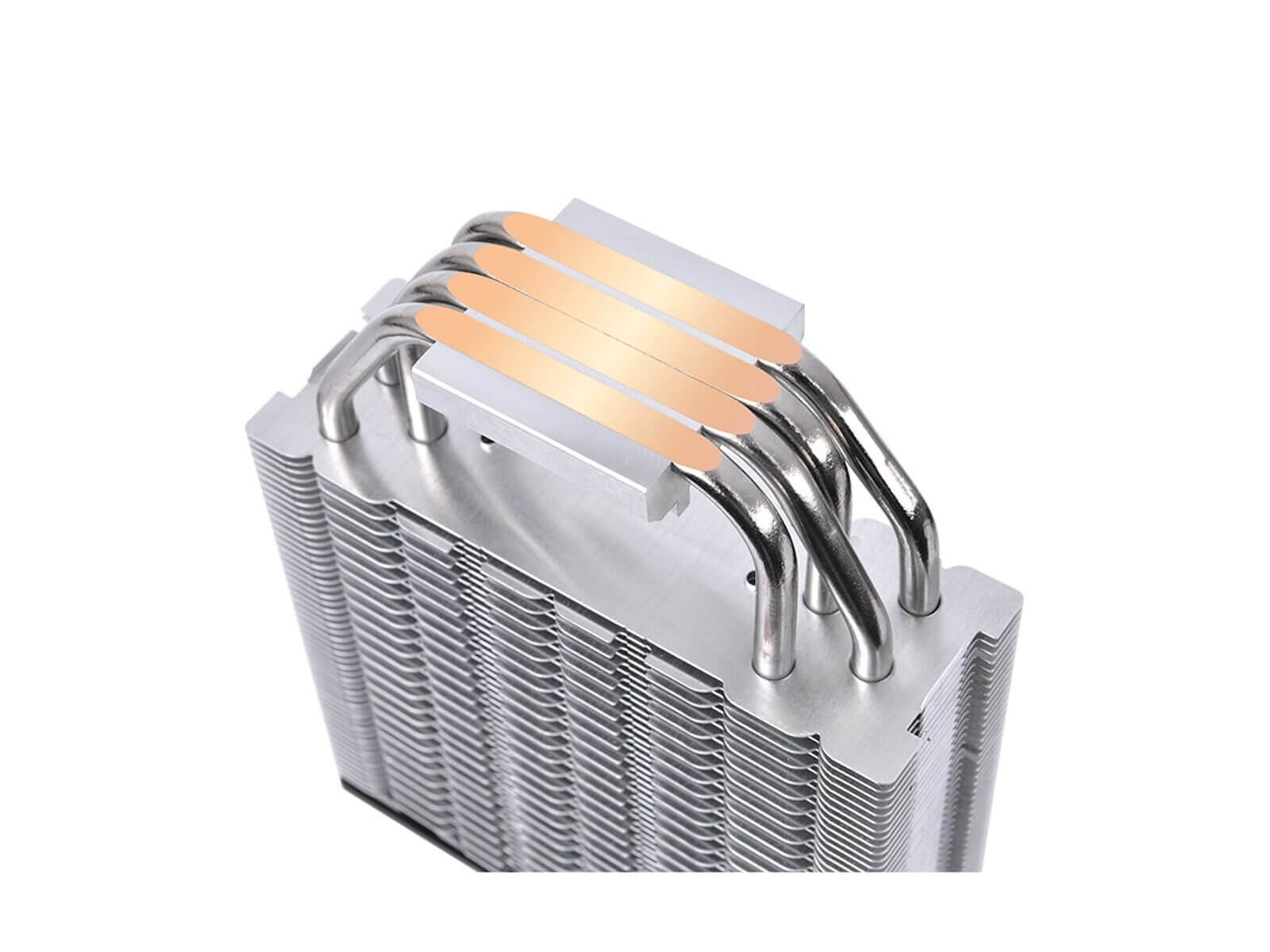

High-Performance U-shape copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.
| COMPATIBILITY | Intel: LGA 1851/1700/1200/1156/1155/1151/1150 AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
|---|---|
| Dimensions | 123.6 x 71.7 x 159.5 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Fan quantity | 1pcs |
| Fan Speed | PWM 500 ~ 2000 RPM |
| Rated Voltage | 12V |
| Start Voltage | 6.0 V |
| Rated Current | 0.48 A |
| Power Input | 5.76 W |
| Air Flow | 58.35 CFM |
| Static Pressure | 2.41 mm-H2O |
| Acoustical Noise | 23.6 dBA |
| Life time/Fan Life time | 40,000 hours |
| pin connect | 2510 – 4Pin |
| Cooling Power | 170 W |
