Long cycle life.
Small size and light weight.
Easy installation, plug and play.
Much safer, use LiFePO4 material.
communication, can match multiple brands of inverters.
battery packs can be connected in parallel to increase capacity usage.
| Model | SNP5.12KWH |

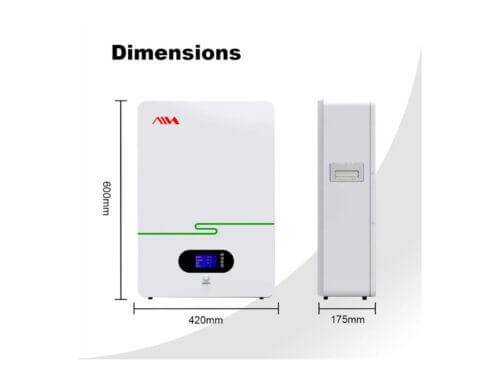

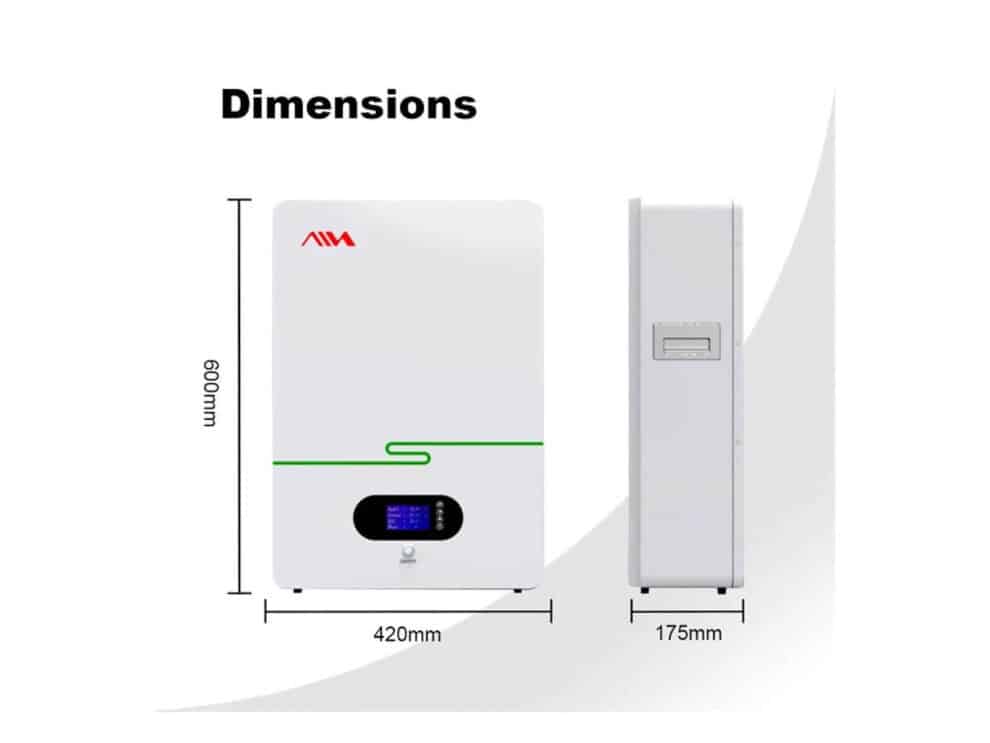

| Battery Dimensions | 600*420*175 |
| Nominal Voltage | 51.2V |
| Typical Capacity | 100Ah |
| Working Voltage | 43.2~58.4V |
| Standard Continuous Charge Current | 20A |
| Max. Charge Current | 50A |
| Standard Continued Discharge Current | 50A |
| Max. Continued Discharge Current | 100A |
| Approximate Weight | 52kg |
| Cycle Life（at 0.2C 80%DOD） | 3000 times |
| Design life | 5 years/ 3000 cycles |
| Operating Environment | RH10%~90%， Charge：0°C~45°C / Discharge：-20°C ~60°C |
| Storage Condition | RH10%~90%， 10℃~25℃：180 days / 0℃~35℃：90 days / -15℃~45℃：30 days |
Warning:
Charging and discharging a battery multiple times a day will significantly deteriorate its performance. Please note the limitations of each battery technology:
- Lead-acid batteries can only be discharged up to 50% before irreversible damage occurs.
- Gel lead-batteries can often be discharged up to 70% before irreversible damage occurs.
- Lithium batteries can be fully discharged if they are protected by a Battery Management System.
Due to the above limitations, loss of battery capacity is not covered under warranty.
