Diagrams
| Terminals | Wires | ||
|---|---|---|---|
| SW1, SW2 | Switch/button input terminals controlling O1 | L | Live (110-240 V) wire |
| SW3, SW4 | Switch/button input terminals controlling O2 | N | Neutral wire |
| O1, O2 | Load circuit output terminals | ||
| L | Live (110-240 V) terminals | ||
| N | Neutral terminal | ||
| LAN | Local Area Network RJ 45 connector | ||

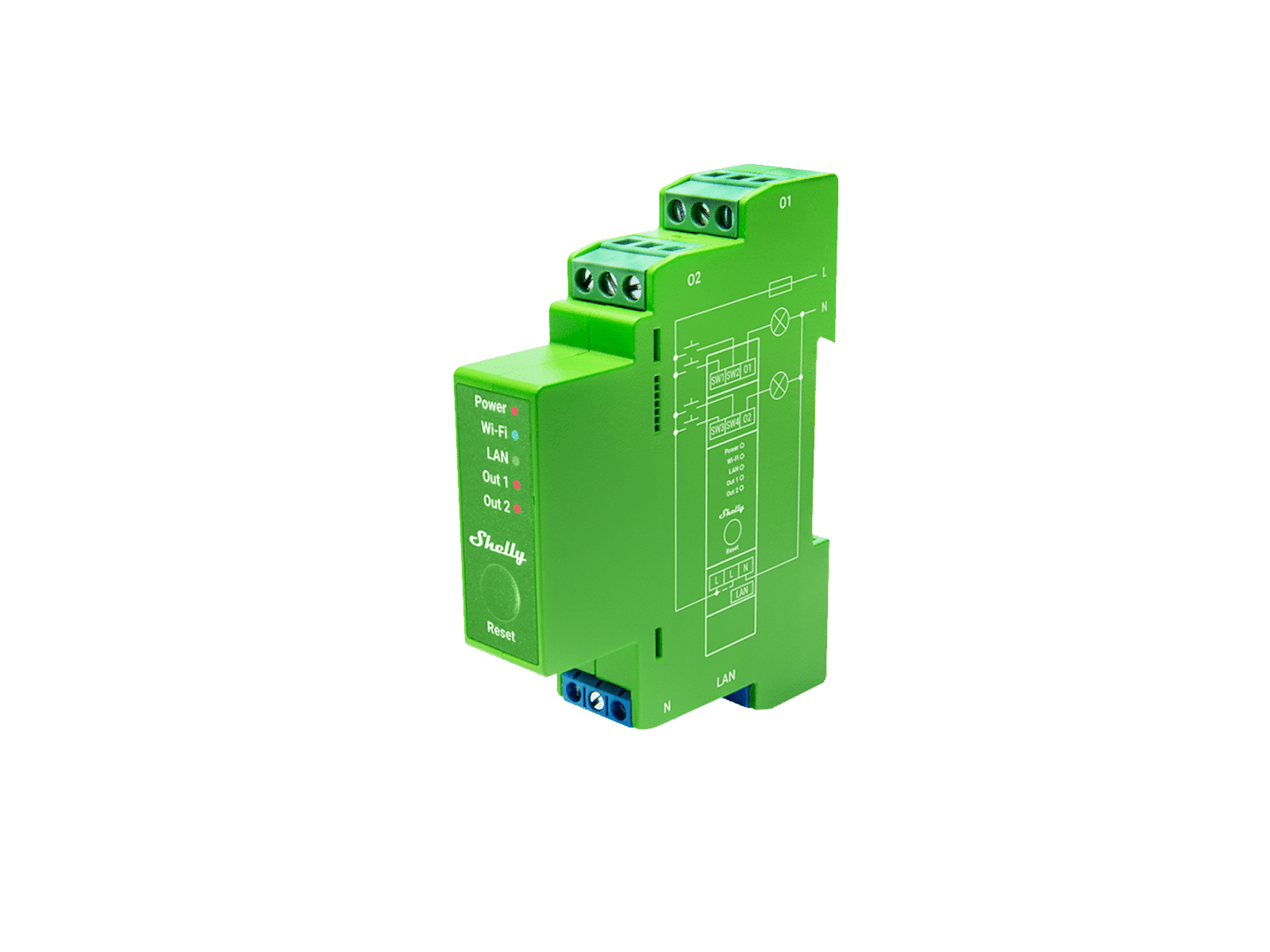

Specifications
| Physical | |
| Size (HxWxD): | 94x19x69 mm / 3.70×0.75×2.71 in |
| Weight: | 75 g / 2.7 oz |
| Screw terminals max torque: | 0.4 Nm / 3.54 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connector) (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (blue connector) |
| Mounting: | DIN rail |
| Shell material: | Plastic |
| Shell color: | Lime |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 – 240 V~ 50/60 Hz |
| Power consumption: | < 2 W |
| External protection: | 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Dimming type: | Trailing edge |
| Output circuits ratings | |
| Max. output power: | 200 W per channel |
| Sensors, meters | |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Power and energy meters: | Yes |
| Internal-temperature sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2401 – 2483 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 4.2 |
| RF band: | 2400 – 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
