SIMPLY THE BEST.
Rack mountable appliance, the full package at an affordable price.
Exceptional performance for datacenters & enterprises.
UPTO 150Gbps Connectivity
(4x 25Gbps, 4x 10Gbps, 4x 2.5Gbps)
Package Contents

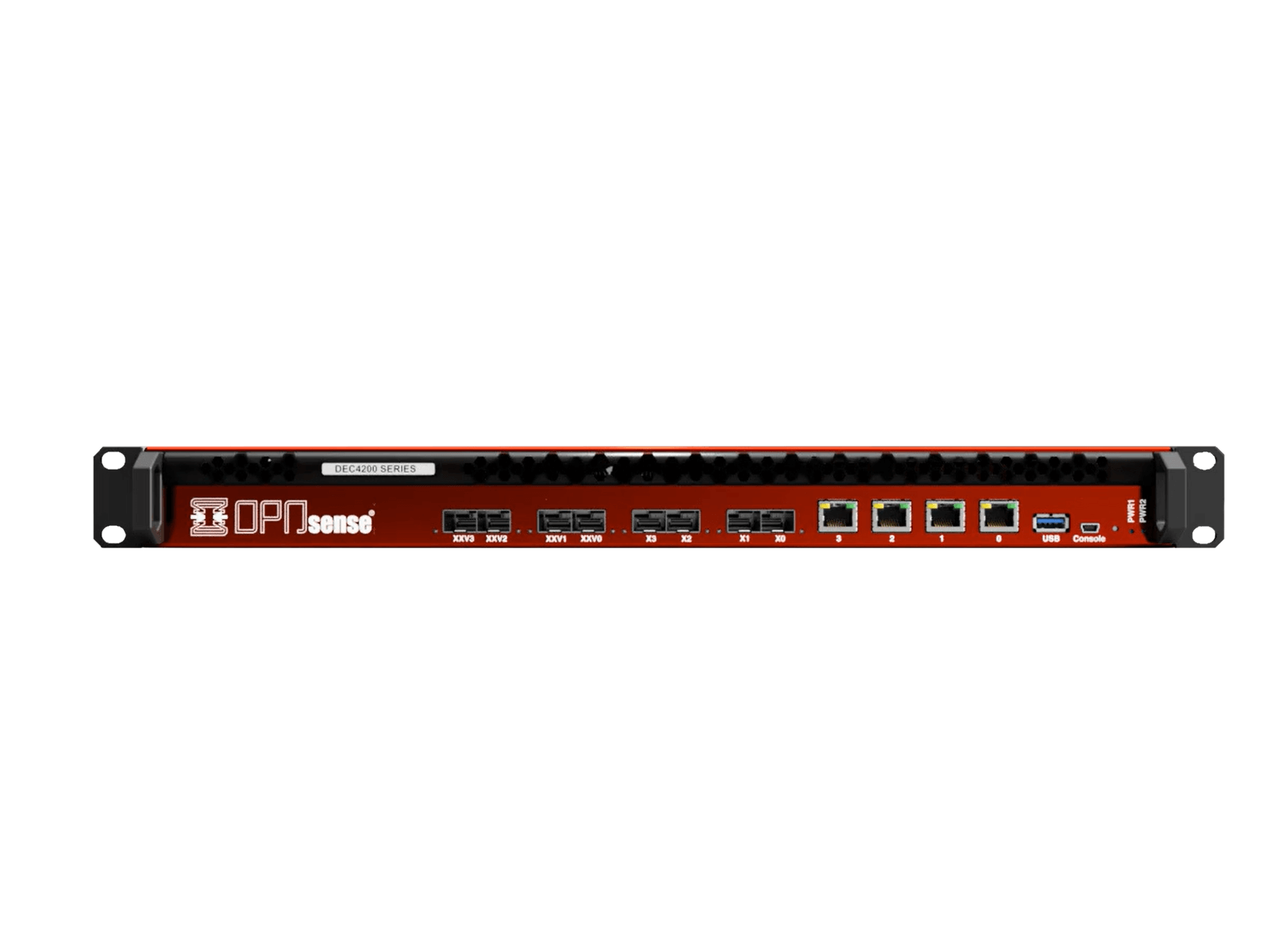

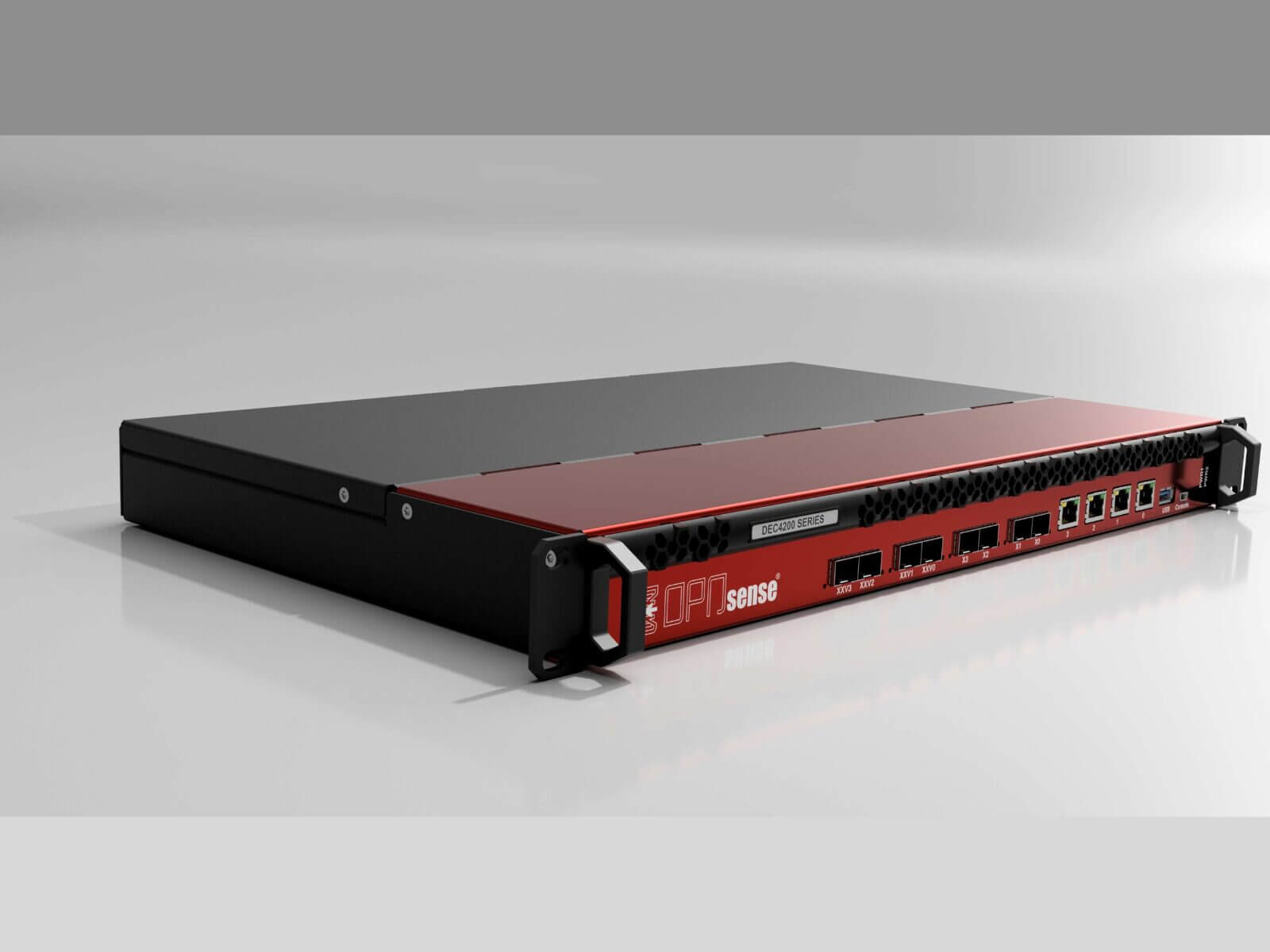

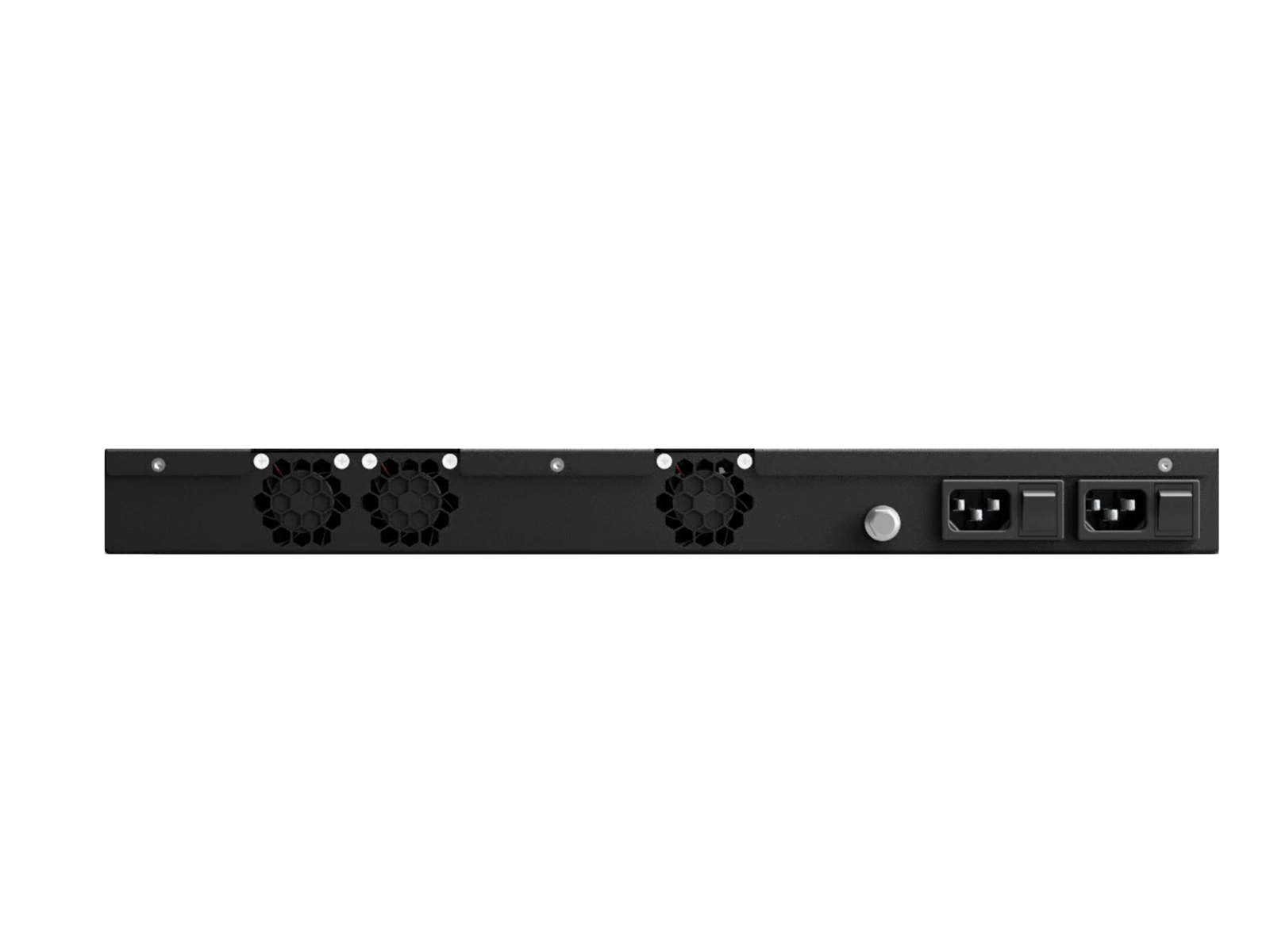

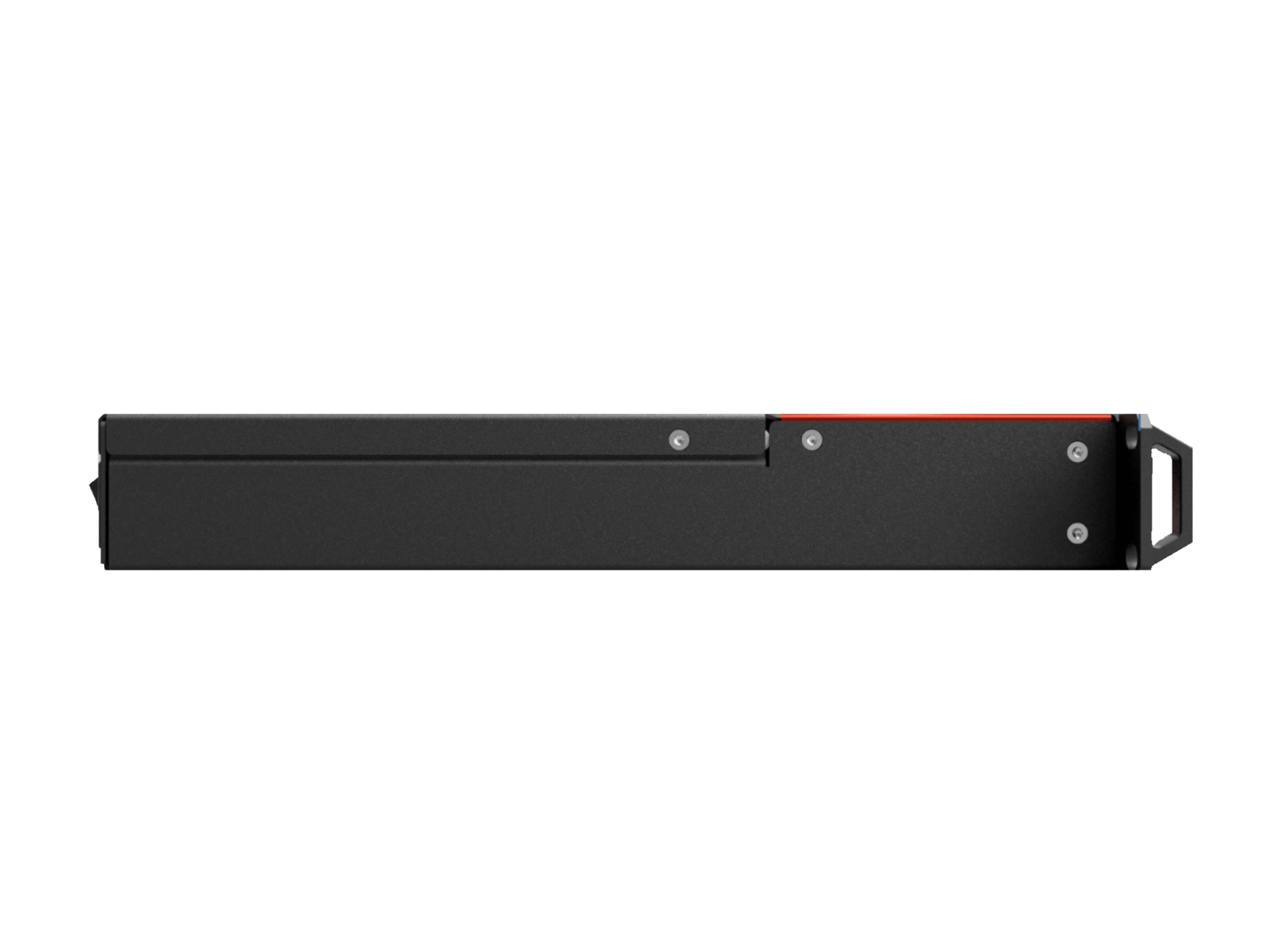

- 19″ 1U rack appliance
- Configuration cable
- Quickstart guide
| Models | DEC4280 |
 | |
| Software | |
| Preinstalled software | OPNsense® |
| License | Open Source + 1 year free Business Edition |
| Hardware Specifications | |
| SFP28 Ports [25Gbps] | 4 |
| SFP+ Ports [10Gbps] | 4 |
| GbE RJ45 Ports [ 100/1000/2500Mbps ] | 4 |
| USB 3.0 Ports | 1 |
| Console Port | 1 |
| Internal Storage | 1TB M.2. Solid State Flash |
| Memory | 64GB DDR4 |
| CPU Cores | 16 (max frequency 3.1Ghz) |
| Virtual Interfaces (802.1q VLANS)1 | 4093 |
| System Performance | |
| Firewall Throughput | 60Gbps |
| Firewall Packets Per Second | 5000Kpps |
| Maximum Firewall Port to Port Throughput | 21Gpbs |
| Firewall Port to Port Packets Per Second | 1450Kpps |
| Concurrent Sessions | 63000000 |
| New Connections Per Second | 50000 |
| Firewall Latency (average) | 100us |
| Firewall Policies (Recommended Maximum)1 | 10000 |
| IPsec VPN Throughput (AES256GCM16) | 2.5Gbps |
| IPsec VPN Packet Per Second (AES256GCM16) | 220Kpps |
| Threat Protection Throughput Packet Per Second | 625Kpps |
| Threat Protection Throughput | ~7.5Gbps |
| High Availability with State Synchronisation | Requires Two |
| Dimensions | |
| Height x Width x Depth (mm) | 43.8 (1U) x 482.6 (19″) x 274 (274 excl. mount/handle) |
| Height x Width x Length (inches) | 1.73 x 19 x 11.9 (10.8 excl. mount/handle) |
| Form Factor | 19″ Rackmountable |
| Weight (appliance only) | 4.85 Kg |
| Environment | |
| Power Requirements | 100-240VAC, 50-60Hz |
| Maximum Current (Single PSU) | 2.6A |
| Power Consumption (Typical – Single PSU) | 80W |
| Heat Dissipation | 273 BTU/hr |
| Operating Temperature | 0 to +45°C |
| Storage Temperature | -20 to +70°C |
| Humidity | 10-90% non-condensing |
| Regulatory Compliance | |
| FCC part 15 Class A, CE, Rohs |
