Cap
- Diameter:79mm
- Height:52mm
- Material:Aluminum, Plastic
- Fan Control:Yes
- NZXT RGB Channel Connector:1
- Rotation Orientation:Software adjustable Default, +90, +180, and -90 Degrees
LCD Display Panel
- Active Area:2.36” (60mm) Diameter
- Color:24-bit True Color LCD
- Resolution:320 x 320px
- Brightness:650 cd/m²

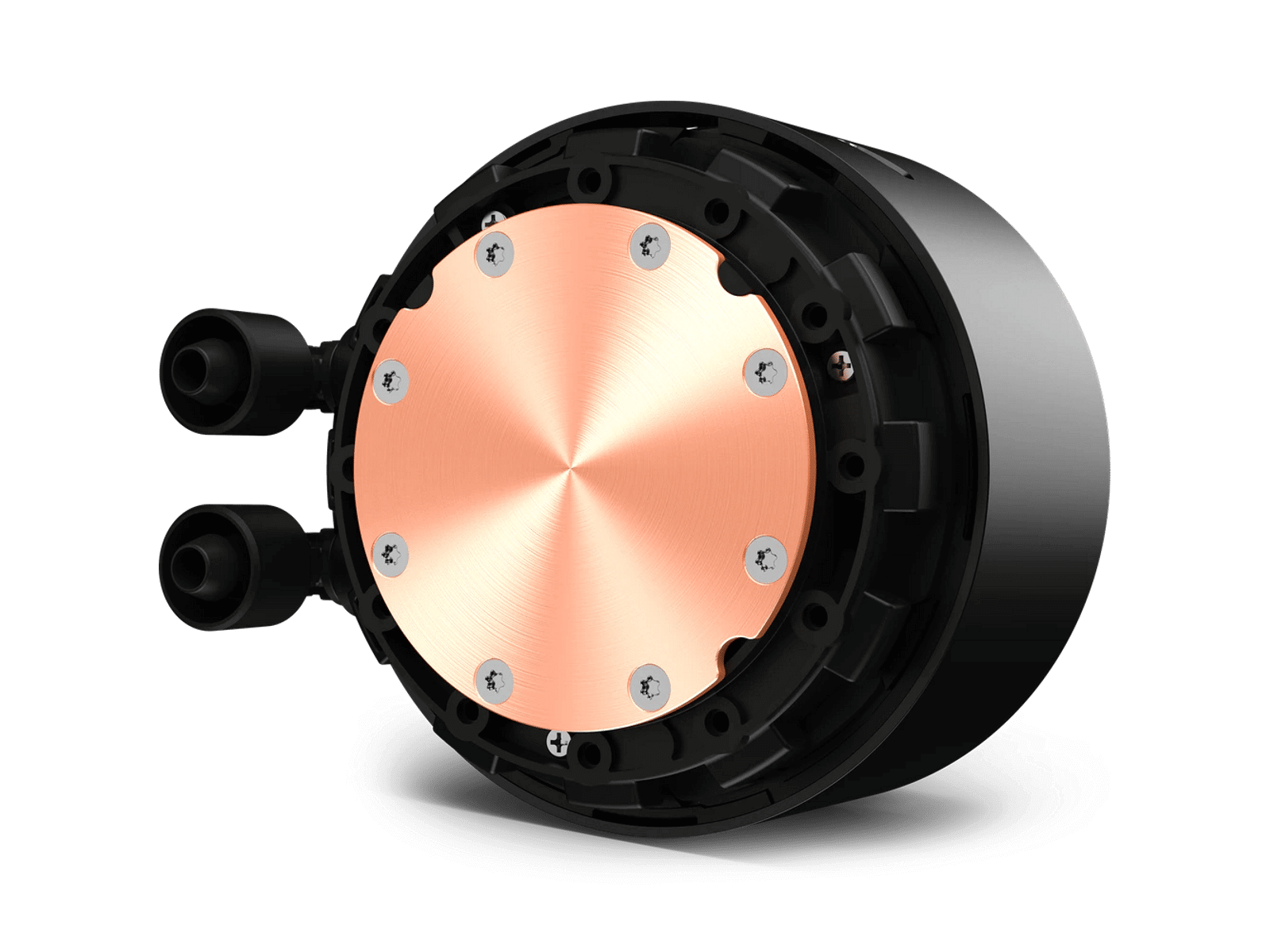

Water Block
- Material:Copper, Plastic
Pump
- Motor Speed:800 – 2,800 ± 300RPM
- Power:12V DC, 0.3A
Radiator
- Dimensions:143 x 315 x 30mm
- Material:Aluminum
Tube
- Length:400mm
- Material:Rubber with Nylon Sleeve
Fan Specs
- Model:Aer P 140mm
- Quantity:2
- Speed:500 – 1,800 ± 300RPM
- Airflow:27.27 – 98.17 CFM
- Static Pressure:0.21 – 2.71 mm-H₂O
- Noise:21 – 38 dBA
- Fan Connector:4-pin PWM
Compatible Socket & CPU
- Intel:Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066
- AMD:AMD Socket AM4, sTRX4*, TR4* (*Threadripper bracket not included)
