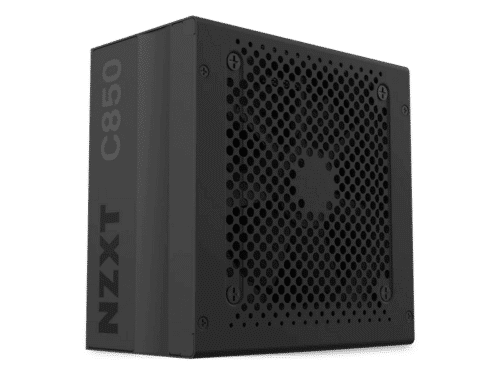

This PSU delivers 850 watts of clean, stable power which is ideal for gaming PCs with multiple GPUs, or higher power requirements. It is also useful for SLI or Crossfire builds.
- Modular design lets builders use only the cables they need
- The sleeved main cables lresist heat damage as well as fraying
- Fits any case conforming to the ATX standard
- Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6900 XT
- Zero RPM Fan mode silences the fan under low-load conditions
- Dynamic 120mm fluid-dynamic bearing fan
Tech Specs
Output Connectors
- 24-pin ATX power1
- 4+4-pin CPU power2
- 6+2-pin PCIe power6
- SATA power8
- Peripherals6
Cable Specs
- 24-pin ATX power610mm, Nylon sleeving
- 4+4-pin CPU power650mm, Nylon sleeving
- 6+2-pin PCIe power675 + 75mm, Nylon sleeving
- SATA power500 + 100 + 100 + 100 mm
- Peripherals500 + 100 + 100 mm
AC Input Rating
- 100 – 240Vac12-6A 50-60Hz
DC Output Rating
- +3.3V and +5V20A (Combined 100W)
- +12V70A (840W)
- -12V0.3A (3.6W)
- 5Vsb3A (15W)
- Total850W
Operation
- PF CorrectionActive @0.99
- MTBF100,000 hours
- Temperature0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
Energy Efficiency
- Rating80 Plus Gold
- 20% loading87% @115Vac
- 50% loading90% @115Vac
- 100% loading87% @115Vac
Fan Specs
- Dimensions120 x 120 x 25 mm
- Speed0 – 2,200 ± 200 RPM
- Airflow73.9 CFM
- Noise32.3 dBA
- BearingFluid Dynamic Bearing (FDB)
General
- Dimensions150 x 150 x 86mm
- Material(s)Steel, PCB and Plastic
- Compliance StandardATX12V v2.4 / EPS12V v2.92
