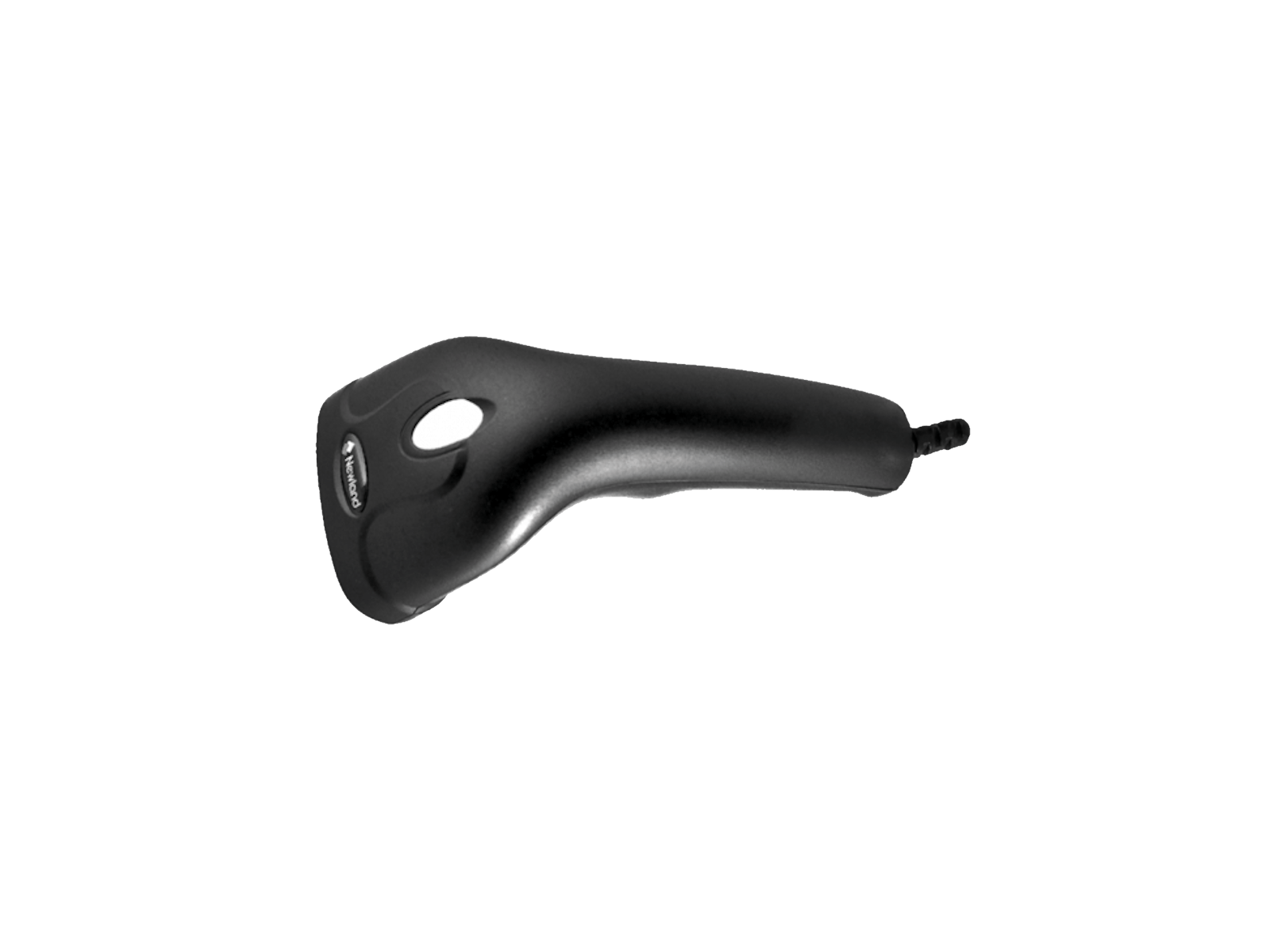

The HR12 Anchoa handheld scanner is a practical and user friendly entry level scanner at an extremely competitive price. The Anchoa incorporates Newland’s 1D chip technology for excellent 1D barcode scanning performance at exceptionally low power consumption.
The HR12 Anchoa can perform up to 300 scans per second, which translates into very fast and accurate barcode capturing. In addition, its compact size, ergonomic and solid state design makes a smart solution for extensive use in varied environments.
Ergonomic Design.
The relatively small design of the HR12 Anchoa (163.0 x 68.4 x 58.5 mm L x W x H) combined with the low weight (130g with USB) and solid state design makes for a reliable and easy to handle scanner.
Superior decoding performance.
Delivers speedy and accurate (built-in laser aimer) scanning performance and supports most 1D barcode symbologies.
Eco friendly.
The HR12 Anchoa operates on 55mA ± 5mA current only. This means increased energy savings and an eco friendly business solution.
Application scenarios.
Retail chains, inventory counting, express delivery services, warehouse management, food traceability, healthcare, manufacturing, electricity meter reading and more.
| 1D | All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6,ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5,GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. |
| Image Sensor | CCD 1500 |
| Illumination | Red LED (610nm~640nm) |
| Scan Modes | Trigger Mode, Sense Mode, Continuous Mode, Command Trigger Mode |
| Scan Rate | 300 scans per second |
| Depth of Field EAN 13 (13mil) | 50-655mm |
| Depth of Field Code 39 (5mil) | 55-165mm |
| Field of View Horizontal | 40° |
| Scan Angle Roll | 30° |
| Scan Angle Pitch | ±60° |
| Scan Angle Skew | ±60° |
| Minimal Print Contrast | 30% |
| Processor | 0110 Chip |
| Buttons | Trigger |
| Current @ 5VDC Operating | 55±5mA |
| Current @ 5VDC Standby | 21mA±2mA |
| Dimensions (mm) | 163.0×68.4×58.5mm |
| Input Voltage | 5VDC±5% |
| Interfaces | USB |
| Material | PC, ABS |
| Notifications | Beep, LED indicator |
| Weight | 130g (including USB cable) |
| Operating Temperature | -20℃ to 60℃ (-4°F to 140°F) |
| Storage Temperature | -40℃ to 85℃ (-40°F to 185°F) |
| Humidity | 5%~95% (non-condensing) |
| Electro Static Discharge (ESD) | ±8 KV (contact discharge); ±10 KV (air discharge) |
| IP Rating | IP41 |
