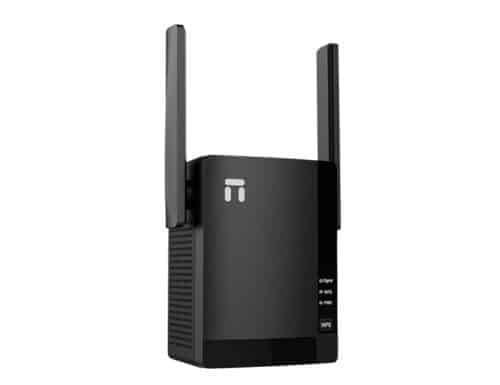

The Stonet AC1200 Wireless dual band range extender E3 is designed to establish a highly efficient mobile office or entertainment network with wider coverage. E3 works as a Range Extender in default, which will pick up the wireless signal from your main router and expand it to somewhere that your main router may not reach. With portable design, it’s a perfect choice for big house owners or anyone else for work or play.
| Wireless | |
| Standards | IEEE 802.11b/g/n 2.4GHz |
| IEEE 802.11a/n/ac 5GHz | |
| Signal Rate | Up to 300Mbps 2.4GHz |
| Up to 300Mbps 5GHz | |
| Frequency Range | 2.4-2.4835GHz and 5.150~5.85GHz |
| Transmit Power | 20dBm(MAX) |
| Data Transfer Rates | 802.11n: 40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) |
| Wireless Modes | AP, Repeater |
| Wireless Security | Support 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Hardware | |
| Standards | IEEE 802.11b/g/n/ac |
| Interface | 1* 10/100Mbps Ethernet port |
| 2×2 11b/g/n/ac 2.4/5 GHz dual band | |
| Buttons | 1x WPS button/ 1x Reset to default button |
| LED Indicators | Power/Single Good/Single Poor/WPS |
| Antenna | 2x 3dBi 2.4G+3dBi 5G Dual band Omin Antenna |
| Power Supply | DC 3.35V/3A |
| Dimensions (L x W x H) | 74 x 50 x1.6mm |
| Others | Support IPv4 / IPv6 / DHCP server/ LAN IP set / Firmware Upgrade/ Diagnostic / Ping Watchdog / System Log |
| Advanced | Firmware Upgrade, Factory Defaults, Reboot |
| Others | |
| Certification | FCC, CE, EAC |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package | 1* E3 1* Quick Installation Guide (Multilingual) |
