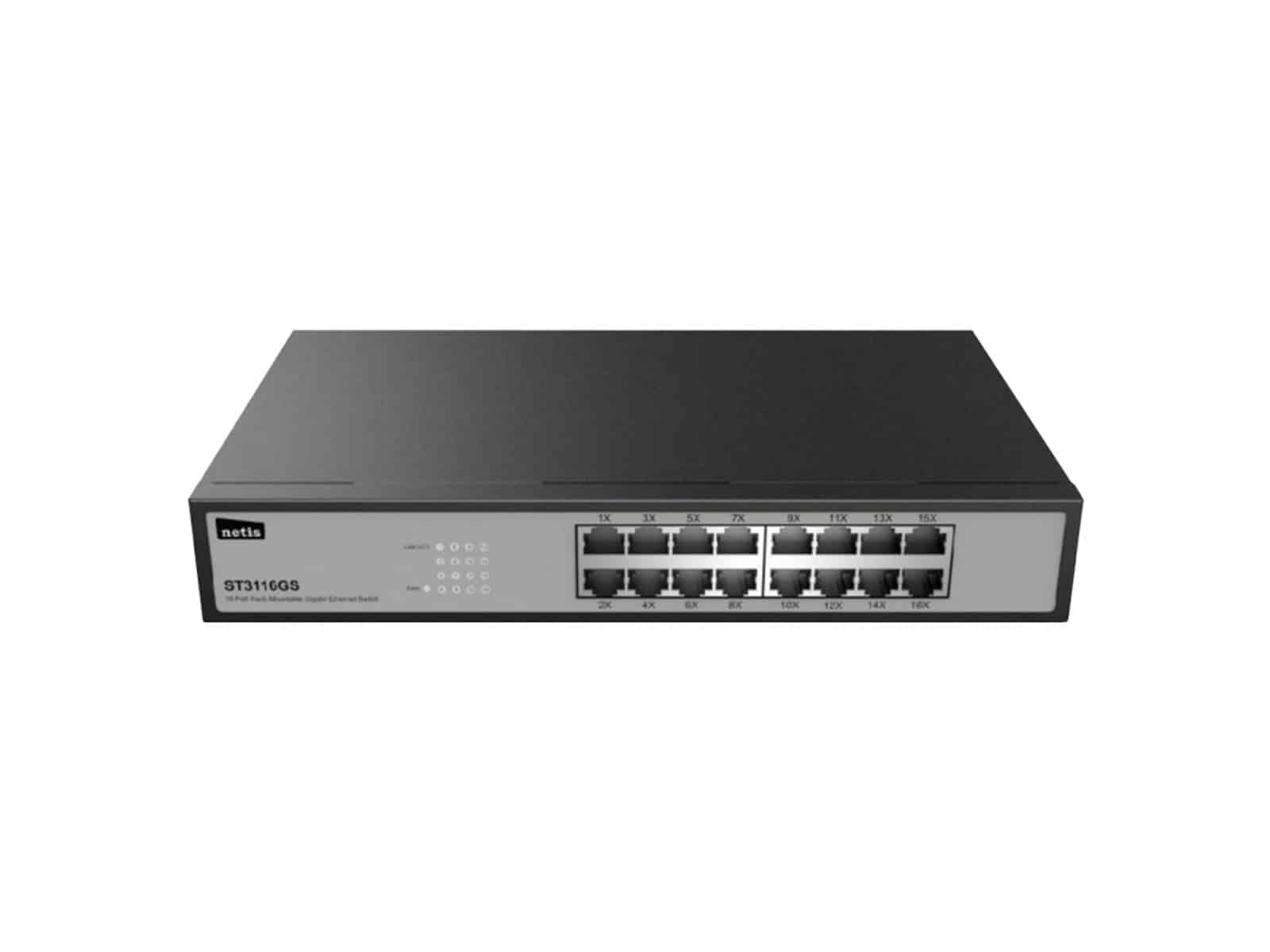

The netis ST3116GS Gigabit Ethernet Rackmount Switch provides 16 10/100/1000Mbps Auto-Negotiation RJ45 ports .It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The 16 Port Gigabit Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network.
| Hardware | |
| Interface | 16 * 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | PWR, 1-16 10/100/1000M, 1-16 LINK/ACT |
| Power Supply | 100-240 V AC/50-60Hz |
| Dimensions (L x W x H ) | 280 x 173 x 44 mm |
| Switching Features | |
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000BASE-T , IEEE 802.3x Flow Control, IEEE 802.3az |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Data Transmission Rate | 10/100/1000Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
| Switching Fabric Capacity | 32Gbps |
| Built-in Buffer | 2M bits |
| Jumbo Frame | 9KB |
| MAC Address Table | 2K |
| Others | |
| Certification | FCC, CE, BSMI |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -20℃~70℃ Operating Humidity: 5%~90% non-condensing S torage Humidity: 5%~90% non-condensing |
| Package | 1 * ST3116GS 1 * Quick Installation Guide 2 * Brackets 1 * Power Cord |
