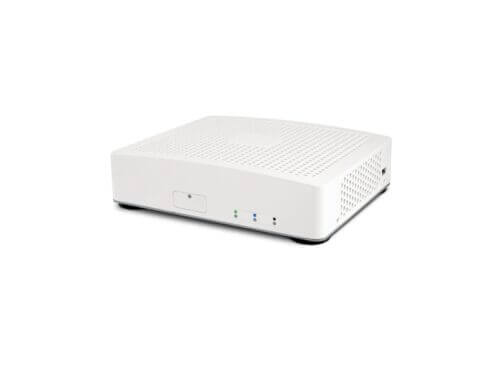

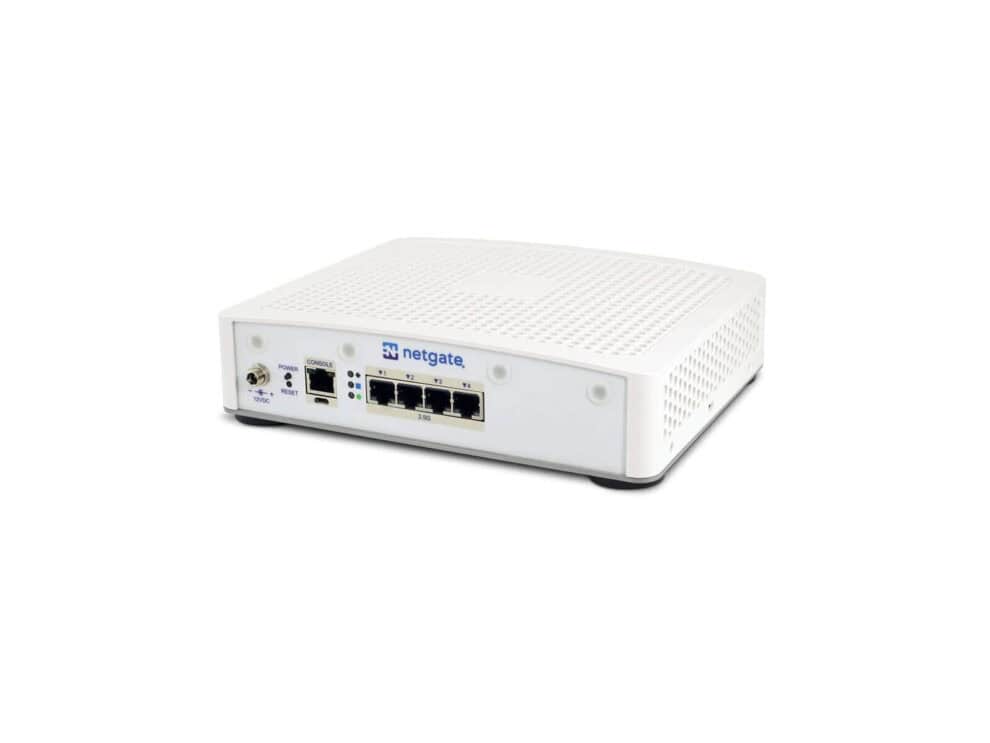

The Netgate 4200 is ideal for pro-home, small/medium businesses, branch and edge deployments that require flexible port configurations to support 1 to 2.5 Gbps WAN capabilities across four discrete, unswitched 2.5 Gbps RJ-45 ethernet LAN ports – all in a silent desktop form factor.
L3 Forwarding
(Router)
- IPERF3 Traffic: 8.75 Gbps
- IMIX Traffic: 9.28 Gbps
Firewall
(10k ACLs)
- IPERF3 Traffic: 8.61 Gbps
- IMIX Traffic: 3.21 Gbps
IPsec VPN
(AES-GCM-128 w/AES-NI)
- IPERF3 Traffic: 3.2 Gbps
- IMIX Traffic: 1.05 Gbps
Netgate 4200 performance tests conducted with pfSense Plus software version 23.09.1
CPU: Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz. Delivers up to 3x on benchmarking results for routing, firewall and IPsec VPN versus the Netgate 4100.

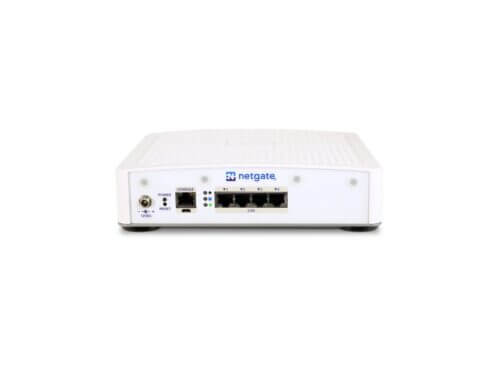

Network Ports: Four 2.5G independent and configurable RJ45 LAN ports for maximum flexibility. Configure it for single or dual WAN, or high-availability failover.
Storage: 128 GB NVMe M.2 SSD
Memory: 4 GB LPDDR5 RAM. DDR5 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling: The passive cooling system and low power draw of the Netgate 4200 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.
pfSense Plus software provides the performance, flexibility, reliability and business assurance expected from leading secure networking applications:
- Up to 10 Gbps performance
- Flexible 3rd-party application options
- Traditional management mechanisms
- Proven reliability
- Complete business assurance support
All at a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular pfSense Plus use cases include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP Server, IDS/IPS, failover WAN, and much more.
| CPU | Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz |
| CPU Cores | 4-Core |
| Physical Network I/O ports | (4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet LAN ports |
| Storage | 128 GB NVMe M.2 SSD |
| Memory | 4 GB LPDDR5 |
| Physical Expansion Card Slots | 1x M.2 (B-key slot) USB 1x M.2 (B-key slot) x1 PCIe 3.0, USB 1x M.2 (M-key slot) x4 PCIe 4.0 |
| Console Port | 1x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system) |

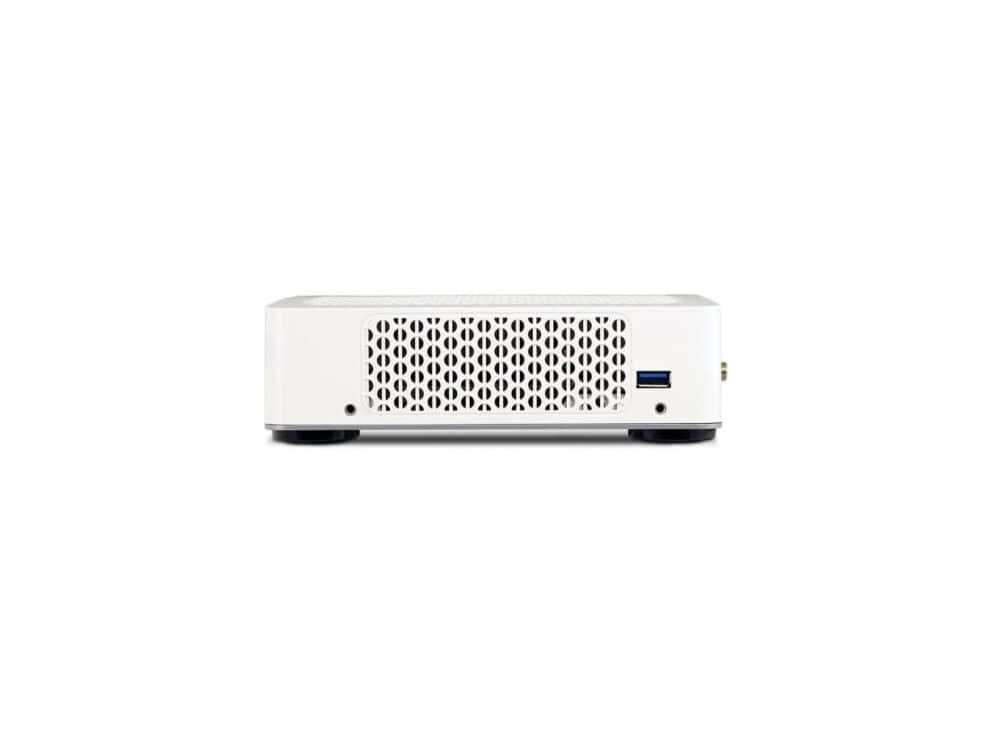

| USB Ports | 1x USB 3.0 jacks (USB-A female) Located on right side rear when viewed from system front |
| LED | 3x 3-color LEDs (RGB) Software / bootloader controllable via GPIO |
| Enclosure | Desktop – Aluminum, plastic, and steel enclosure. 8.66 x 7.1 x 2.3 inches 220 x 180 x 60 mm |
| Cooling | Passive – integrated aluminum chassis and heatsink |
| Power | External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector – AC Inlet: IEC320-C7 (2 PIN) – – Power Cord: One US, UK, EU or ANZ power cord included. – US Power Cord: NEMA 1-15-P to IEC320-C7 – UK Power Cord: BS 1363 to IEC320-C7 – EU Power Cord: CEE7/16 to IEC320-C7 – ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7 |
| Environmental | 0°C (32°F) to 40°C (104°F) – ambient |
| Certifications | CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA |
