Power your next-gen gaming setup with the MSI X870E Gaming Plus WIFI AM5 ATX Gaming Motherboard, engineered for seamless performance with AMD Ryzen™ 9000, 8000, and 7000 Series processors. Boasting DDR5 memory support up to 8200+ MT/s (OC), PCIe 5.0 slots, and blazing-fast USB4 and 5G LAN connectivity, this board is built for gamers, creators, and power users alike. With Wi-Fi 7 and Bluetooth 5.4, it delivers unmatched wireless speed and reliability, ensuring smooth gameplay and lag-free streaming. MSI’s exclusive EZ DIY features, including EZ M.2 Shield Frozr II, EZ M.2 Clip II, and EZ PCIe Clip II, simplify hardware installation, even in tight builds.
The X870E Gaming Plus WIFI offers robust performance through a 14+2+1 digital power phase VRM design, complete with dual 8-pin power connectors and 60A Smart Power Stages for clean, stable power delivery to the CPU and GPU. With Frozr Guard thermal solutions, extended heatsinks, and 7W/mK MOSFET thermal pads, it keeps your system cool under pressure. MSI’s Memory Boost and Core Boost technologies further elevate system responsiveness, allowing for efficient multitasking, high frame rates, and intense overclocking potential. Whether you’re gaming, rendering, or diving into AI workloads, this motherboard is your ultimate powerhouse.
Designed with creators and DIY builders in mind, the pre-installed I/O shield and clean circuit layout enhance durability while reducing setup time. The EZ M.2 Clip II Remover tool and rebounding EZ PCIe Clip II make upgrading SSDs or GPUs quick and effortless. Featuring a comprehensive Cooling Wizard via MSI Center, users can manage fan and pump speeds with precision, reducing system noise while maximizing thermal efficiency. The motherboard supports multi-zone RGB lighting with Mystic Light, allowing full customization and syncing with compatible MSI components for a personalized look.
Enjoy intuitive system tuning through the redesigned CLICK BIOS X and gain full control of your PC’s performance. With USB 4.0, HDMI 2.1 4K@60Hz support, and multiple high-speed M.2 slots including Gen5 x4 for lightning-fast storage, the MSI X870E Gaming Plus WIFI delivers future-ready connectivity and expansion. This board is optimized for next-gen gaming and productivity, making it an ideal foundation for building a powerful and aesthetically pleasing high-performance PC.
FEATURES:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
- Socket: AMD Socket AM5
- CPU: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Chipset: AMD X870E Chipset
- Memory Support: 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)
- Graphics Interface:
- 1x PCIe 5.0 x16 slot
- 1x PCIe 4.0 x16 slot
- 2x PCIe 3.0 x1 slots
- Display Interface:
- 1 x USB4 port supports USB Type-C display output
- Support 4K@60Hz as specified in HDMI™ 2.1 – Requires
- Processor Graphics
- Storage:
- 1 x M.2 Gen5 x4 128Gbps slot
- 2 x M.2 Gen4 x4 64Gbps slots
- 4x SATA 6Gbps ports

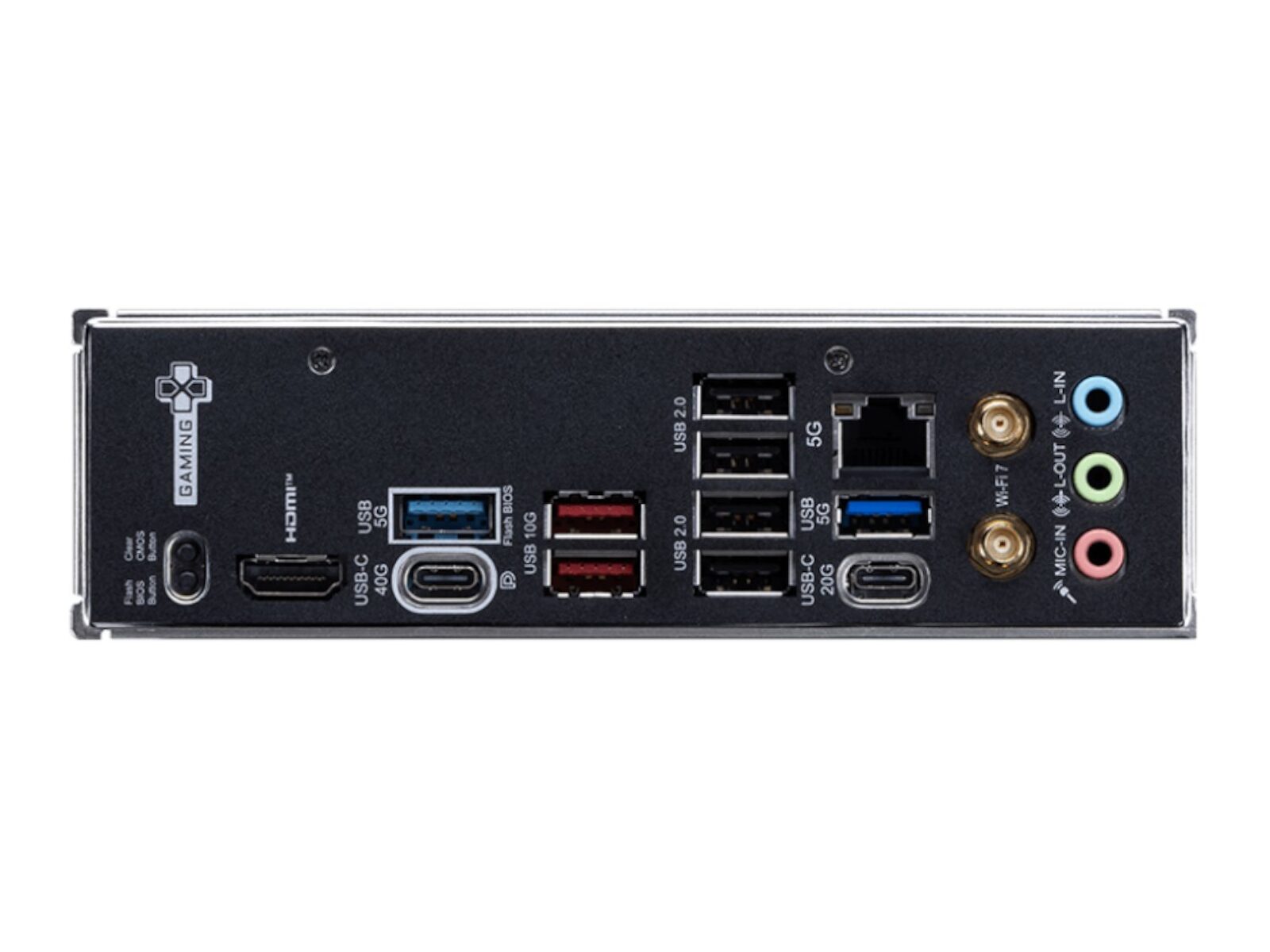

- USB Ports (Rear):
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 2x USB 10Gbps Type A
- 1x USB 20Gbps Type C
- 1x USB 40Gbps Type C
- USB Ports (Front):
- 6x USB 2.0
- 4x USB 5Gbps Type A
- 1x USB 10Gbps Type C
- LAN: Realtek® 5G LAN
- Wireless / Bluetooth: Wi-Fi 7 Solution, Bluetooth 5.4
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Form Factor: ATX
- Operating System: Support for Windows® 11 64-bit
- Dimensions: 24.38 x 30.48 cm
WHAT’S IN THE BOX:
- MSI X870E Gaming Plus WIFI AM5 ATX Gaming Motherboard – Black x1
- EZ Wi-Fi Antenna x1
- EZ M.2 Clip II Remover x1
- EZ M.2 Clip II x2
- 1 to 3 EZ Conn-Cable (V2) x1
- SATA Cables x2
- Quick Install Guide x1
