The PRO Series is utilised by professionals from a wide range of fields. The lineup offers a superb experience with exceptional performance and top-notch quality. The MSI Lightning Gen 4 PCI-E effectively doubles the bandwidth of the x16 interface, increasing it to 64GB/s. MSI PRO Series motherboards are compatible with a wide range of storage standards, allowing users to easily connect any ultra-fast storage device.
The latest DDR5 memory significantly enhances DDR performance. MSI PRO Series motherboards are equipped with cutting-edge memory performance capabilities, thanks to their dedicated SMT welding process and MSI Memory Boost technology. The 16.8 million colours and LED effects of MSI Mystic Light enhance the visual experience by adding vibrant and dynamic colours. MSI Mystic Light is a software that allows you to control the RGB lighting of your PC.
Core Boost technology utilises MSI’s premium layout and optimised power design to deliver CPU current with increased speed and precision. The software supports multi-core CPUs and optimises CPU overclocking. The VRM heatsink dissipates the heat generated by the MOS. The reliable performance of all cores working at high speed is ensured by the use of high-quality 7W/mK MOSFET thermal pads and additional choke thermal pads. The efficiency of PCH is maintained by reducing dust and noise through the use of a heatsink on the chipset.
This design is intended to support the most commonly used All-In-One and customised water cooling solutions. You can control the speed of the water pump by using a dedicated 3 amp water pump PIN header. The installation process is both safe and easy, thanks to the presence of a clearly indicated “keep-out-zone.”
FEATURES:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- High-Quality PCB: 6-layer PCB made of 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
SPECIFICATIONS:
- Socket: AM5
- CPU Support: Supports AMD Ryzen™ 7000 Series Desktop Processors
- Chipset: AMD B650
- DDR5 Memory: DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Max. overclocking frequency: 1DPC 1R Max speed up to 6000+ MHz, 1DPC 2R Max speed up to 6000+ MHz
- Memory Channel: Dual Channel DDR5
- DIMM Slots: 4
- Max Memory (GB): 192
- PCI-E x16: 1
- PCI-E x1: 2
- SATA 6G: 4
- M.2 Slot: 2
- RAID: 0/1/10
- LAN: Realtek® 8125BG 2.5G LAN
- Power Connector(ATX_PWR): 1
- Power Connector(CPU_PWR): 1
- CPU Fan: 1
- Pump Fan: 1
- System Fan: 3
- Front Panel (JFP): 2
- Chassis Intrusion (JCI): 1
- Front Audio (JAUD): 1
- Com Port (JCOM): 1
- Addressable V2 RGB LED connector (JARGB_V2): 2
- RGB LED connector(JRGB): 2
- TPM pin header(Support TPM 2.0): 1

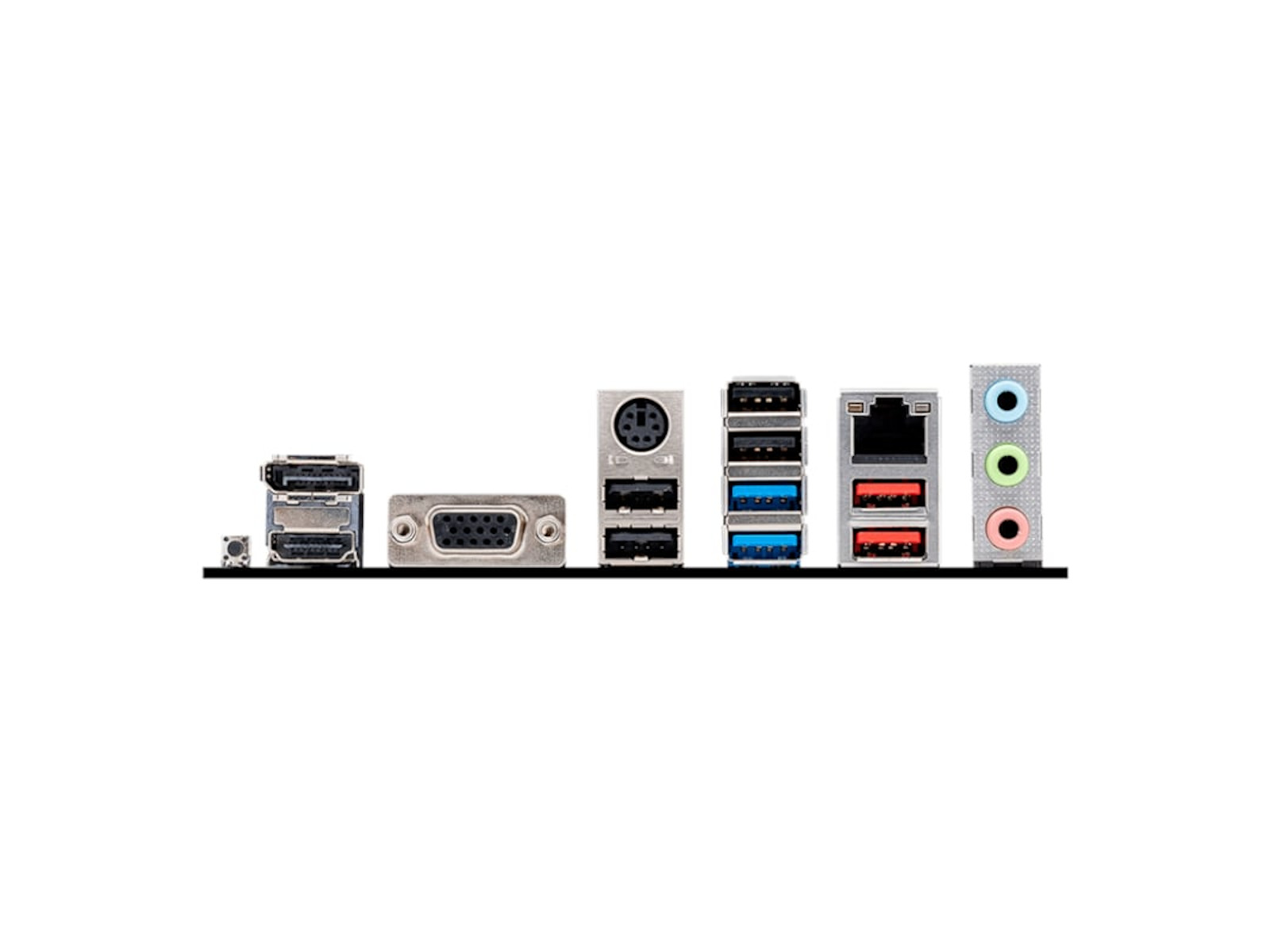

- USB 2.0 ports: 4
- USB 3.2 Gen1 Type A ports: 2
- USB 3.2 Gen2 Type C ports:1
- Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC897 Codec)
- VGA: 1
- HDMI: 1
- DisplayPort: 1
- DirectX: 12
- Form Factor: mATX
- Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit
WHAT’S IN THE BOX:

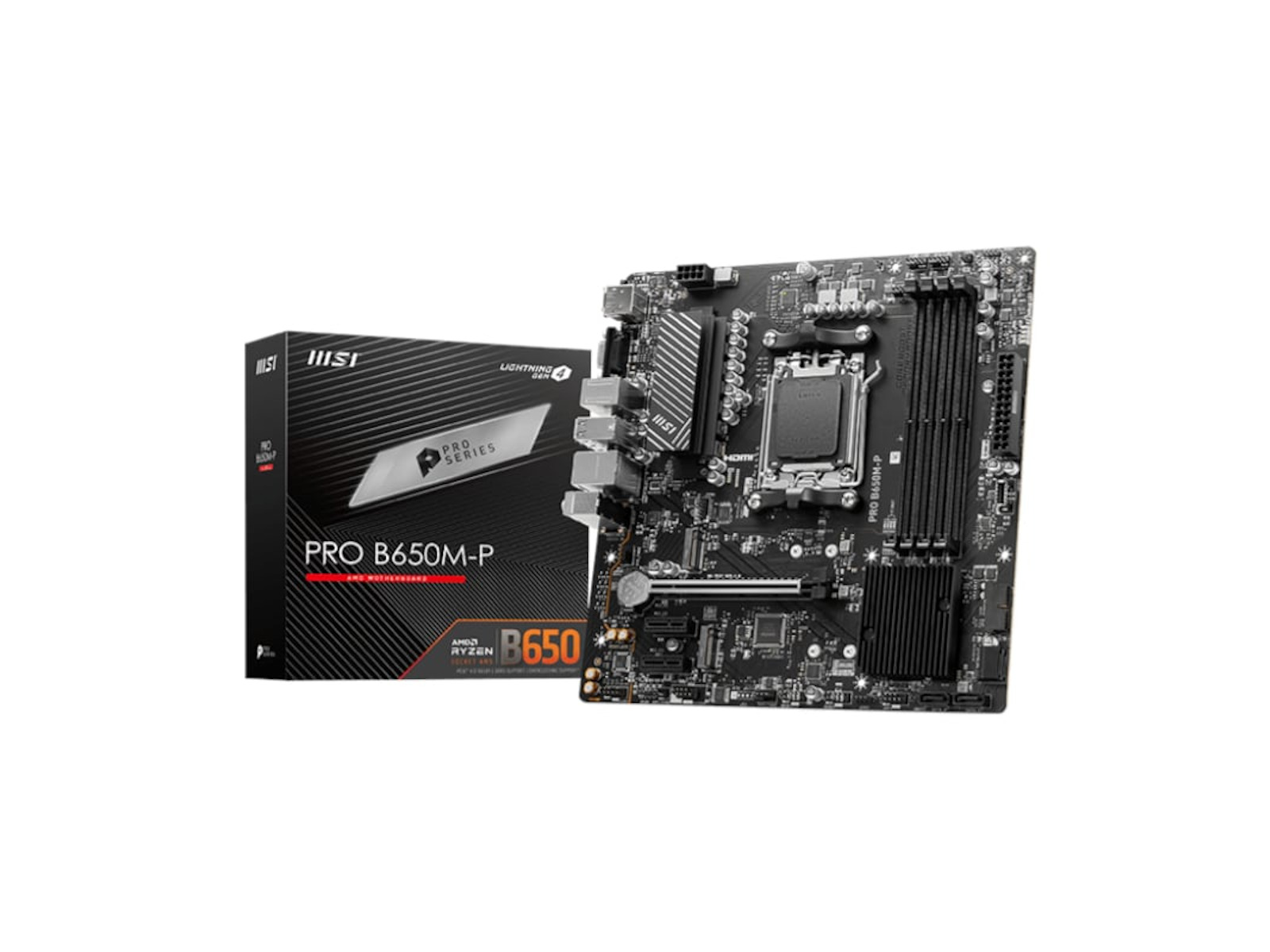

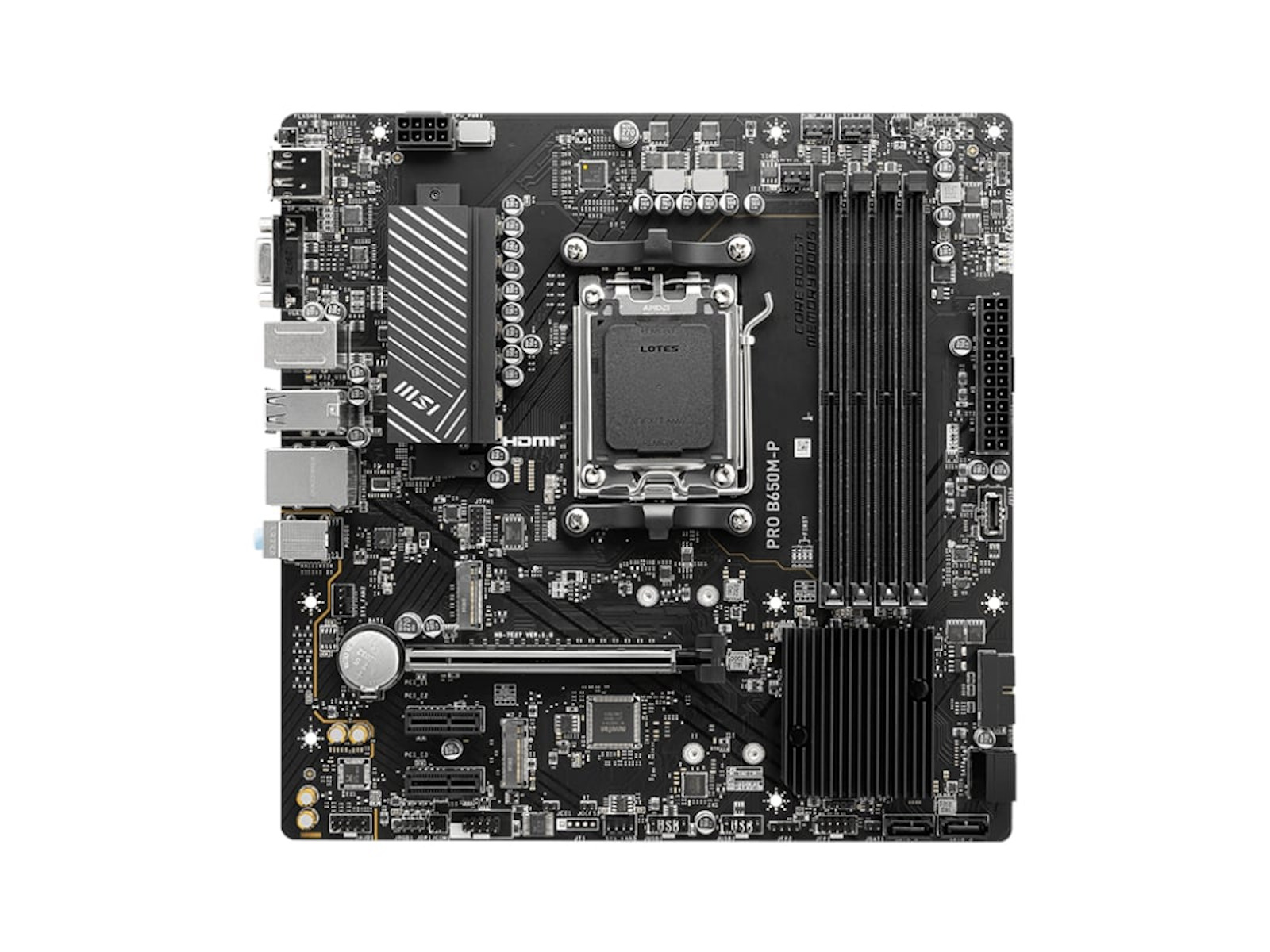

- MSI PRO B650M-P AMD AM5 mATX Gaming Motherboard – Black x1
- I/O Shield x1
- SATA Cable x1
- EZ M.2 Clips x1
- Quick Install Guide x1
