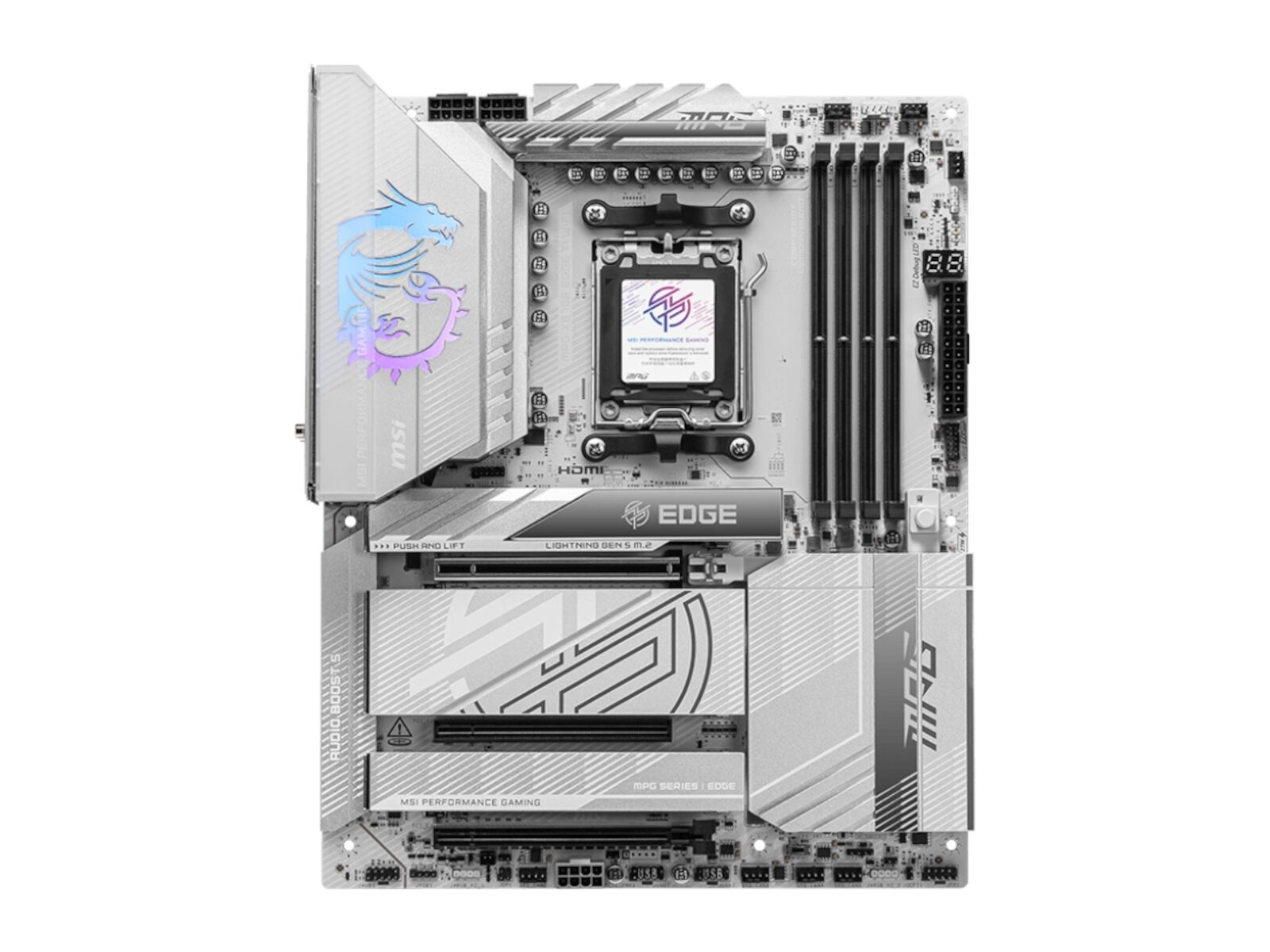

The MSI X870E EDGE TI WIFI AM5 ATX DDR5 Gaming Motherboard is the ultimate choice for gamers and PC enthusiasts seeking a premium white-themed build with cutting-edge performance. Part of the MSI MPG (MSI Performance Gaming) Series, this motherboard blends sleek, modern aesthetics with top-tier engineering to support the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors. With Wi-Fi 7, 5G LAN, USB 4.0, and full PCIe 5.0 compatibility, it delivers blazing-fast connectivity and next-gen speed for gaming and content creation. The silver-white design makes it a showstopper in any build, while Mystic Light RGB control allows you to create a custom lighting setup with millions of colors and effects.
Engineered for enthusiasts, the MSI X870E EDGE TI WIFI features EZ DIY tools like EZ PCIe Release, EZ M.2 Clip II, and EZ Antenna, ensuring effortless component installation and upgrades. With EZ M.2 Shield Frozr II, installing or removing SSDs is tool-free and hassle-free, while the pre-installed I/O shield guarantees a smooth and secure fit during assembly. Designed with professionals and power users in mind, this motherboard supports USB 40Gbps Type-C, multiple high-speed USB ports, and ultra-fast Lightning Gen 5 M.2 storage, making it ideal for large data transfers and high-performance workflows.
The 14+2+1 Duet Rail Power System with 80A Smart Power Stages ensures stable overclocking and reliable power delivery, even under heavy gaming or rendering workloads. With dual 8-pin CPU connectors, enlarged heatsinks with heat-pipes, and MOSFET thermal pads rated at 7W/mK, the board keeps your system cool while pushing the limits of DDR5 memory speeds up to 8400+ MT/s (OC). MSI Memory Boost technology and the optimized PCB design enhance bandwidth, reduce latency, and maximize stability, making it perfect for demanding applications, eSports, and streaming.
Connectivity and audio performance are equally impressive with Realtek ALC4080 codec, 7.1-channel HD sound, and Audio Boost 5 for an immersive gaming experience. With support for 4 x M.2 slots, RAID 0/1/10, HDMI, and dual Type-C display outputs, this ATX motherboard is future-proof for both gaming and professional setups. The MSI X870E EDGE TI WIFI sets a new benchmark for performance, aesthetics, and usability, making it the best white X870E ATX DDR5 gaming motherboard for high-end Ryzen builds.
FEATURES:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
- Socket: AMD Socket AM5
- CPU: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Chipset: AMD X870E Chipset
- Memory Support: Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
- Memory Channel: Dual
- DDR5 DIMM slots: 4
- Max Memory (GB): 256
- PCI-E x16: 3
- PCI-E x1: 1
- Storage:
- SATA 6G: 4
- M.2 Slot: 4
- RAID: 0/1/10
- LAN: 1x Realtek® 8126 5G LAN
- Wi-Fi and Bluetooth: Wi-Fi 7 | Supports Bluetooth® 5.4**, MLO, 4KQAM

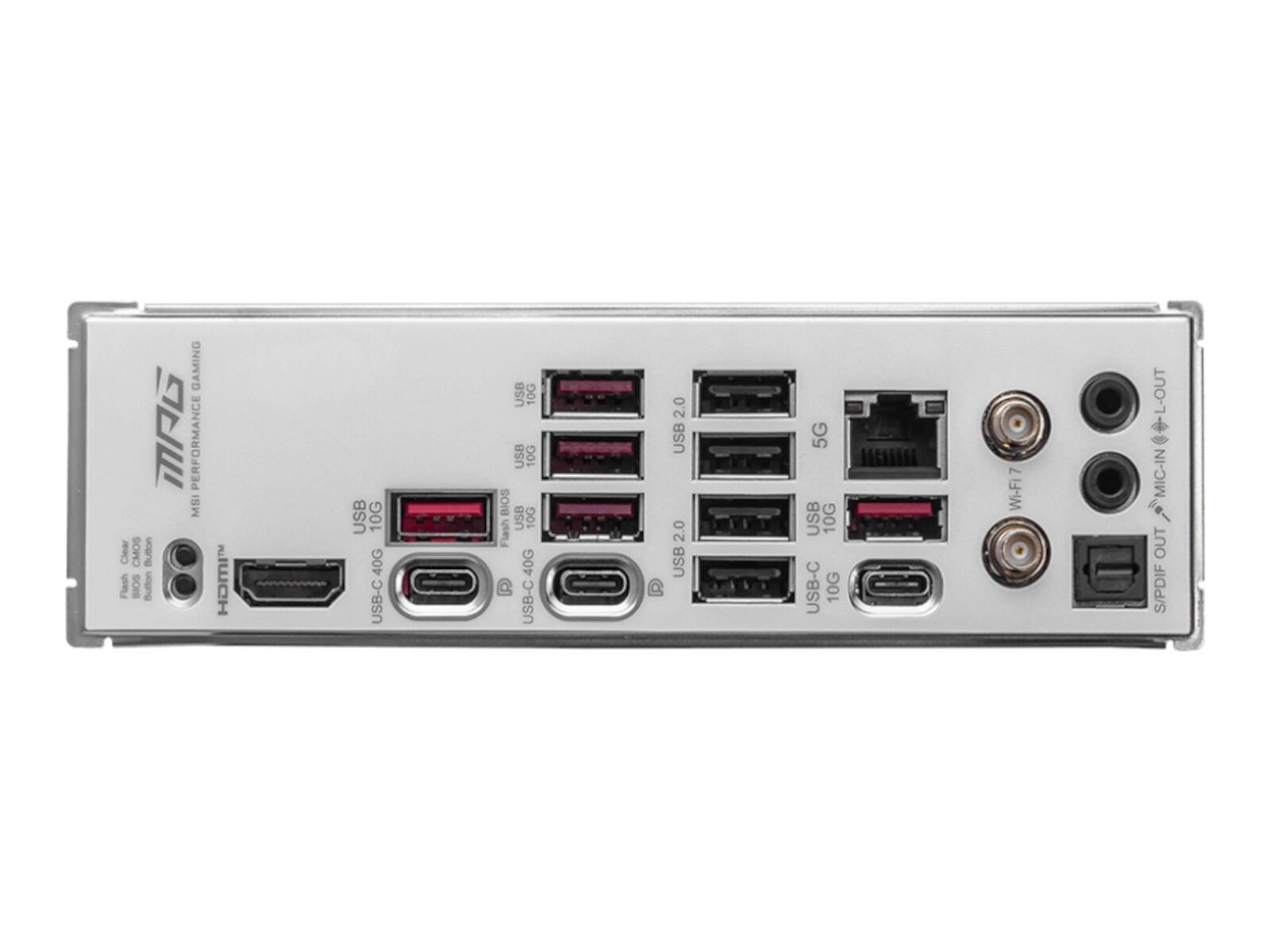

- USB:
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 4x USB 5Gbps Type A (Front)
- 5x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Front)
- 2x USB 40Gbps Type C (Rear)
- Internal IO:
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 6x System Fan
- 1x EZ Conn-header (JAF_2)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 20Gbps Type C ports
- Audio:
- Realtek® ALC04080 Codec
- 7.1-Channel USB High-Performance Audio
- Supports S/PDIF output
- HDMI: 1
- Type-C DisplayPort: 2
- Form Factor: ATX
- Operating System: Support for Windows® 11 64-bit
- Dimensions: 24.38 x 30.48 cm

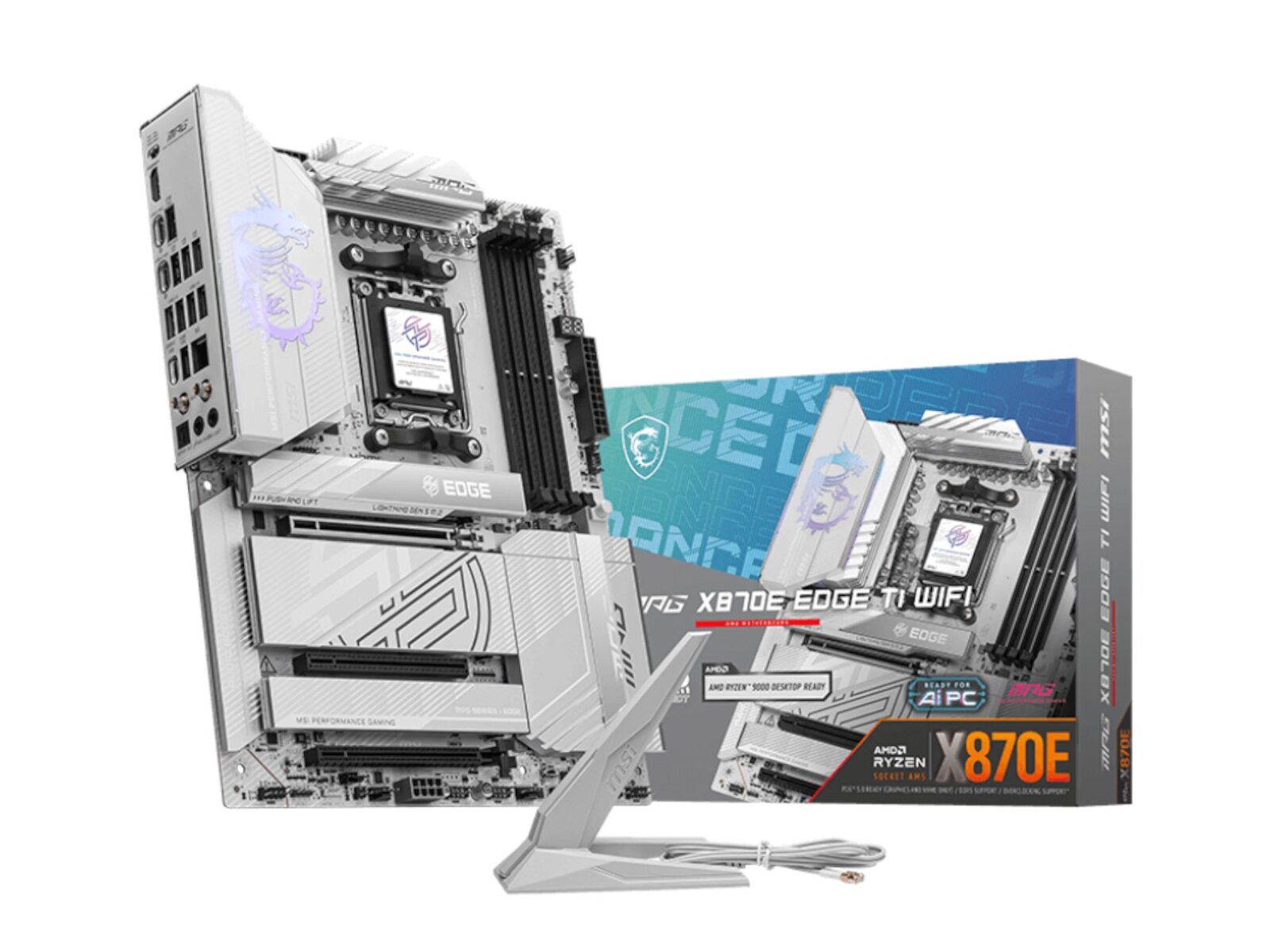

WHAT’S IN THE BOX:
- MSI MPG X870E EDGE TI WIFI AM5 ATX DDR5 Gaming Motherboard – White x1
- EZ Wi-Fi Antenna x1
- M.2 Plate Screw
- EZ M.2 Clip II Remover x1
- 1 to 3 EZ Conn-Cable (V2) x1
- USB Drive x1
- SATA cables x2
- EZ Front Panel Cable x1
- Quick Install Guide x1
