With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
Utilizing 3rd Gen Ryzen processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
FEATURES:
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX 5800)
- Sextuple M.2 Connectors: Onboard 6x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. The Industry-leading design maximizes bandwidth to fully utilize high-end storage devices, provides multiple configurations for demanding gamers and power users.
- Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer memory signal to explore the boundaries of memory overclocking, deliver world-class memory performance.
- Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
- Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate to ensure extreme performance with low temp.
- 2.5G LAN Network Solution: Onboard 2.5G LAN with LAN manager delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
- Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
SPECIFICATIONS:
- CPU (Max Support): RYZEN 9
- Socket: AM4
- Chipset: AMD X570 Chipset
- DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100/ 5300+Mhz(MAX 5800) by JEDEC and A-XMP OC MODE
- Memory Channel: Dual
- DIMM Slots: 2
- Max Memory (GB): 64
- PCI-E x16: 2
- SATAIII: 6
- M.2 Slot: 6
- RAID: 0/1/10
- LAN: Realtek® 8125B 2.5G LAN
- USB 3.2 Ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)

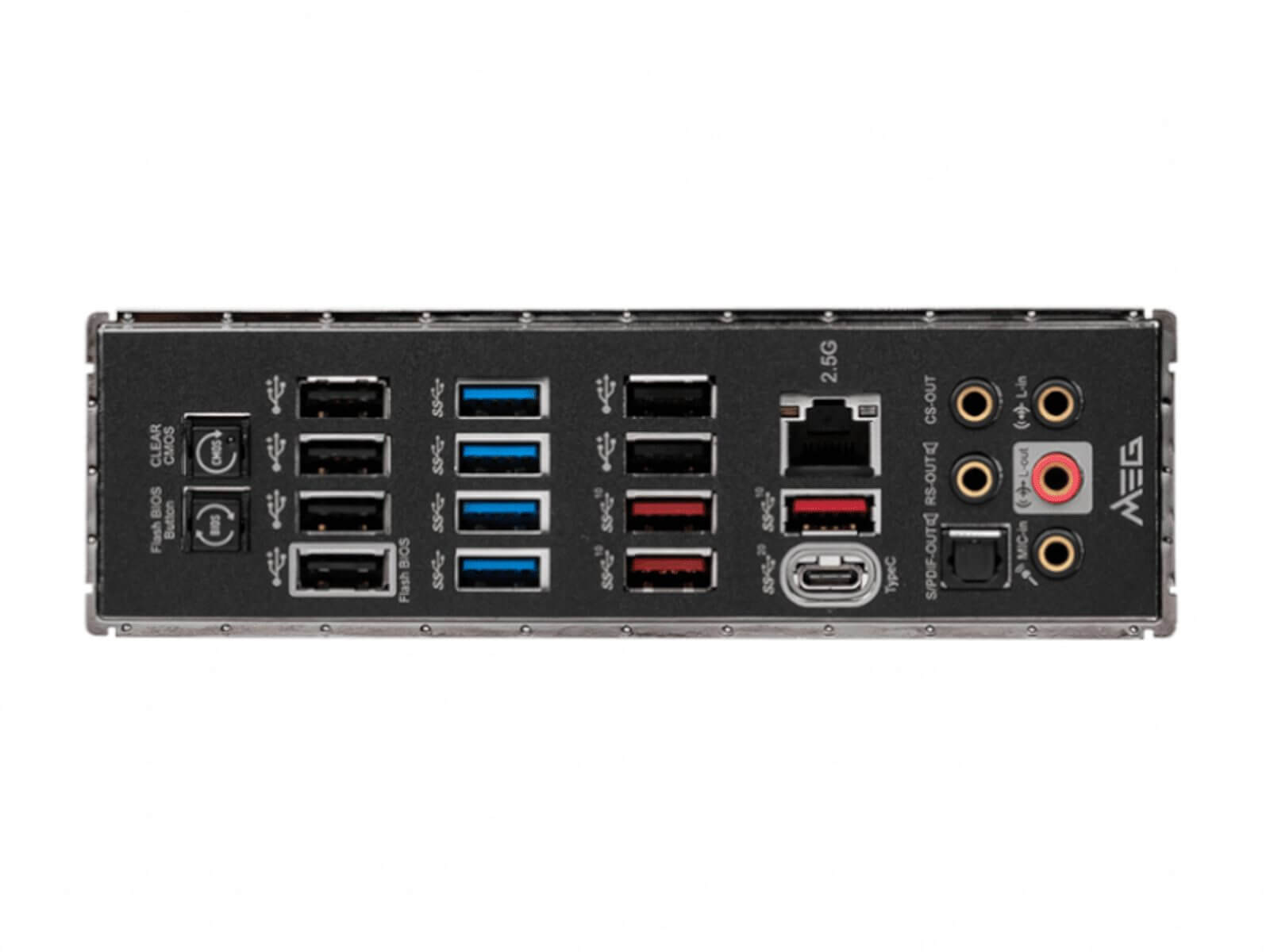

- USB 3.2 Ports (Rear): 1(Gen 2×2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
- USB 2.0 Ports (Front): 4
- USB 2.0 Ports (Rear): 6
- Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
- DirectX: 12
- Form Factor: ATX
- Crossfire Support: Yes
- Operating System: Support for Windows® 10 64-bit
