Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio. The MSI GAMING SLIM series is a thinner variant of the GAMING series while maintaining high-performance capabilities and aggressive looks.
Its lightened design is made for those building a gaming rig with space constraints. Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control. Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

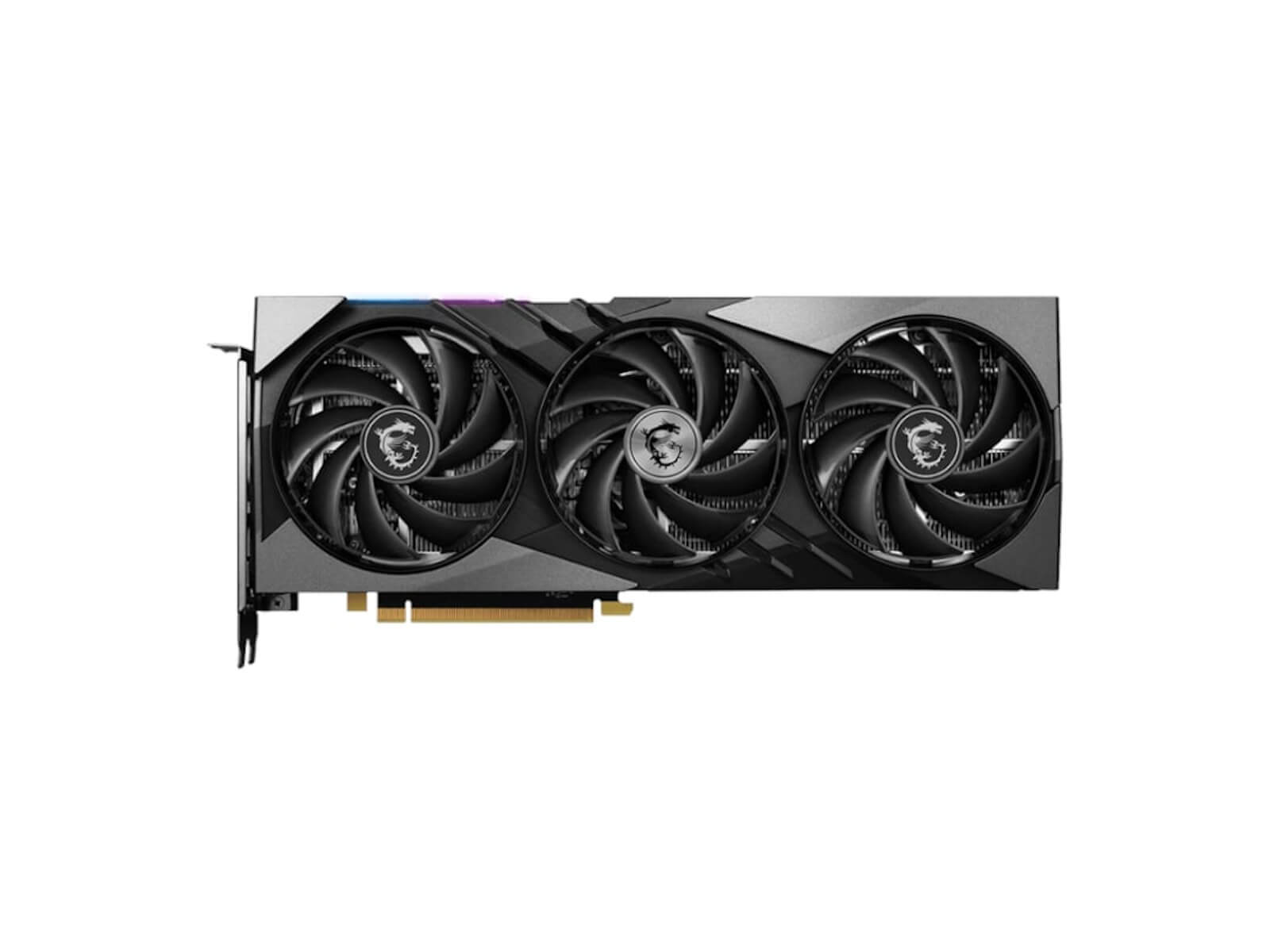

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
The heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Core pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touches the GPU baseplate and spreads the heat along the full length of the heatsink. Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
FEATURES:
- Boost Clock / 2670 MHz
- Memory Speed / 18Gbps
- 8GB GDDR6

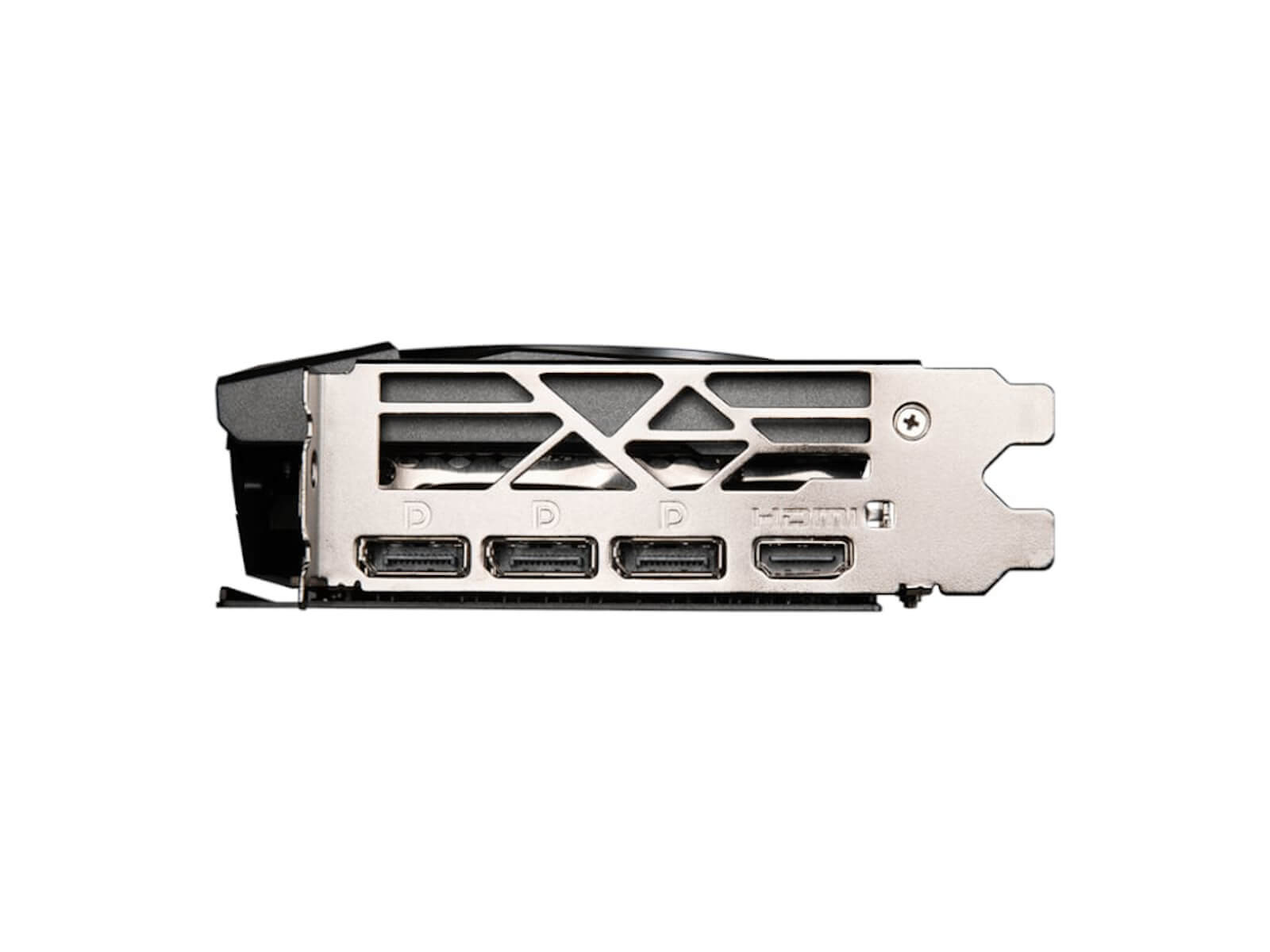

- DisplayPort x 3 / HDMI x 1
- Tri FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-machined heat pipes ensure max contact with the GPU and spread heat along the full length of the heatsink.
SPECIFICATIONS:
- Graphics Processing Unit: NVIDIA® GeForce RTX™ 4060 Ti
- Interface: PCI Express® Gen 4 x 8
- Core Clocks: Extreme Performance: 2685 MHz (MSI Center), Boost: 2670 MHz (Gaming and Silent Mode)
- CUDA® Cores: 4352 Units
- Memory Speed: 18Gbps
- Memory: 8GB GDDR6
- Memory Bus: 128-bit
- Output: DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
- HDCP Support: Yes
- Power Consumption: 160 W
- Power Connections: 8-pin x1
- Recommended PSU: 550 W
- DirectX Version Support: 12 Ultimate
- OpenGL Version Support: 4.6
- Maximum Displays: 4
- G-Sync® Technology: Yes
- Digital Maximum Resolution: 7680 x 4320
- Product Dimensions: 30.7 x 12.5 x 4.6 cm
- Product Weight: 895g
WHAT’S IN THE BOX:

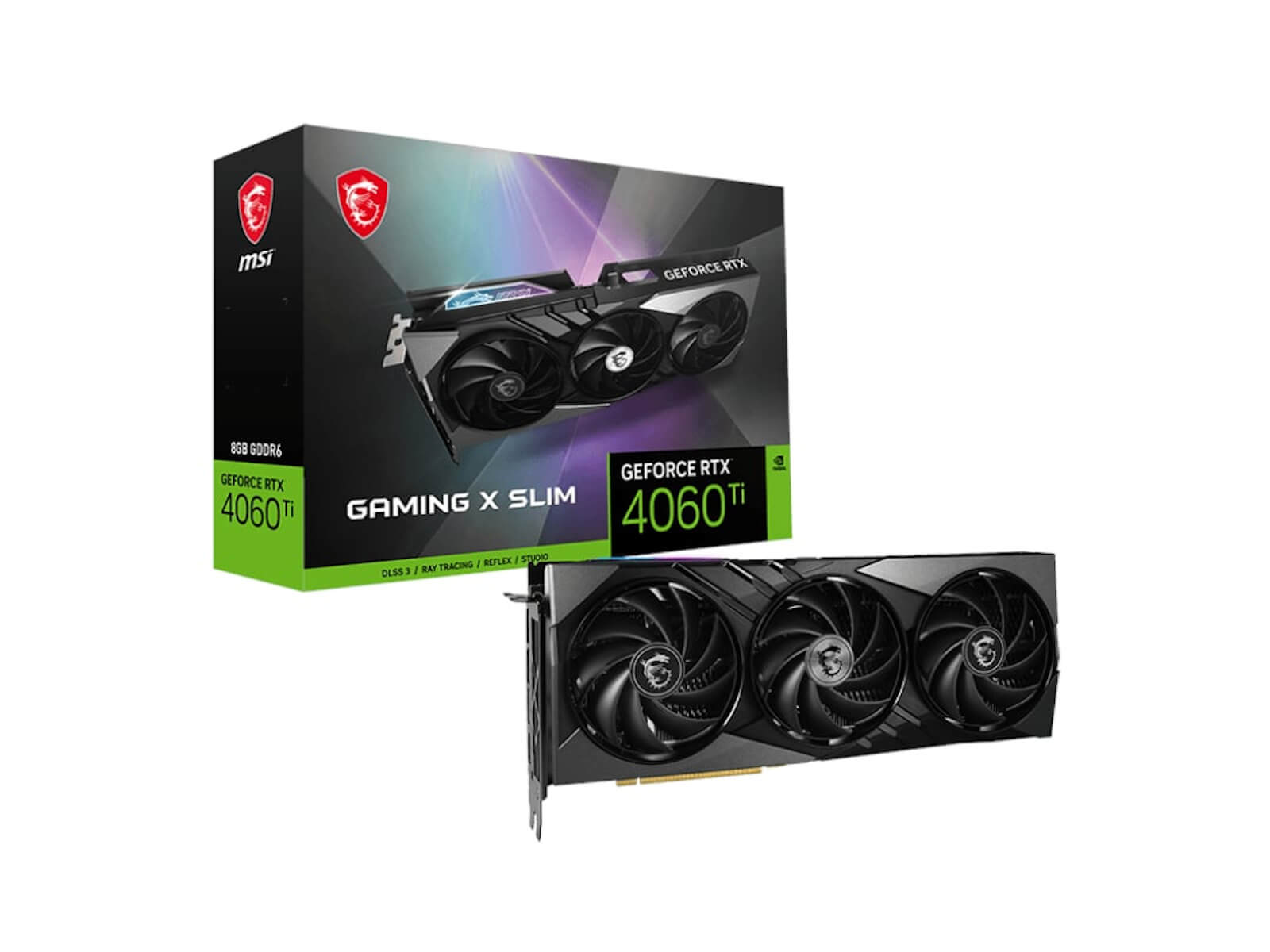

- MSI GeForce RTX™ 4060 Ti GAMING X SLIM 8G Graphics Card x1
