B650M GAMING WIFI is designed with tonnes of connectivity, flexible tools, and a convenient Wi-Fi solution with a DDR5 memory version for gamers who want it all.
This is a huge step in DDR performance enhancement with the latest DDR5 memory. With a dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING WIFI is ready to deliver world-class memory performance. The advanced SMT (Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. With exclusive Memory Boost technology, MSI motherboards deliver a clean and pure high-frequency DDR5 signal.
Core Boost technology utilises MSI’s premium layout and optimised power design to deliver CPU current with increased speed and precision. The software supports multi-core CPUs and optimises CPU overclocking. MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies. MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies
FEATURES:
- Supports AMD RyzenTM 8000 and 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+ (OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
- Steel Armour: Protecting VGA cards against bending and EMI for better performance, stability and strength
- AUDIO Boom: Reward your ears with studio-grade sound quality for the most immersive gaming experience
- High-Quality PCB: 6-layer PCB made by 2 oz. thickened copper
SPECIFICATIONS:
- Socket: AM5
- CPU Support: Supports AMD RyzenTM 8000/7000 Series Desktop Processors
- Chipset: AMD B650
- DDR5 Memory: DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6400+ MHz
- Memory Channel: Dual-Channel DDR5
- DIMM Slots: 2
- Max Memory (GB): 128GB
- PCI-E x16: 1
- PCI-E x1: 2
- SATA 6G: 4
- M.2 Slot: 2
- RAID: 0/1/10
- LAN: Realtek® 8125BG 2.5G LAN
- TPM pin header (Support TPM 2.0): 1
- USB 2.0 (Rear): 2
- USB 2.0 (Front): 4
- USB 5Gbps Type A (Rear): 3
- USB 5Gbps Type C (Rear): 1
- USB 5Gbps Type A (Front): 4
- Audio ports (Rear): 7.1-Channel High Definition Audio, Realtek® RTL8125BG 2.5Gbps LAN
- Wifi: AMD Wi-Fi 6E
- Bluetooth: 5.3
- HDMI: 1
- DisplayPort: 1
- DirectX: 12
- Form Factor: mATX
- Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit
WHAT’S IN THE BOX?

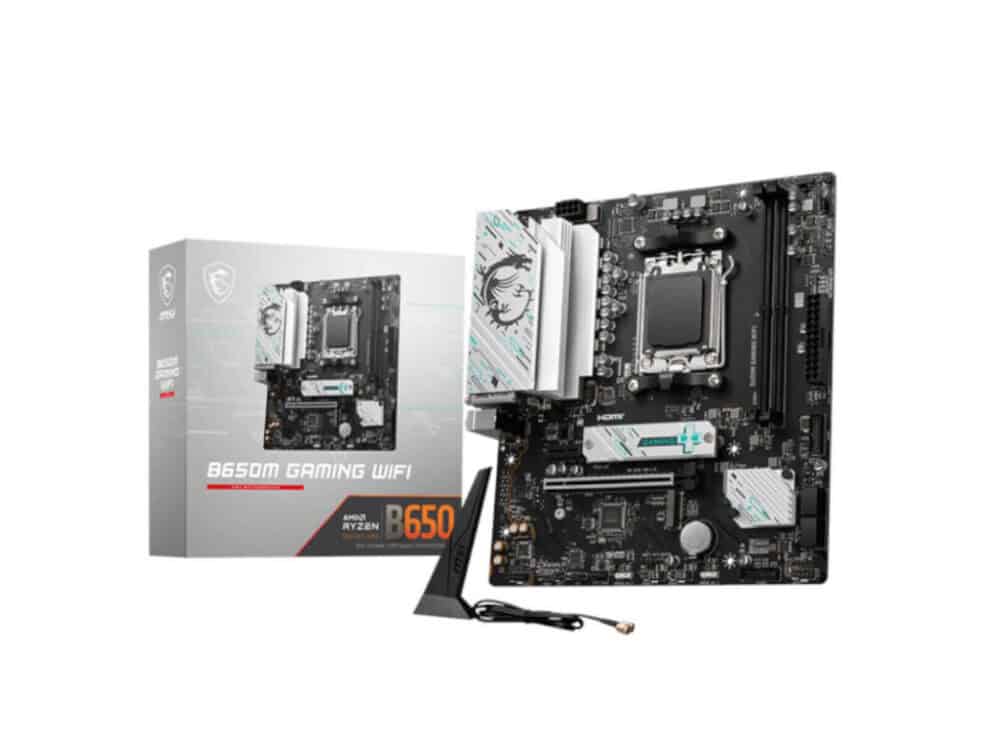

- MSI B650M Gaming Wifi AMD AM5 mATX Gaming Motherboard, Black x1
- I/O Shield x1
- SATA Cable x1
- EZ M.2 Clips x1
- Wifi Antenna x1
- Quick Install Guide x1
