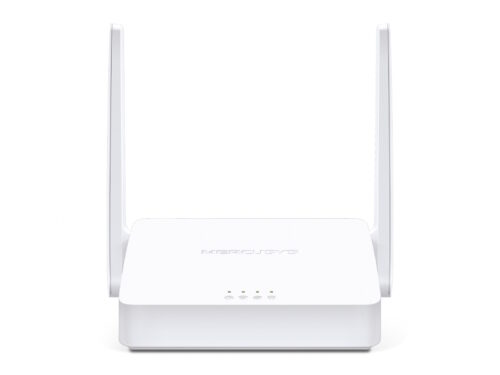

Mercusys 300Mbps Wireless Router

Wireless
Wireless Standards: IEEE 802.11b/g/n
Frequency : 2.4-2.4835GHz

Signal Rate

• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER
  Transmission Power: <20dBm (EIRP)
  Wireless Security: WPA-PSK / WPA2-PSK
  Wireless Functions: Enable/Disable Wireless Radio, WDS Bridging

Software
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management: Access Control, Local Management, Remote Management
DHCP: Server
Port Forwarding: Virtual Server, UPnP, DMZ
Firewall Security: IP and MAC Address Binding
Protocols: IPv4, IPv6
Guest Network: 2.4GHz Guest Network

Hardware
Dimensions (W X D X H): 114 mm × 94 mm × 26 mm
Button: Reset Button
External Power Supply: 5V/0.6A
Antenna Type: 2x 5dBi

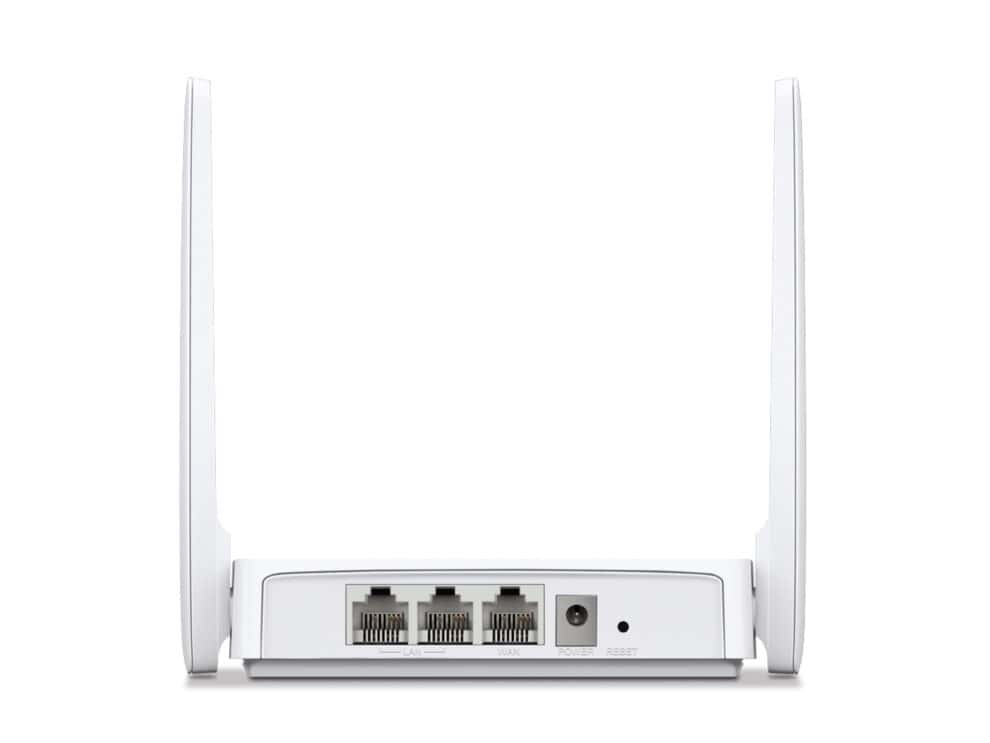

Ethernet Ports: 2x 10/100Mbps LAN Ports &
1x 10/100Mbps
