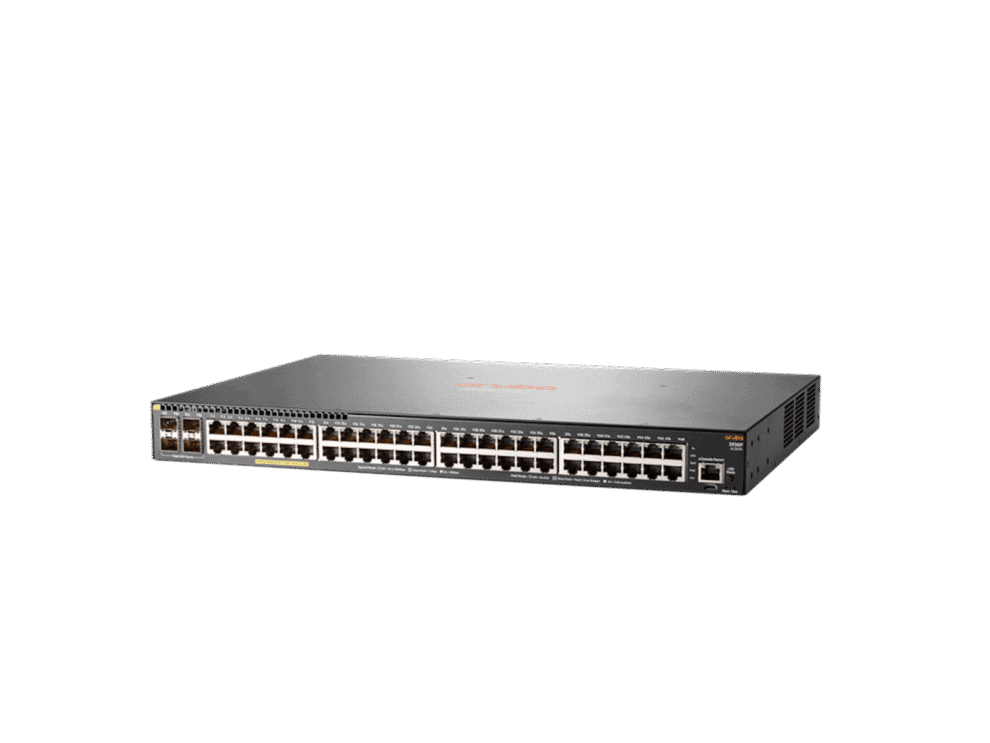

DifferentiatorPopular Aruba 52-port Gig access switch with 370 Watts PoE+ power.
This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Power consumption459 W (maximum)
Heat dissipation293 BTU/hr (309.1 kJ/hr)
Input voltage100 – 127 / 200 – 240 VAC, rated
Ports(48) RJ-45 autosensing 10/100/1000 PoE+ ports
(4) SFP
Latency1000 Mb Latency: < 3.8 µs
Switching capacity104 Gbps
Throughputup to 77.4 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC
PoE capability370 W PoE+
Management featuresAruba AirWave
Central Network Management
IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
Weight4.46 kg (9.83 lb)
